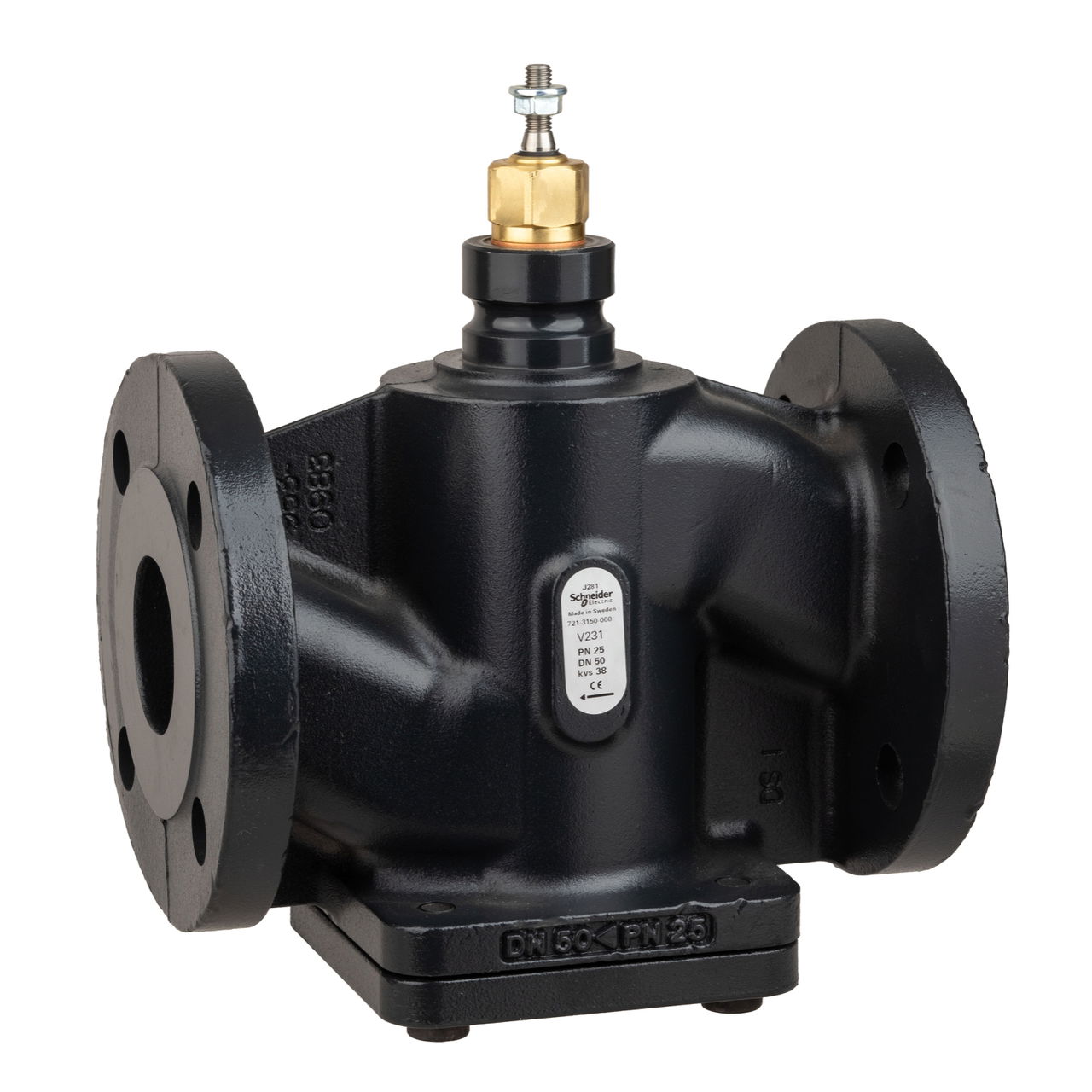

Valve 2 Way Flange V232/50/38

Link copied
SKU
EAN
GTIN
MPN
The V232 is a high pressure (PN25) 2-way balanced, flanged globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 200:1 and is of a self cleaning design for reliable operation. Valve size: DN50, Rp thread, Flow capacity, Kvs: 38 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 800 Kpa. EPDM seals provide a working temperature range of -20 °C to + 150 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, Module A of the PED (Pressure Equipment Directive). PN25 flanges.

Voltimum+ Loyalty Programme Loyalty points: 231

Price: £ 1,385.00 Excl. VAT

Categories

Specifications

EFDE0006 -
EFDE0007 -
EFDE0048 -
EFDE0049 -
Kv value
Kvs value 38
Axle height -
Connection 1 Flange
Stroke length 20 mm
Material quality Other
Control ratio (Svo) -
Suitable for cooling yes
Automatic flow control no
Length of connection 2 -
Flange compression class PN 25
Article compression class PN 25
Contour code connection 2 -
With flow measuring point -
With coupling connection 1 -
Working length connection 1 -
Nominal diameter connection 1 2 inch (50)
Medium temperature (continuous)
Outer pipe diameter connection 2 -

Documents

Declaration of Conformity (Sustainability)

7213250000 REACh Regulation

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

7213250000 EU RoHS Directive

Open
