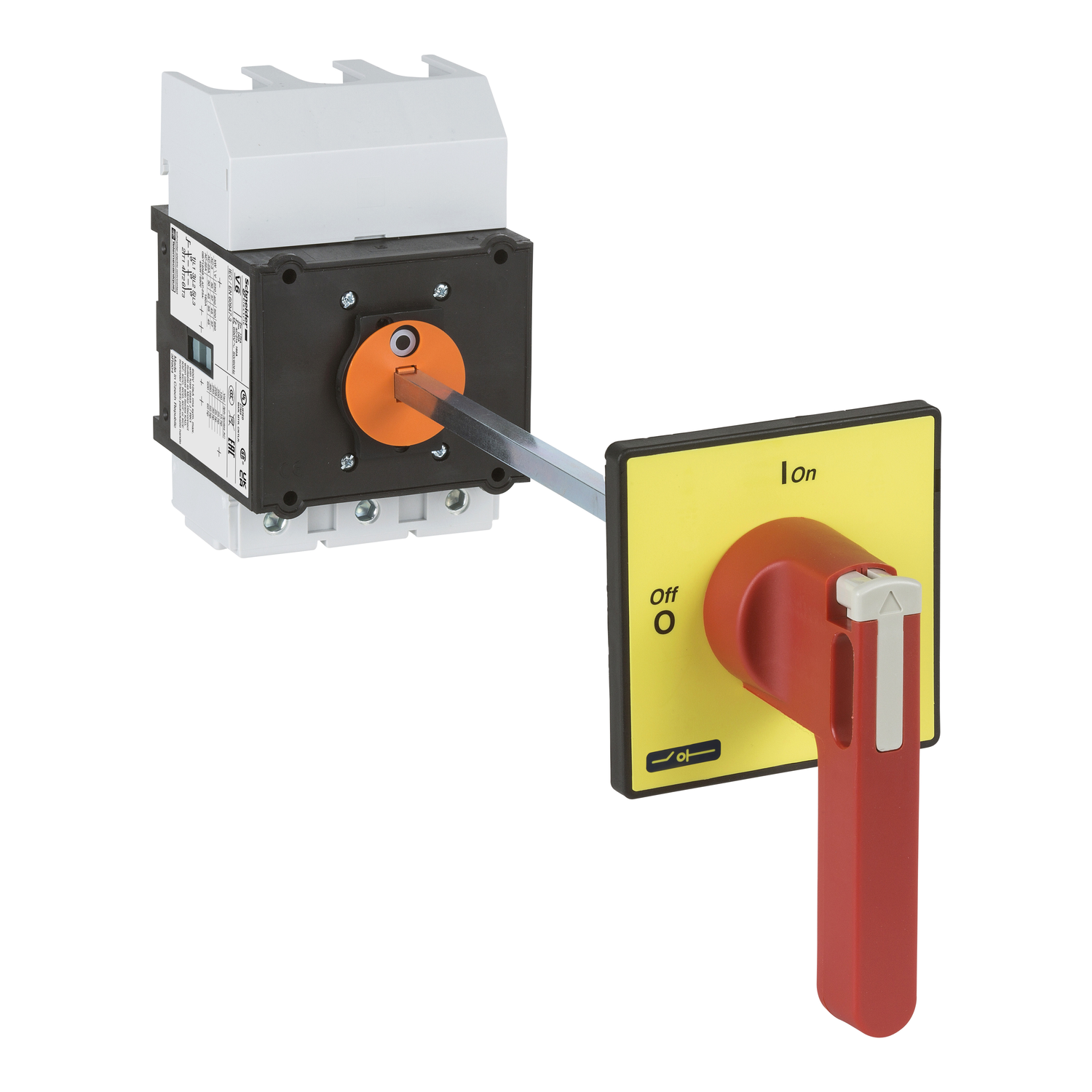

TeSys Vario - emergency stop switch disconnector - 125 A - back of enclosure

Link copied
SKU
EAN
GTIN
MPN

TeSys Vario - emergency stop switch disconnector - 125 A - back of enclosure by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £147.02 to £255.65 excl. VAT. Voltimum+ members earn 29 points per unit.

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 125A/690V, for motor switching applications up to 37kW@400V AC-23. Complete unit composed of a switch body V5, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Voltimum+ Loyalty Programme Loyalty points: 29

Price range: £ 147.02 - £ 255.65 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Industrial Switchgear

ETIM group

Low-voltage industrial components

Specifications

Depth -
Width 90 mm
Height 125 mm
Interlockable yes
Number of poles 3
Number of switches 1
Device construction Built-in device fixed built-in technique
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V -
Voltage release optional no
With pre-assembled cabling no
Suitable for floor mounting no
Max. rated operation voltage Ue AC 690 V
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP65
Rated short-time withstand current lcw 1.5 kA
Version as maintenance-/service switch no
Rated permanent current at AC-23, 400 V 68.5 A
Suitable for distribution board installation no
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
