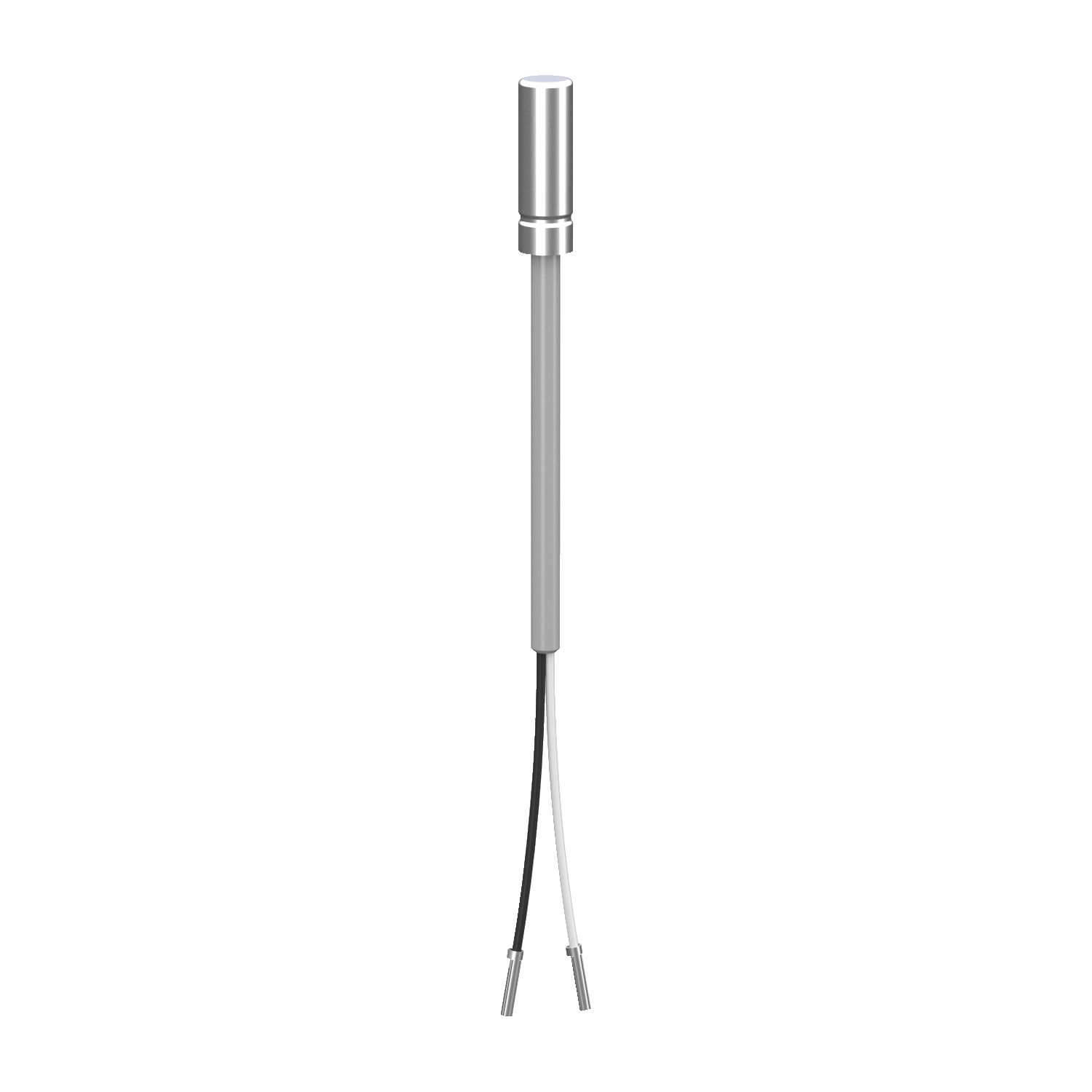

NTC 1,5m IP68 6x20 -50+110°C Grey

Link copied
SKU
EAN
GTIN
MPN

NTC 1,5m IP68 6x20 -50+110°C Grey by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including BPX Electro Mechanical Co. Ltd, and currently in stock. Trade price £4.00 excl. VAT. Voltimum+ members earn 1 point per unit.

"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 50 to 110 degrees Celsius." "This temperature probe has an IP 68 rate and is equipped with a 1.5-meter two-conductor cable." "It is an NTC probe." "It is furnished with 2-conductor cable for controller side for electrical connection." "The cable measures 1.5m." "It measures 20mm long, 6mm wide, and weighs 0.144/kg." "It is made to control temperature in HVAC or Pumping Applications." "It is sold in a 8-piece package." "It has a clip-on fixing mode." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 4.00 Excl. VAT

Specifications

Wireless no
Bluetooth no
Tolerance 1 %
Technology Other
Sensor type NTC, 10K
Cable length 1.5 m
UV resistant yes
With display no
Housing depth -
Insert length 20 mm
Housing colour Black
Explosion-proof no
Type of display -
Material element Other
Wi-Fi-compatible no
Measurement of VOC no
Ambient temperature
Standby push button no
Enthalpy measurement no
Suitable for liquids yes
Type of power supply None
With mounting material no
IFTTT support available no
Offset setting possible no
Rated supply voltage DC
Enthalpy measuring range
Degree of protection (IP) IP68
Number of measuring ranges -
Suitable for tube mounting yes
Error registration possible no
Temperature measuring range
Compatible with Amazon Alexa no
Compatible with Apple HomeKit no
Suitable for ceiling mounting no
NFC (Near Field Communication) no
Supporting protocol for BACnet no
Passive temperature measurement yes
With reverse polarity protection no
Number of output ranges 0 V ... 5 V -
Measurement of absolute air humidity no
Number of output ranges 0 V ... 10 V -
Measuring range absolute air humidity
Max. ambient humidity (non-condensing) -
Number of output ranges 4 mA ... 20 mA -
Scope of application, flow speed medium
