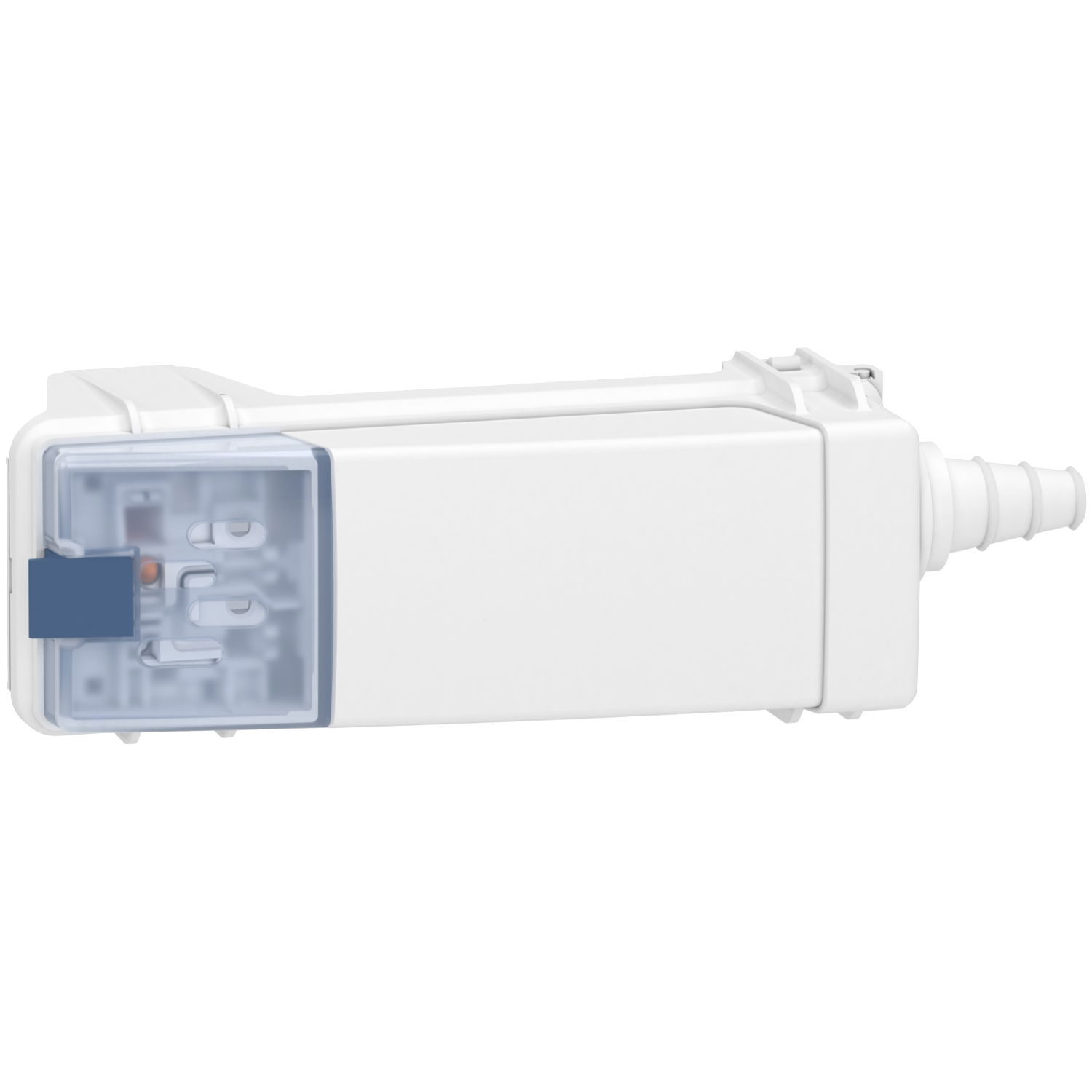

Canalis - tap-off unit - 16A - phase selection - L+N+PE

Link copied
SKU
EAN
GTIN
MPN

Canalis - tap-off unit - 16A - phase selection - L+N+PE by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £30.61 excl. VAT. Voltimum+ members earn 4 points per unit.

This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Polarity is L+N+PE, with one mobile stud and a fixed neutral. The lock is in blue colour. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Voltimum+ Loyalty Programme Loyalty points: 4

Price: £ 30.61 Excl. VAT

Specifications

Width 33 mm
Colour White
Height 53 mm
Length 168 mm
Protection None
RAL-number 9001
With locking yes
Branch off type Pipe in-lead
Phase selection yes
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of NEMA socket outlets 0
Number of conductors (without earthing) 2

Documents

Declaration of Conformity (Sustainability)

KBC16DCB21 REACh Regulation

Open

Instruction sheet

KBC16DCF../DCB.. - 16A TAP-OFF UNIT - Instruction Sheet

Open

Product data sheet

Open

Brochure

Schneider Electric Busway mini Brochure

Open

Catalog

Catalogue Canalis KB 25 and 40 A

Open

Catalog

Catalogue Canalis KB 25 and 40 A

Open

Declaration of Conformity (Sustainability)

KBC16DCB21 EU RoHS Directive

Open

Declaration of conformity

Canalis KBC / UK Declaration of conformity / BS EN 61439-6

Open
