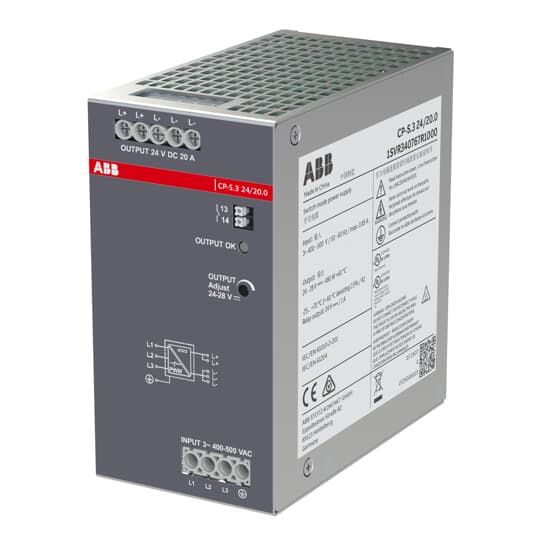

CP-S.3 24/20.0 Power supply In:3x400-500VAC Out:DC 24V/20A

Link copied
SKU
EAN
GTIN
MPN
The CP-S.3 24/20.0 is a power supply from the new generation CP-S.3 range. The primary switch mode power supply offers a wide range input of 3 ~ 320 ... 575 V AC, rated input voltage is 3 ~ 400 ... 500 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.

Voltimum+ Loyalty Programme Loyalty points: 34

Price: £ 335.72 Excl. VAT

Specifications

Depth 126.8
Width 68
Height 129.4
Stabilized yes
Power output 240
Built-in width 68
Built-in height 129.4
Modular version no
Short-circuit-proof yes
Max. output current 2 0
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Nominal value output current 2 0
Nominal value output voltage 1 24
Nominal value output voltage 3 0
Performance level according to EN ISO 13849-1 None

Documents

Deeplink product page

Open

Deeplink REACH

1SVD982001-4501_en_C_REACh Info for Power Supplies.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

1SVC340560M0000_B.pdf

Open

Product data sheet

Open

Declaration RoHS

1SVD982001-4401_ROHS_Power_Supplies_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD982044_deenfrit_A_EU Declaration of Conformity - CP-S.3 & CP-S.DC Power supply units.pdf

Open
