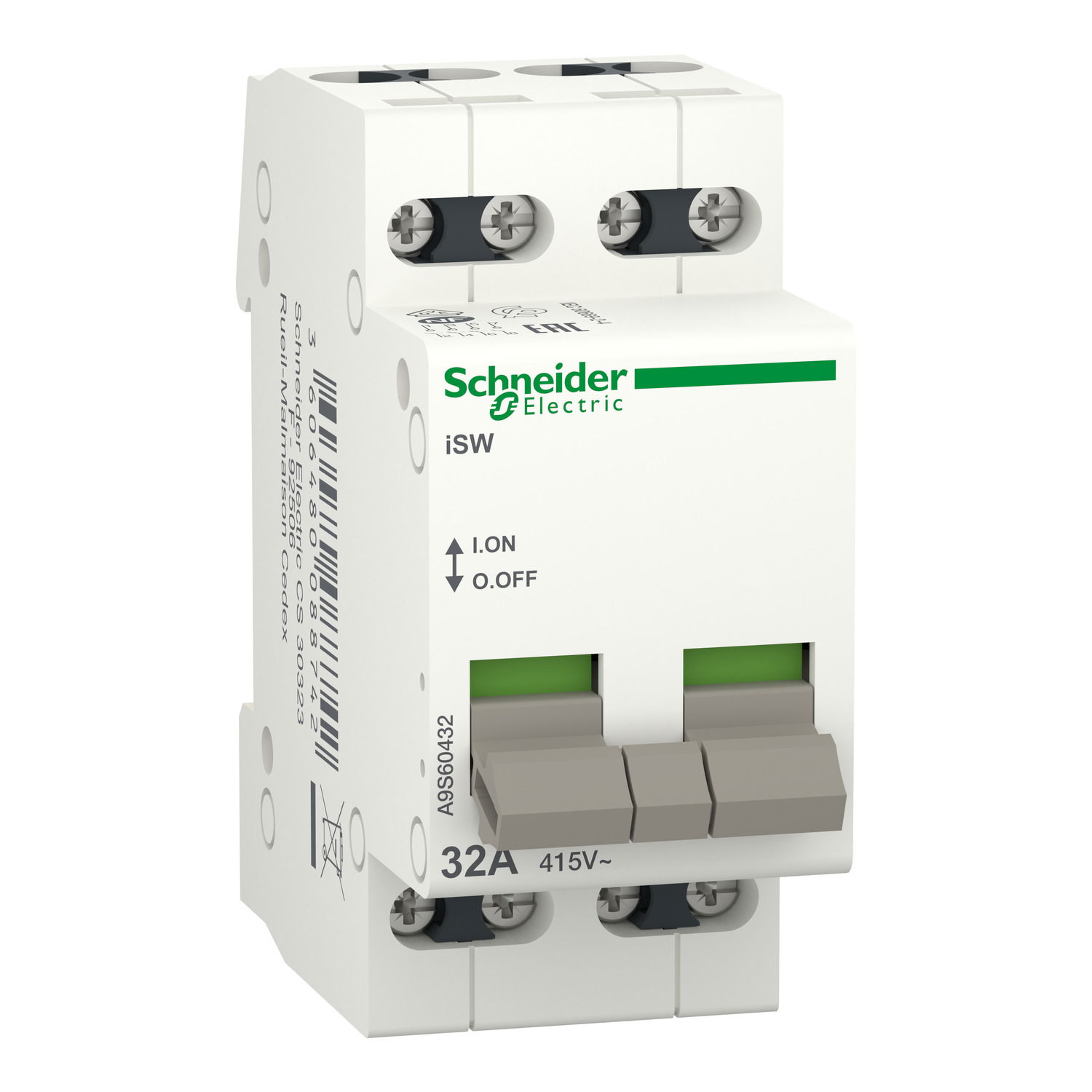

Switch Acti9 iSW - 4 poles - 32 A - 415V
Switch Acti9 iSW - 4 poles - 32 A - 415V
Switch Acti9 iSW - 4 poles - 32 A - 415V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £46.08 excl. VAT. Voltimum+ members earn 5 points per unit.
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
Product identifiers
SKU: A9S60432
EAN: 3606480088742
GTIN: 3606480088742
MPN: A9S60432
Loyalty points:
5
Price: £ 46.08 Excl. VAT
Specifications
| EFDE0032 | yes |
| Lamp type | - |
| Lamp socket | - |
| Voltage type | AC |
| Rated current | 32 A |
| Rated voltage | 415 V |
| Built-in depth | 75.5 mm |
| Colour calotte | White |
