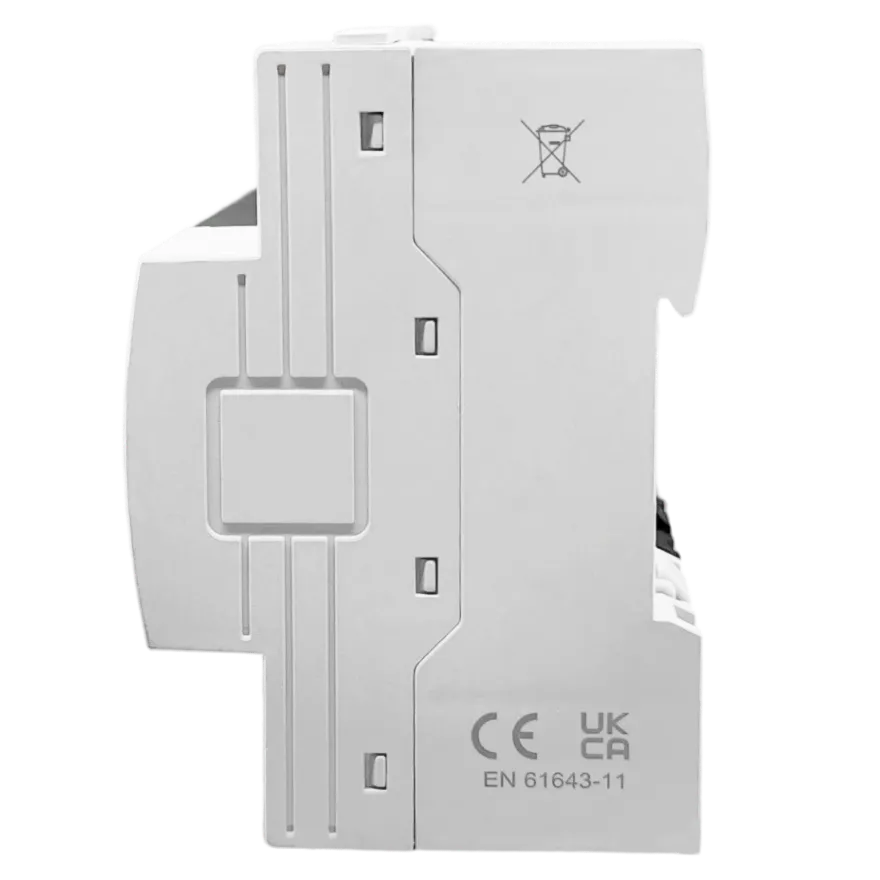

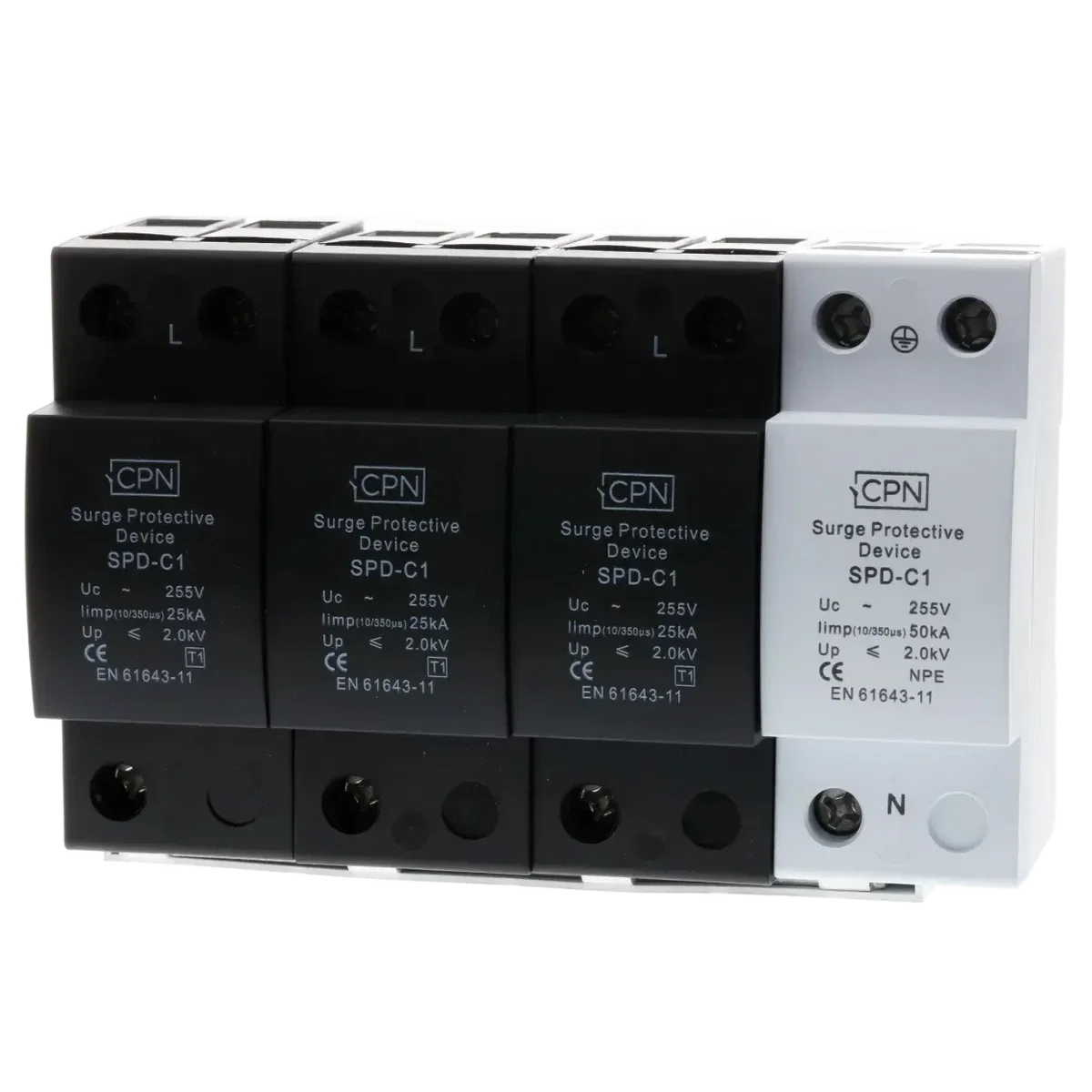

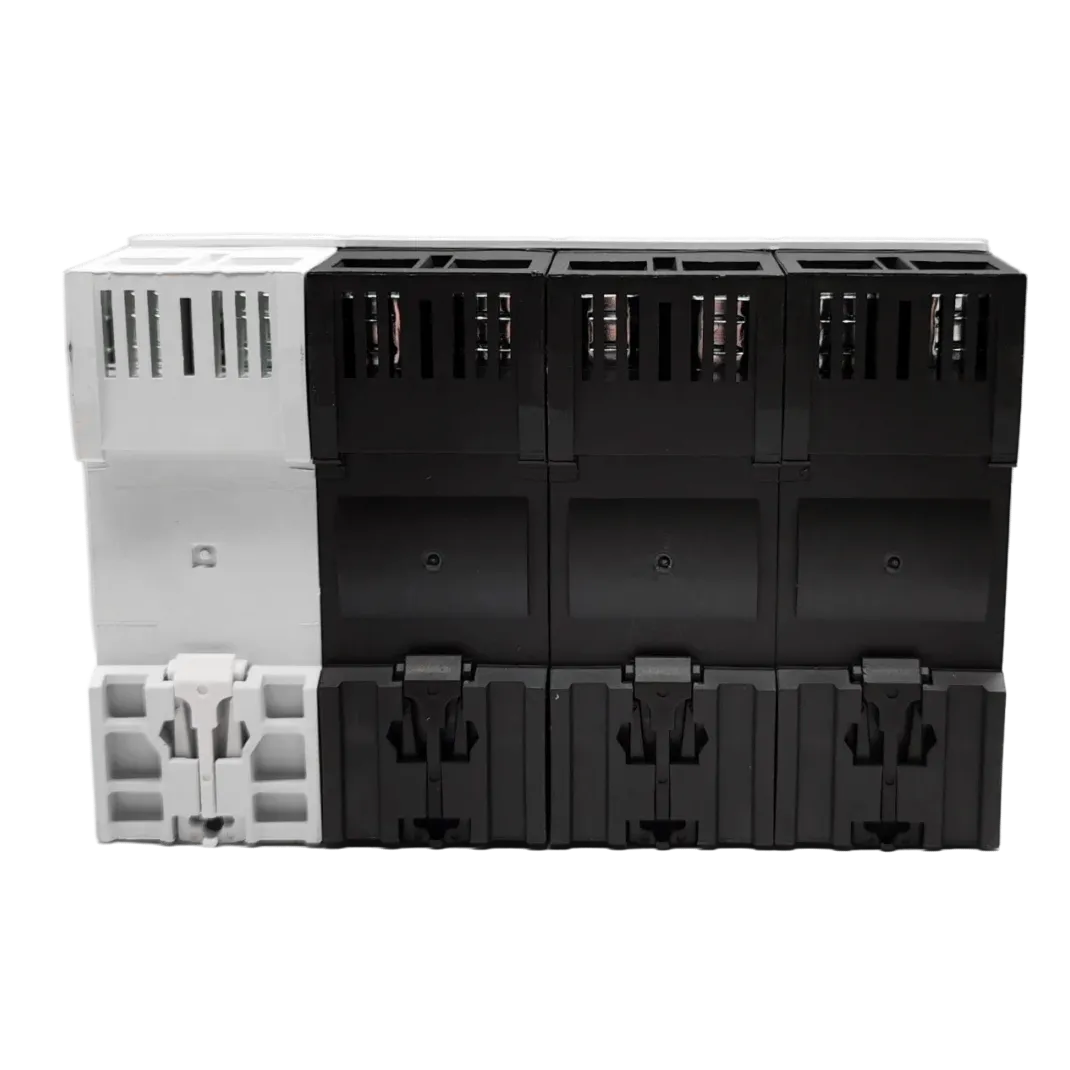

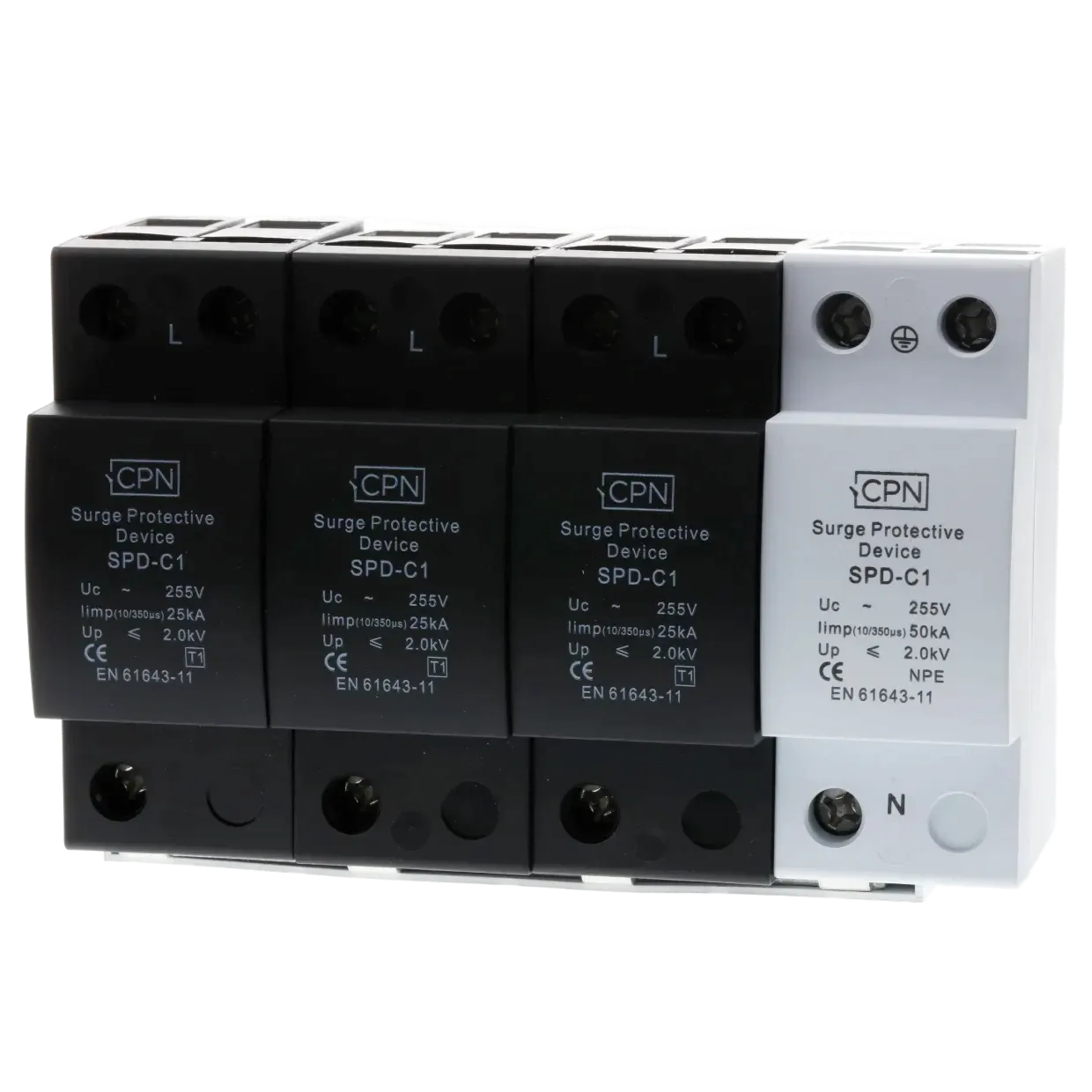

3 Phase, Type 1, Surge Arrester 25kA, 10/350s wave.
3 Phase, Type 1, Surge Arrester 25kA, 10/350s wave.
3 Phase, Type 1, Surge Arrester 25kA, 10/350s wave. by CPN Cudis is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £313.14 excl. VAT. Voltimum+ members earn 482 points per unit.
> For installation at the supply origin or in incoming
power supply panels.
> Type 1 protective device available in both Single
Phase and Three Phase configurations.
> High arresting capacity up to 25kA (10/350s)
per pole.
> For protection of buildings with lightning
protection systems.
> Simple standard DIN rail mounting.
> Labelled connections.
> Usable in systems with lightning protection class 1 – 4.
> For use with TN-C-S, TN-S & TT earthing
arrangements.
Product identifiers
Loyalty points:
482
Price: £ 313.14 Excl. VAT
Specifications
Technical specifications
| Rating | 25kA |
