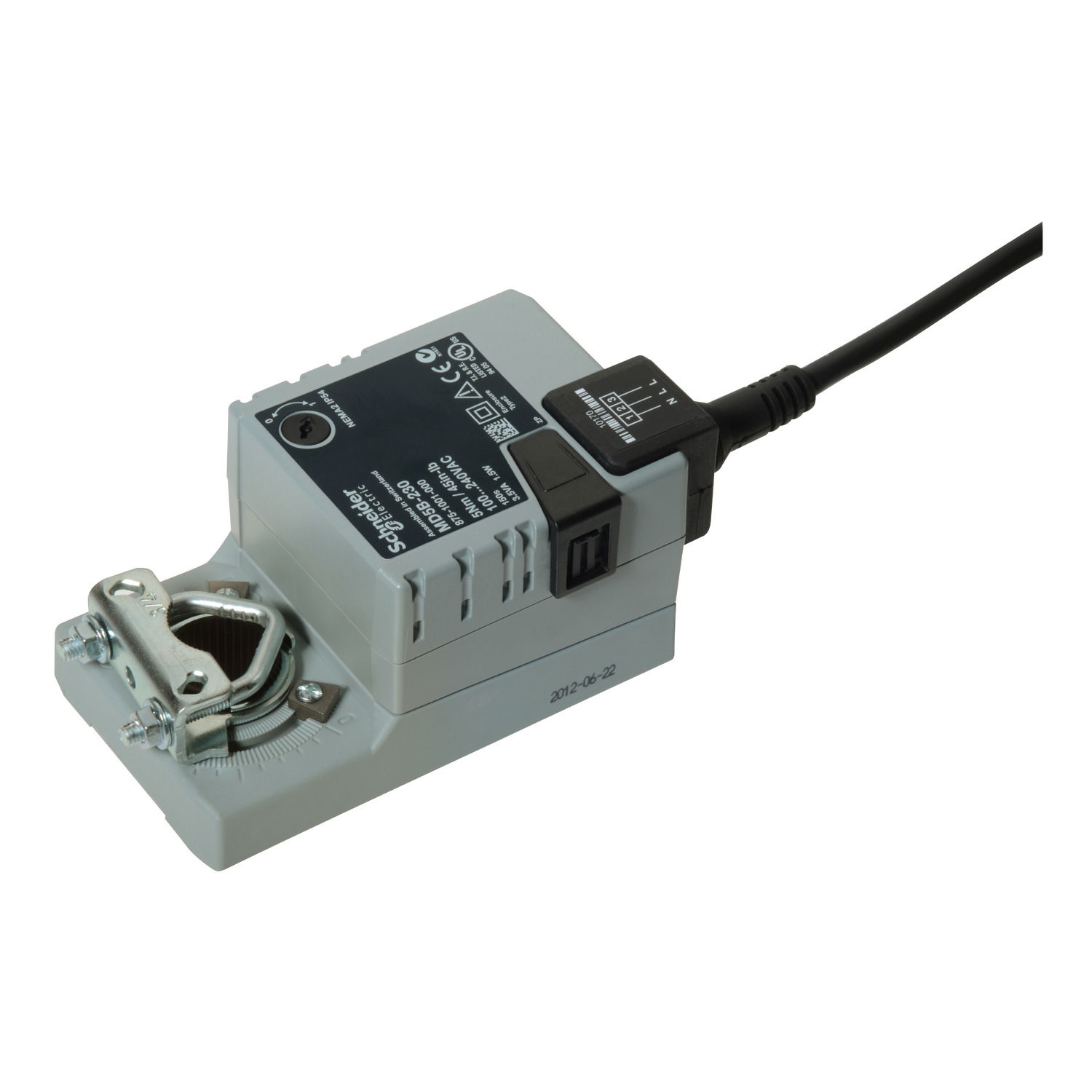

Actuator Damper MD5B-230-S
Actuator Damper MD5B-230-S
The MD5B is on/off damper actuator designed for operating air control dampers in ventillation and air conditioning systems for building services installations. The damper actuator can be used with mounting kits to drive selected Butterfly and Shoe valves. The actuator is maintenance free, with mechanical position indication. Supply voltage: 230 Vac +15%, -6%. Control signal: on/off. Torque: 5 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable by mechanical stops. Connection cable 1 m, 3 x .75 mm² (AW 18).
Product identifiers
SKU: 8751003000
EAN: 3606489659202
GTIN: 3606489659202
MPN: 8751003000
Loyalty points:
30
Price: £ 181.00 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 47 mm |
| Model | Rotating |
| Width | 114 mm |
| Height | 68 mm |
| Torque | 5 Nm |
| End contacts | None |
| Transmission | - |
| Stroke length | - |
