Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

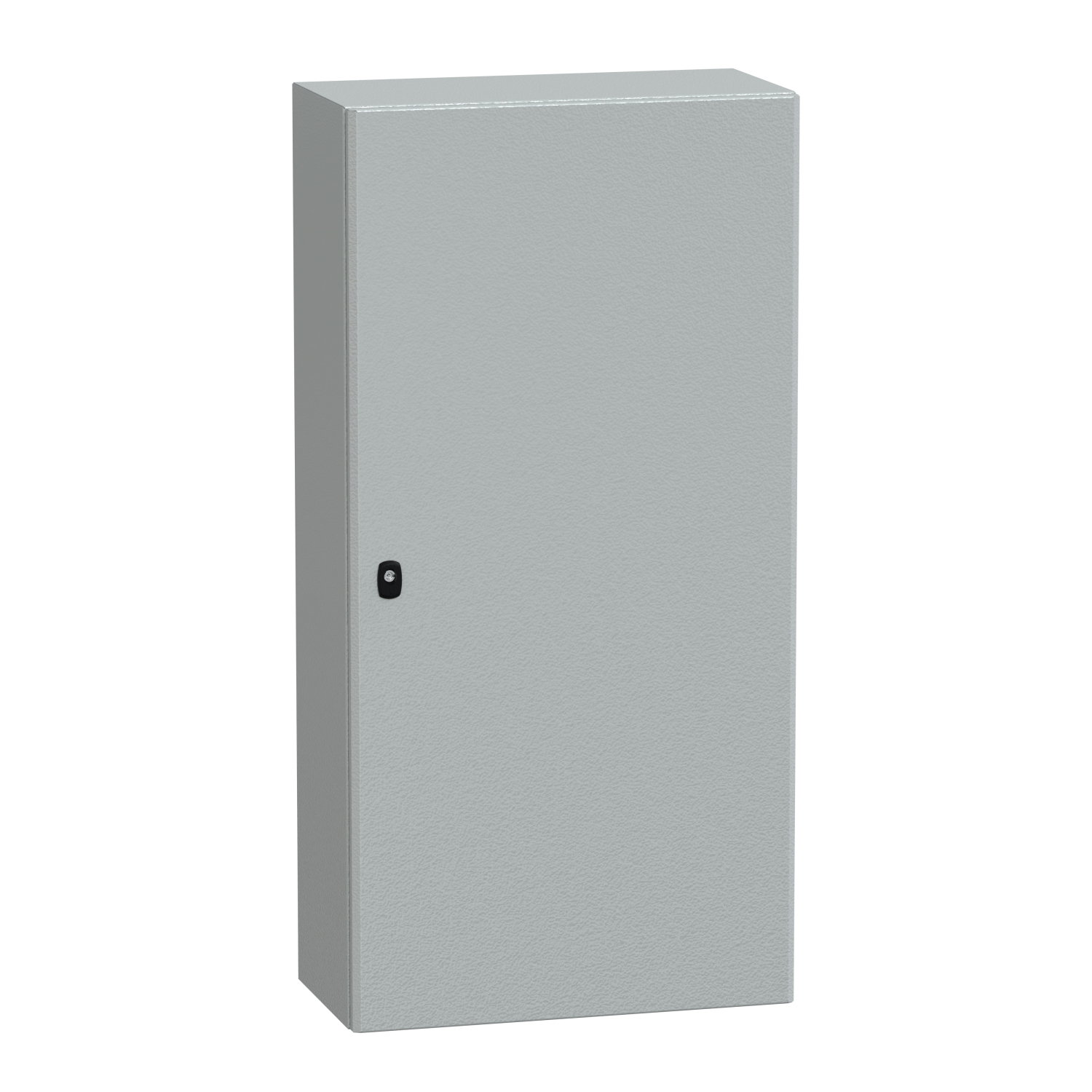

"Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1200x600x300mm, IP66, IK10"

"Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1200x600x300mm, IP66, IK10" by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £254.37 to £336.08 excl. VAT. Voltimum+ members earn 45 points per unit.

PanelSeT S3D wall mounted steel enclosure with plain door. 1200 x 600 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK10, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.

Product identifiers

SKU: NSYS3D12630
EAN: 3606480159947
GTIN: 3606480159947
MPN: NSYS3D12630

Voltimum+ Loyalty Programme Loyalty points: 45

Price range: £ 254.37 - £ 336.08 Excl. VAT

Categories

Enclosures & Panels Weatherproof Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 300 mm
Width 600 mm
Colour Grey
Height 1200 mm
Material Steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Other
Surface finishing Powder coating
With mounting plate no
With ventilation door no
Floor standing wall model yes
Suitable for wall built-in no
Degree of protection (NEMA) 4X
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
