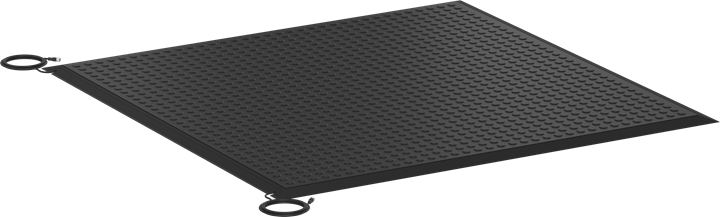

ASK-1T4.4-NP 1x1 Safety mat

Link copied
SKU
EAN
GTIN
MPN
ASK-1T4.4-NP 1x1 is a safety mat with cast-in ramp edge trim. The safeguarded area is 1000 x 1000 mm. Equipped with 2 x 5 m cables (2 x 0.34 mm2 - PU sheathed), each with a M8 male connector.

Voltimum+ Loyalty Programme Loyalty points: 646

Price: £ 1,384.64 Excl. VAT

Specifications

Model Safety mat
Width 1000
Colour Black
Height 10
Length 1000
Material Polyurethane (PUR)
With edge trim yes
Ambient temperature
Max. force per cm² -
Condition analysis system -
Max. operating voltage (Umax) 24
Number of contacts as change-over contact -
Required switching force with 80 mm diameter 150
Number of semiconductor outputs with signalling function -

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Safety_Mat_Product_Manual_(EN)_revJ_2TLC010047M0201.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Open
