Schneider Electric

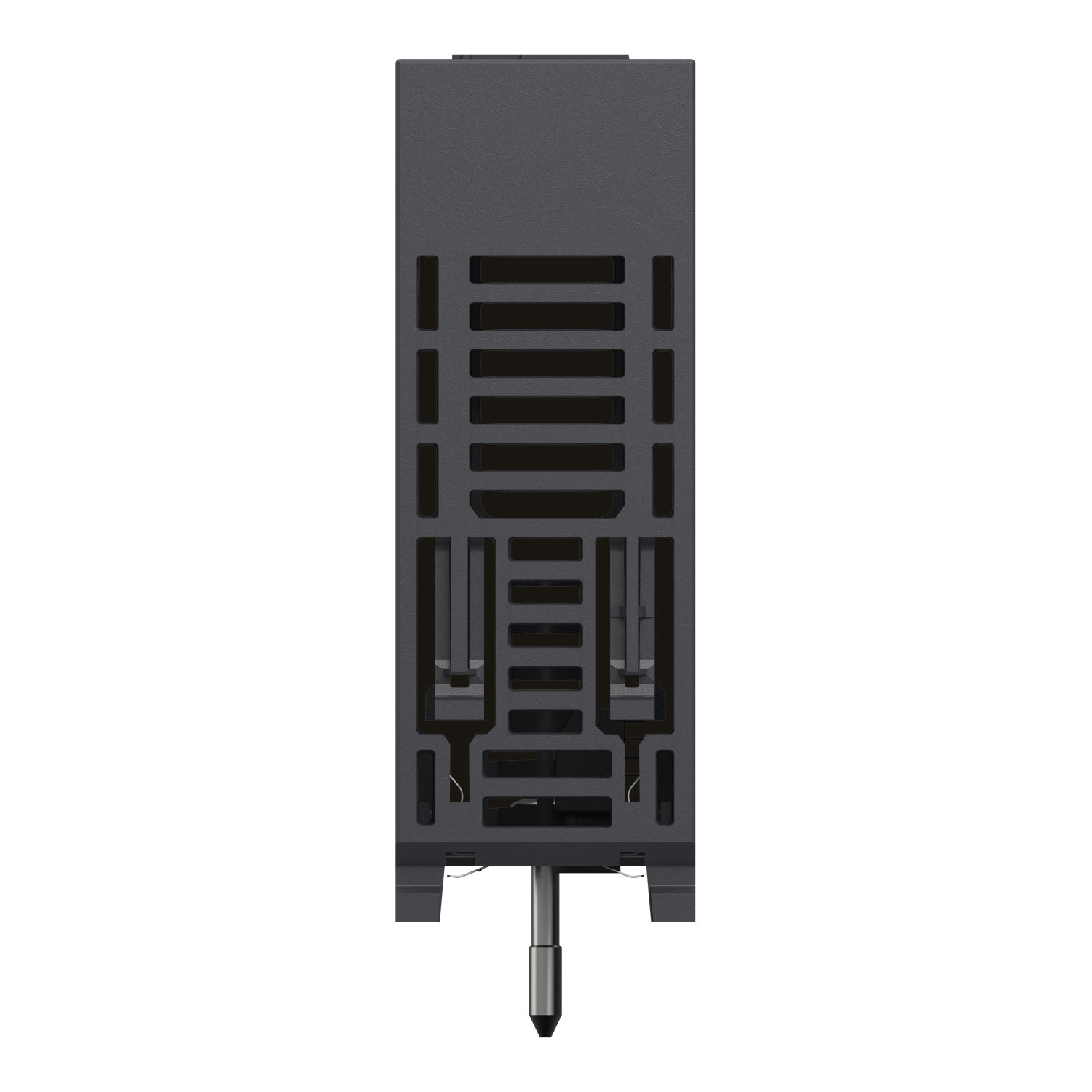

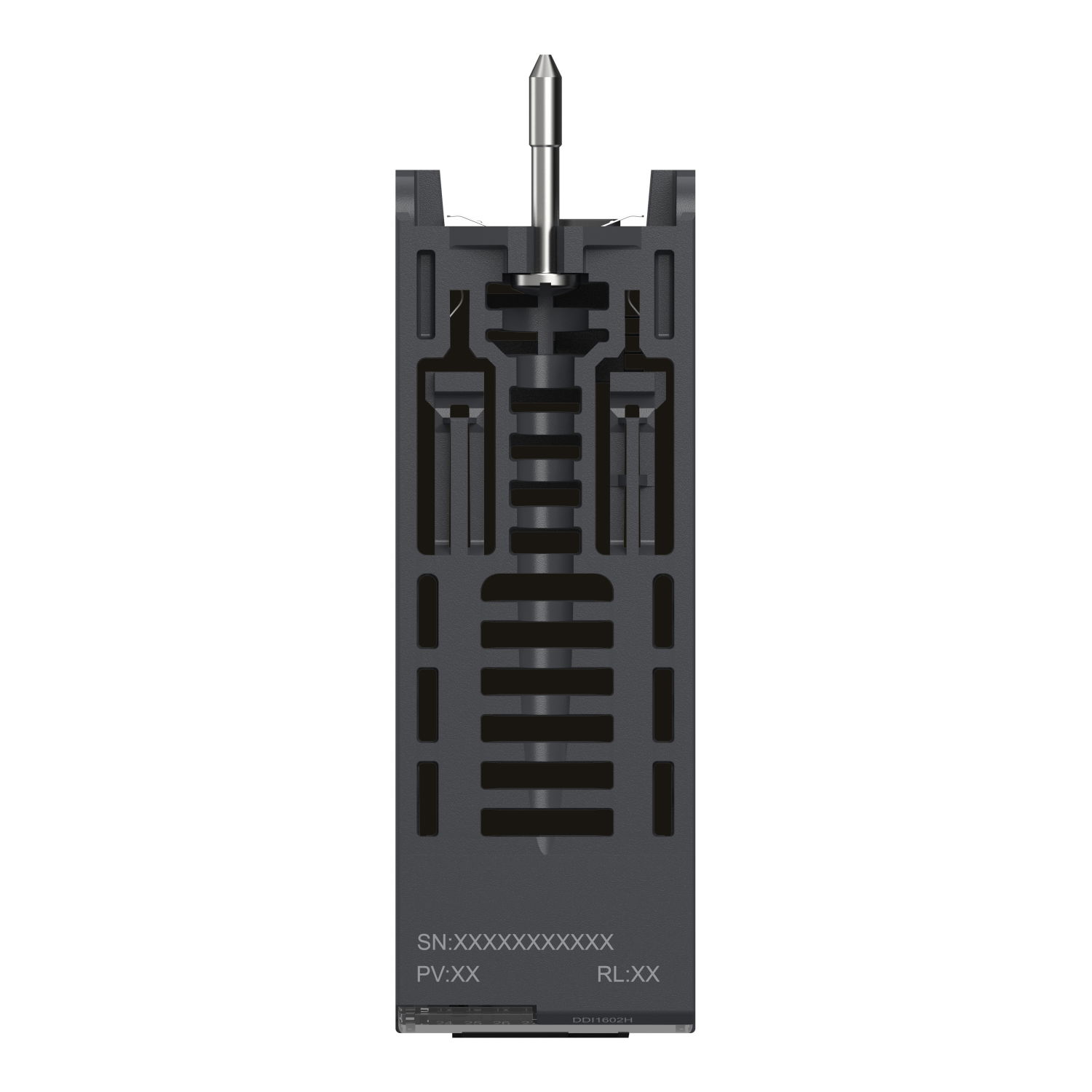

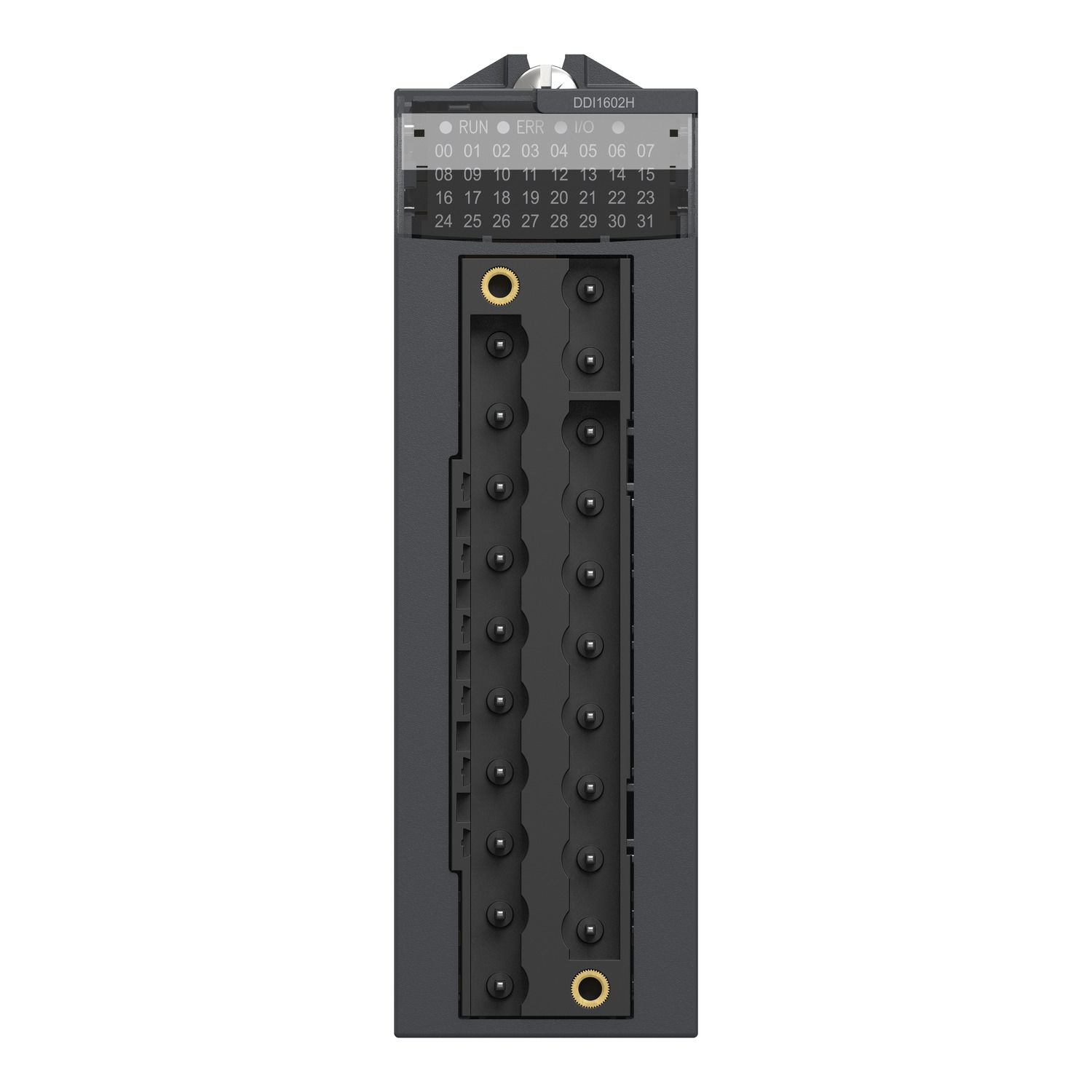

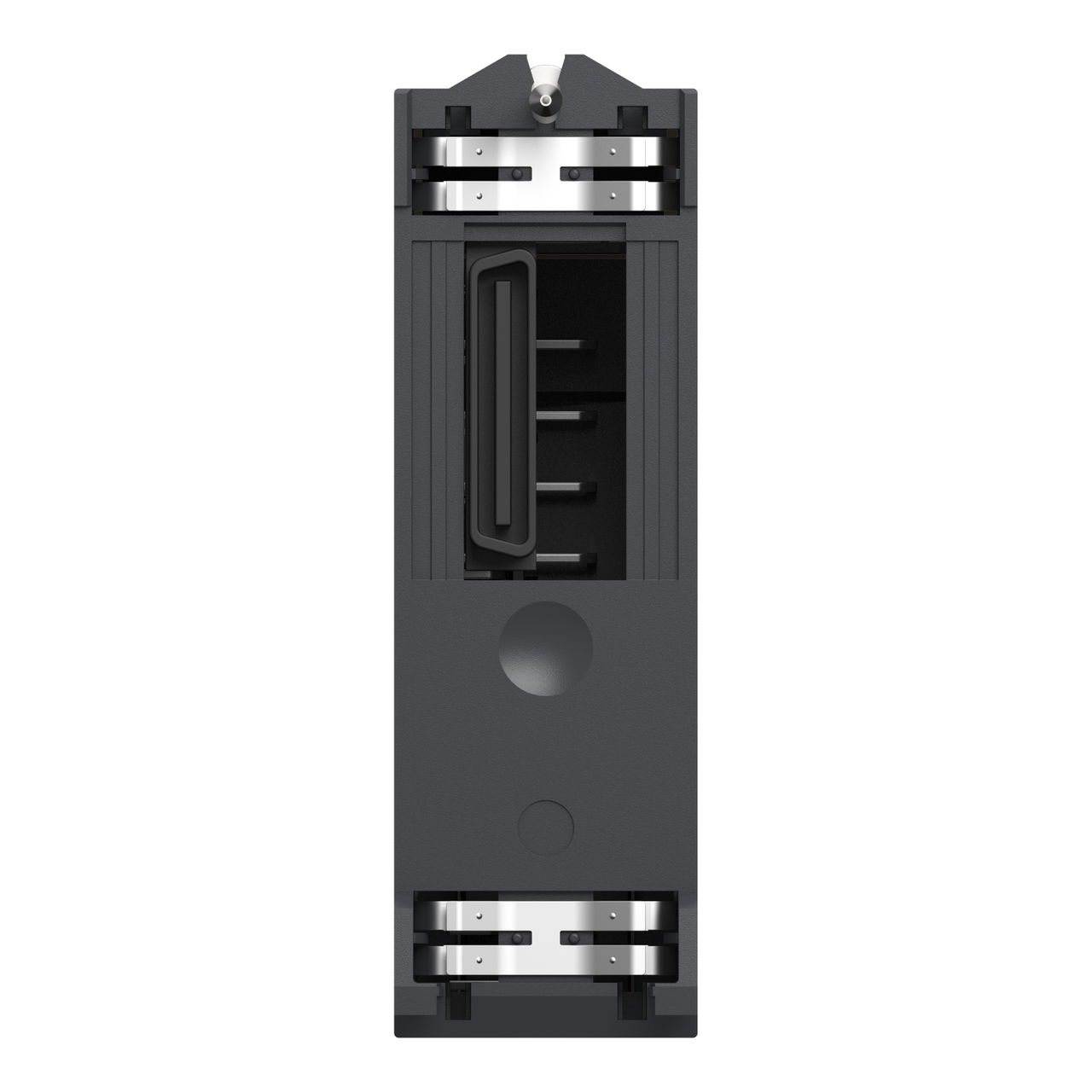

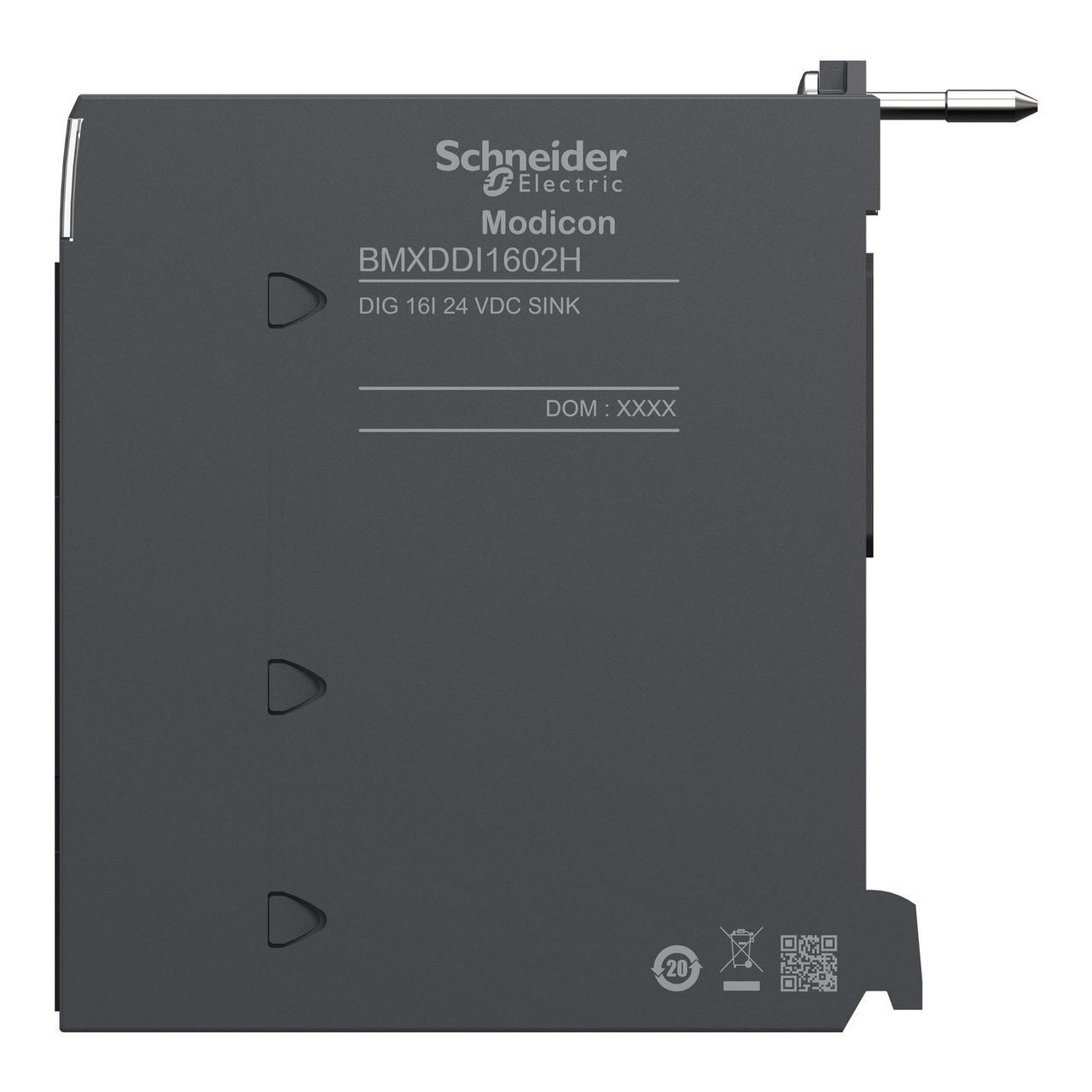

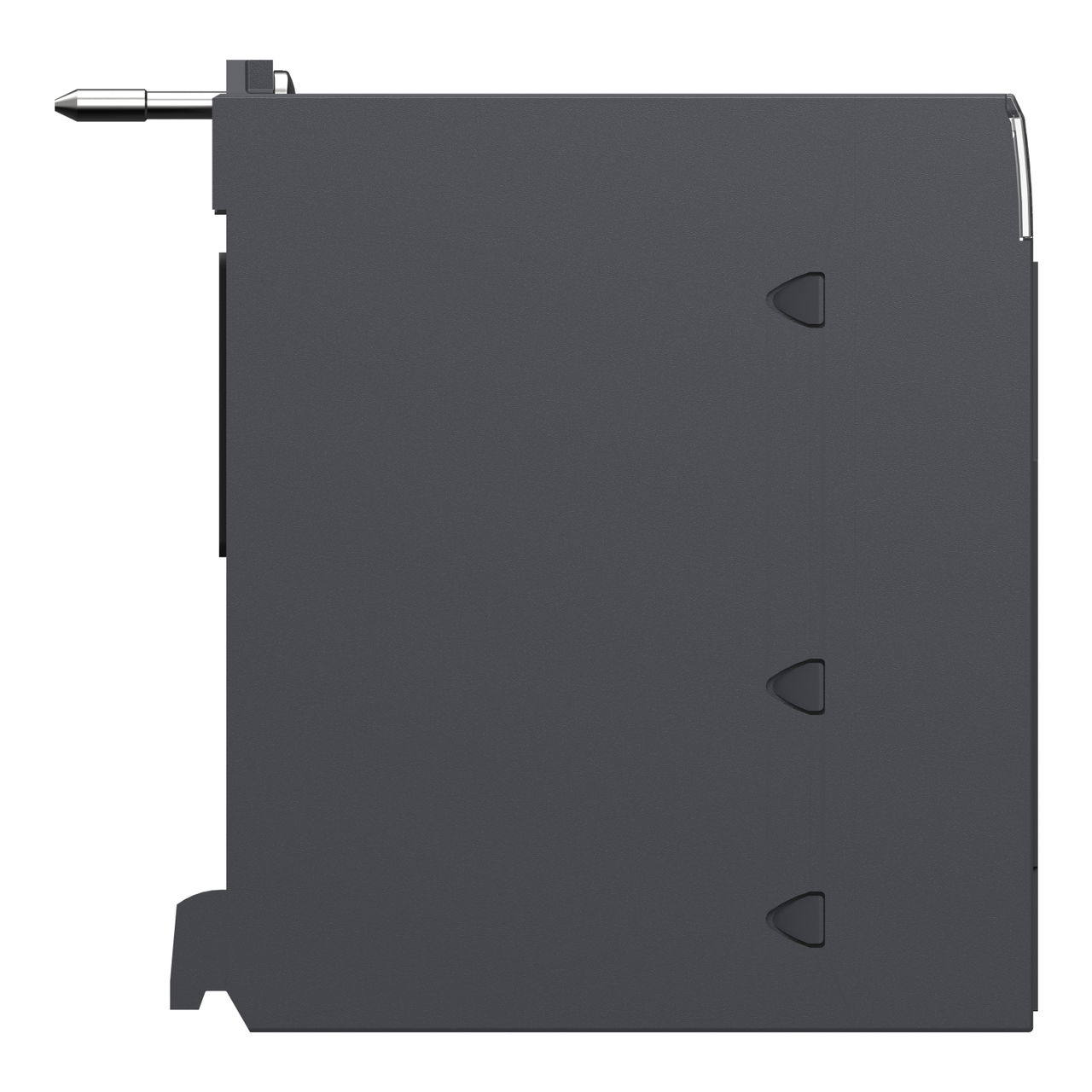

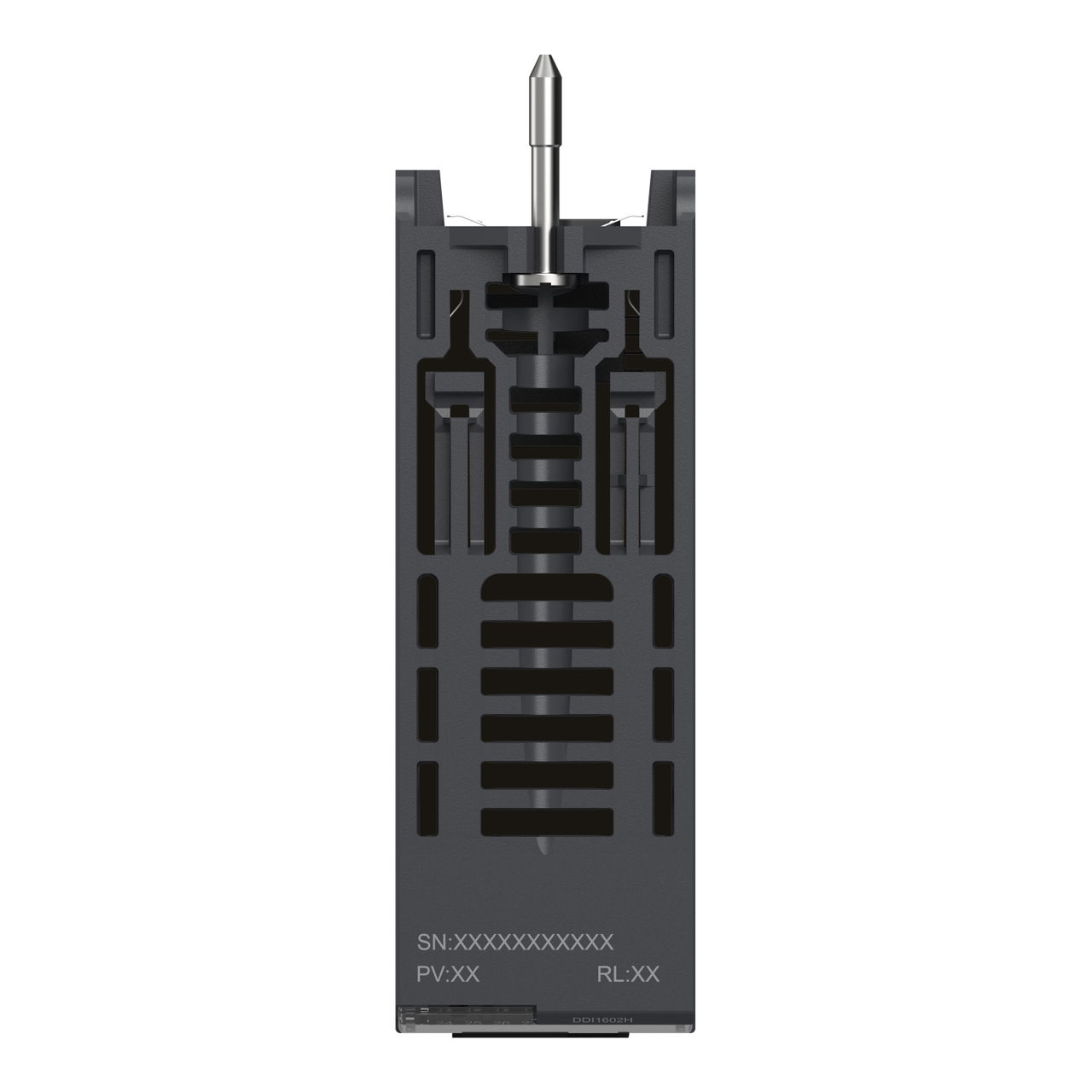

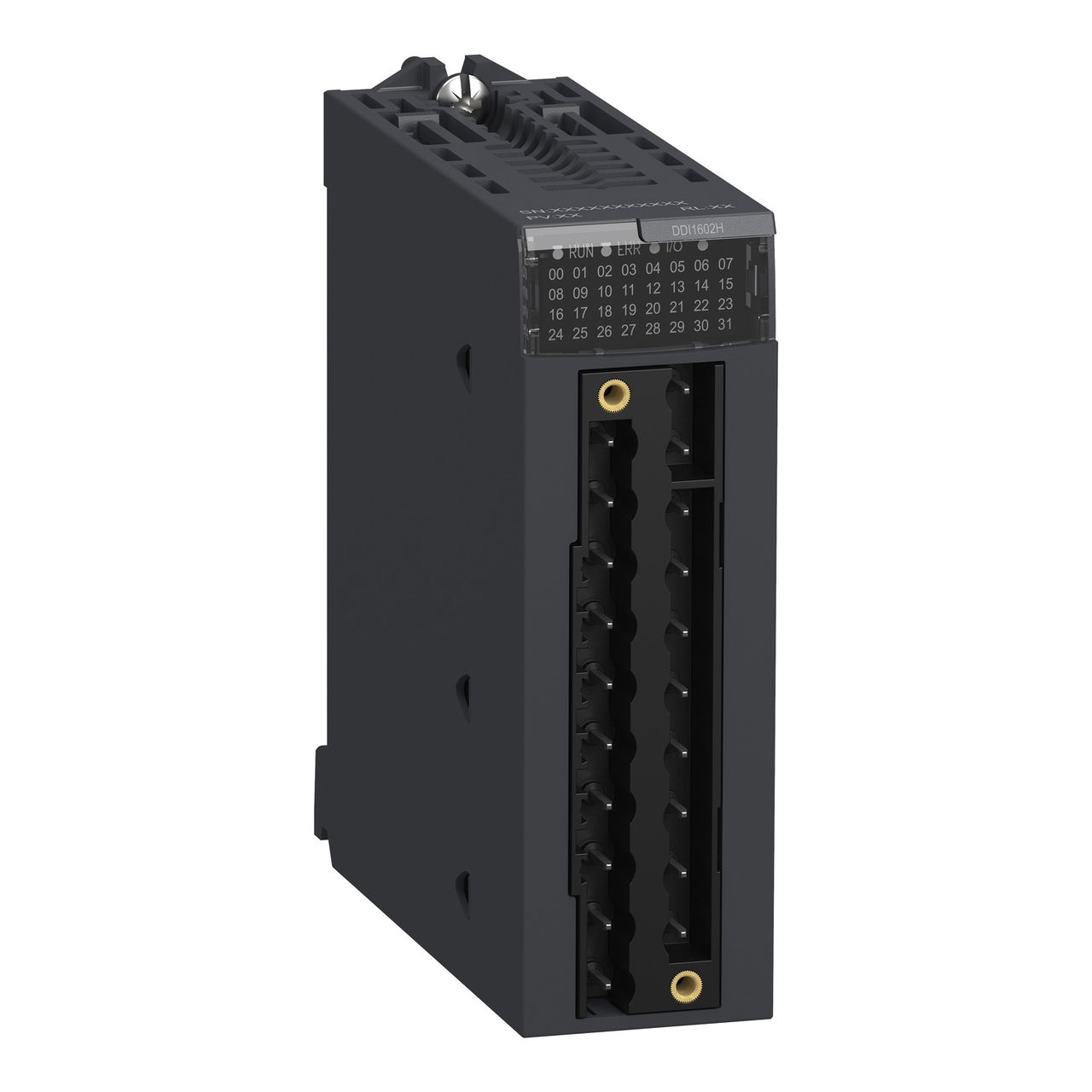

Discrete input module X80 - 16 inputs - 24V DC current sink (logic positive)

Discrete input module X80 - 16 inputs - 24V DC current sink (logic positive) by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £240.10 excl. VAT. Voltimum+ members earn 29 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 24V DC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.5W. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It offers 798237 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Product identifiers

SKU: BMXDDI1602H
EAN: 3595864025605
GTIN: 3595864025605
MPN: BMXDDI1602H

Voltimum+ Loyalty Programme Loyalty points: 29

Price: £ 240.10 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Depth 150 mm
Width 33 mm
Height 100 mm
Redundancy no
Output current -
Power consumption 2.5 W
Supply voltage DC
Type of digital output None
Supply voltage AC 50 Hz
Number of digital inputs 16
Number of digital outputs 0
SIL according to IEC 61508 None
Permitted voltage at output
Type of electric connection Plug-in connection
Suitable for safety functions no
Type of voltage (input voltage) DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None
Performance level according to EN ISO 13849-1 None
