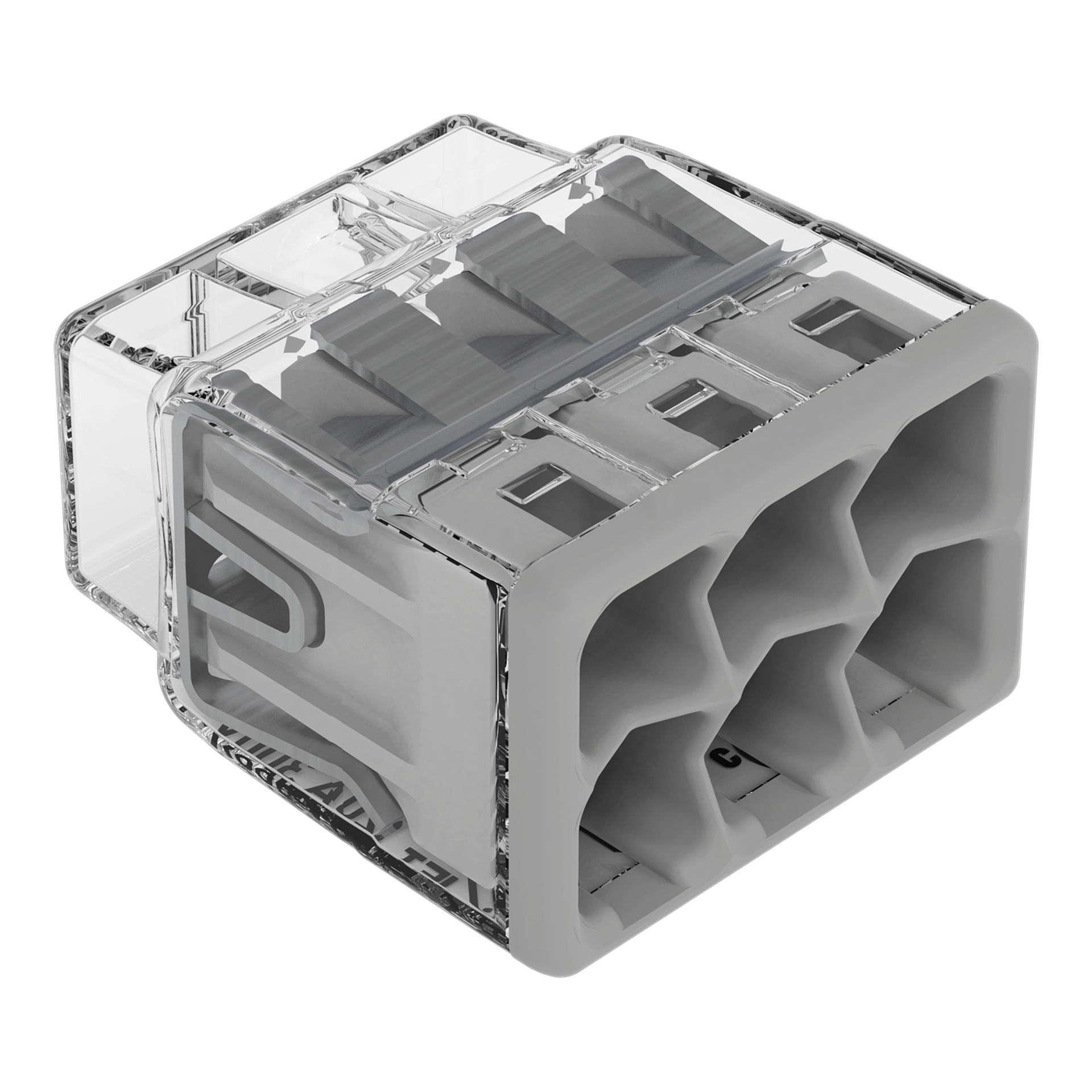

PUSH WIRE® splicing connector for solid and stranded conductors max. 4 mm² transparent
PUSH WIRE® splicing connector; for solid and stranded conductors; max. 4 mm²; 6-conductor; transparent housing; Gray cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Product identifiers
SKU: 2773-406
EAN: 4055143927666
GTIN: 4055143927666
MPN: 2773-406
Loyalty points:
1
Price range: £ 0.35 - £ 0.83 Excl. VAT
Features
|
Colour
|
Colourless
|
|
EF019374
|
0.75|4
|
|
EF019375
|
-|-
|
|
EF019376
|
6
|
|
EF019377
|
-
|
|
EF019378
|
None
|
|
Transparent
|
yes
|
|
Max. AWG-size
|
20
|
|
Min. AWG-size
|
12
|
|
Cable diameter
|
1.6 - 2
|
|
Nominal current
|
32
|
|
Nominal voltage
|
450
|
|
Suitable for solid conductors
|
yes
|
|
Suitable for flexible conductors
|
no
|
|
Suitable for multi-wire conductors
|
yes
|
|
Conductor cross section solid (solid, stranded)
|
0.75 - 4
|
|
Conductor cross section flexible (fine-strand) with cable end sleeve
|
|
