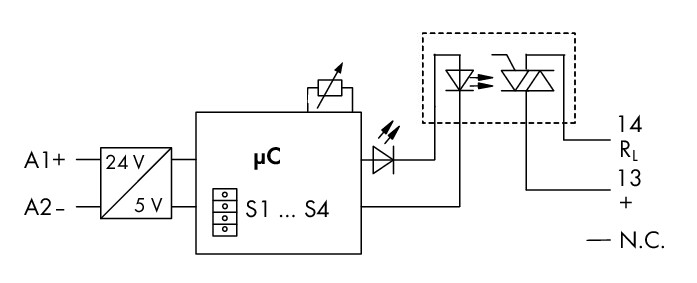

Solid-state timer relay module Nominal input voltage: 24 VDC Output voltage range: 24 … 230 VAC
Solid-state timer relay module; Nominal input voltage: 24 VDC; Output voltage range: 24 … 230 VAC; Limiting continuous current: 1 A; 2-wire connection; Multifunction/Multitime; Yellow status indicator; Module width: 6 mm
Product identifiers
SKU: 857-634
EAN: 4050821565697
GTIN: 4050821565697
MPN: 857-634
Loyalty points:
1
Price: £ 52.17 Excl. VAT
Categories
Features
|
Depth
|
94
|
|
Width
|
6
|
|
Height
|
94
|
|
Time range
|
0.1 - 18000
|
|
Nominal current
|
1
|
|
Material contact
|
-
|
|
Function star-delta
|
no
|
|
Complete with socket
|
-
|
|
Operating voltage DC
|
|
|
Max. starting current
|
-
|
|
Function pulse shaping
|
no
|
|
Degree of protection (IP)
|
-
|
|
Remote operation possible
|
no
|
|
With semiconductor output
|
no
|
|
Material of contact insert
|
-
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Suitable as remote control
|
no
|
|
Voltage type for actuating
|
DC
|
|
Material of contact surface
|
-
|
|
Suitable for front mounting
|
-
|
|
Type of electric connection
|
Spring clamp connection
|
|
Function delay-on energization
|
yes
|
|
Rated control supply voltage DC
|
24 - 24
|
|
Voltage type (operating voltage)
|
-
|
|
Function delay on de-energization
|
no
|
|
Pluggable on auxiliary contact block
|
no
|
|
Outputs, reversible delayed/undelayed
|
no
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Function floating contact on energization
|
yes
|
|
Function floating contact on de-energization
|
yes
|
|
Clock function, starting with pause, variable
|
no
|
|
Clock function, starting with pulse, variable
|
no
|
|
Suitable for DIN rail (top hat rail) mounting
|
yes
|
|
Number of outputs, delayed, change-over contact
|
0
|
|
Number of outputs, delayed, normally open contact
|
0
|
|
Number of outputs, undelayed, change-over contact
|
0
|
|
Function flashing, starting with pause, fixed time
|
no
|
|
Function flashing, starting with pulse, fixed time
|
no
|
|
Relay technology category according to IEC 61810-7
|
-
|
|
Number of outputs, delayed, normally closed contact
|
0
|
|
Number of outputs, undelayed, normally open contact
|
0
|
|
Number of outputs, undelayed, normally closed contact
|
0
|
