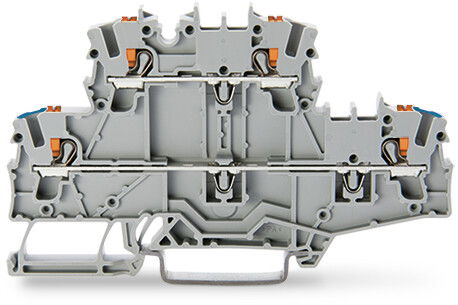

Double-deck terminal block with push-button Through/through terminal block gray
Wago

Double-deck terminal block with push-button Through/through terminal block gray

Double-deck terminal block; with push-button; Through/through terminal block; N/L; without marker carrier; suitable for Ex e II applications; Blue conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product identifiers

SKU: 2202-2702
EAN: 4055143844604
GTIN: 4055143844604
MPN: 2202-2702

V+ Loyalty points:

4

Price range: £ 2.38 - £ 2.42 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 51.7
Width 5.2
Colour Grey
Height 92.5
EFNA0008 V0
Rated voltage 800
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 2
Operating temperature 105 - 105
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 2
Connectable conductor cross section multi-wired 0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 4
