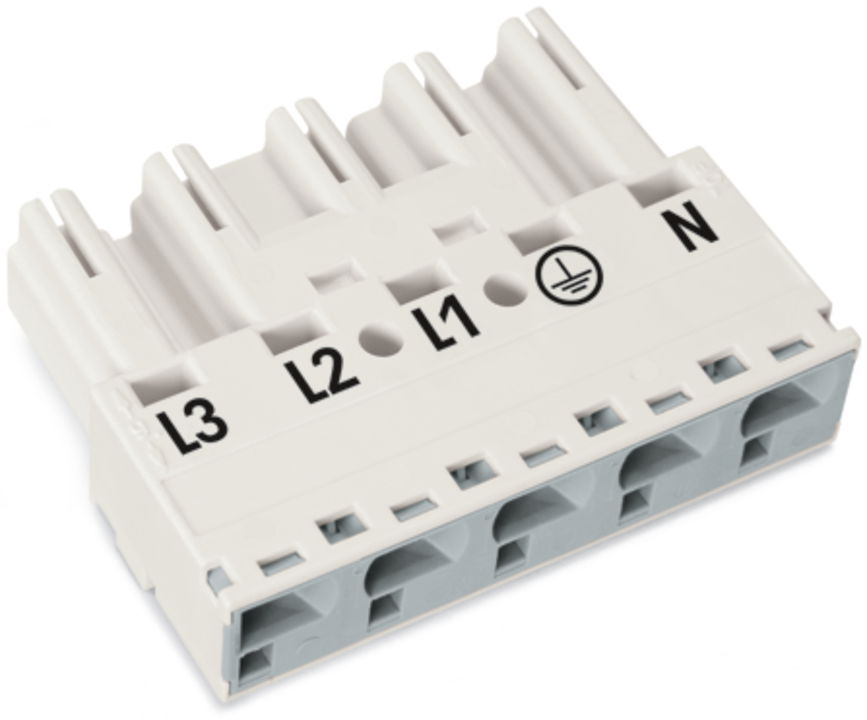

Plug 5-pole Cod. A white

Name: Plug 5-pole Cod. A white
Brand: Wago
SKU: 770-435
Availability: InStock

Plug; 5-pole; Cod. A; 4,00 mm²; white

Product identifiers

SKU: 770-435

EAN: 4044918254731

GTIN: 4044918254731

MPN: 770-435

Price range: £ 2.50 - £ 2.56 Excl. VAT

Specifications

Model	Plug

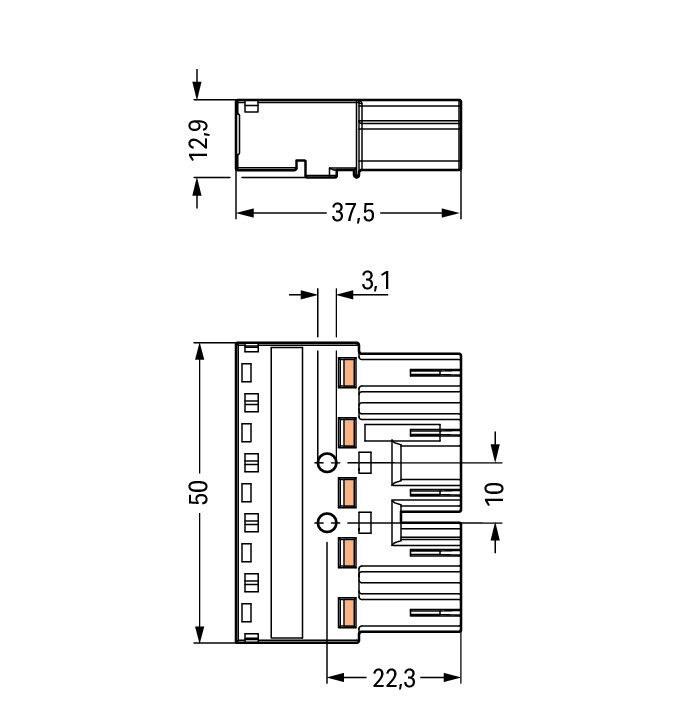

Width	50
Height	12.9
Length	37.5
Fire load	0.10722
Halogen free	yes
Rated current	25
Rated voltage	400
Cable diameter
Connection type	Spring clamp connection
Number of poles	5
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	no
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	1
RAL-number coding/contact insert	9010
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
