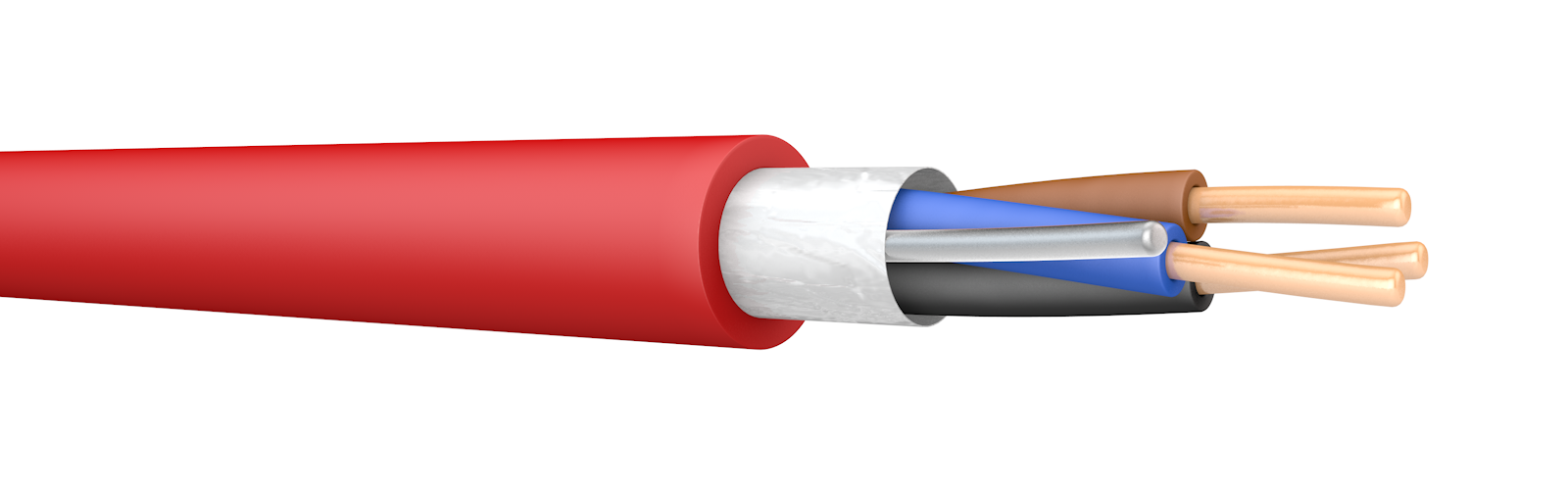

FP200 3x2.5 100m Reel Red Fire Resistant Cable. BS 7629-1. 300/500 V

Name: FP200 3x2.5 100m Reel Red Fire Resistant Cable. BS 7629-1. 300/500 V
Brand: Prysmian
SKU: 20079705
Availability: InStock

Prysmian FP200 GOLD is a 'Standard' fire resistant cable as defined by fire alarm and emergency lighting British Standards

Product identifiers

SKU: 20079705

EAN: 5019325285585

GTIN: 5019325285585

Price: £ 428.19 Excl. VAT

Specifications

Screen	yes
Weight	180
Drain wire	yes
Core colour	Several
Lead sheath	no
Cable geometry	Round
Number of cores	3
Conductor surface	Bare
Nominal voltage U	500
Conductor category	Class 1 = solid
Conductor material	Copper
Nominal voltage U0	300
Protective barrier	None
Shape of conductor	Round
Colour outer sheath	Red
Core identification	Colour
Material outer sheath	Polyolefin
Outer diameter approx.	10.4
With rodent protection	no
Material core insulation	Polyolefin
With protective conductor	yes
Max. conductor temperature	70
Specification core insulation	Other
Conductor resistance at 20 °C	7.41
Nominal cross section conductor	2.5
Certified as airport lighting cable	no
Certified for shipboard application	no
Specification material outer sheath	Other
Low smoke according to EN IEC 61034-2	yes
Suitable for underground installation	no
Core identification according to HD 308 S2	yes
Oil resistant according to EN IEC 60811-404	no
Low temperature resistant according to EN 60811-504+505+506	no
Permitted cable outer temperature during assembling/handling
