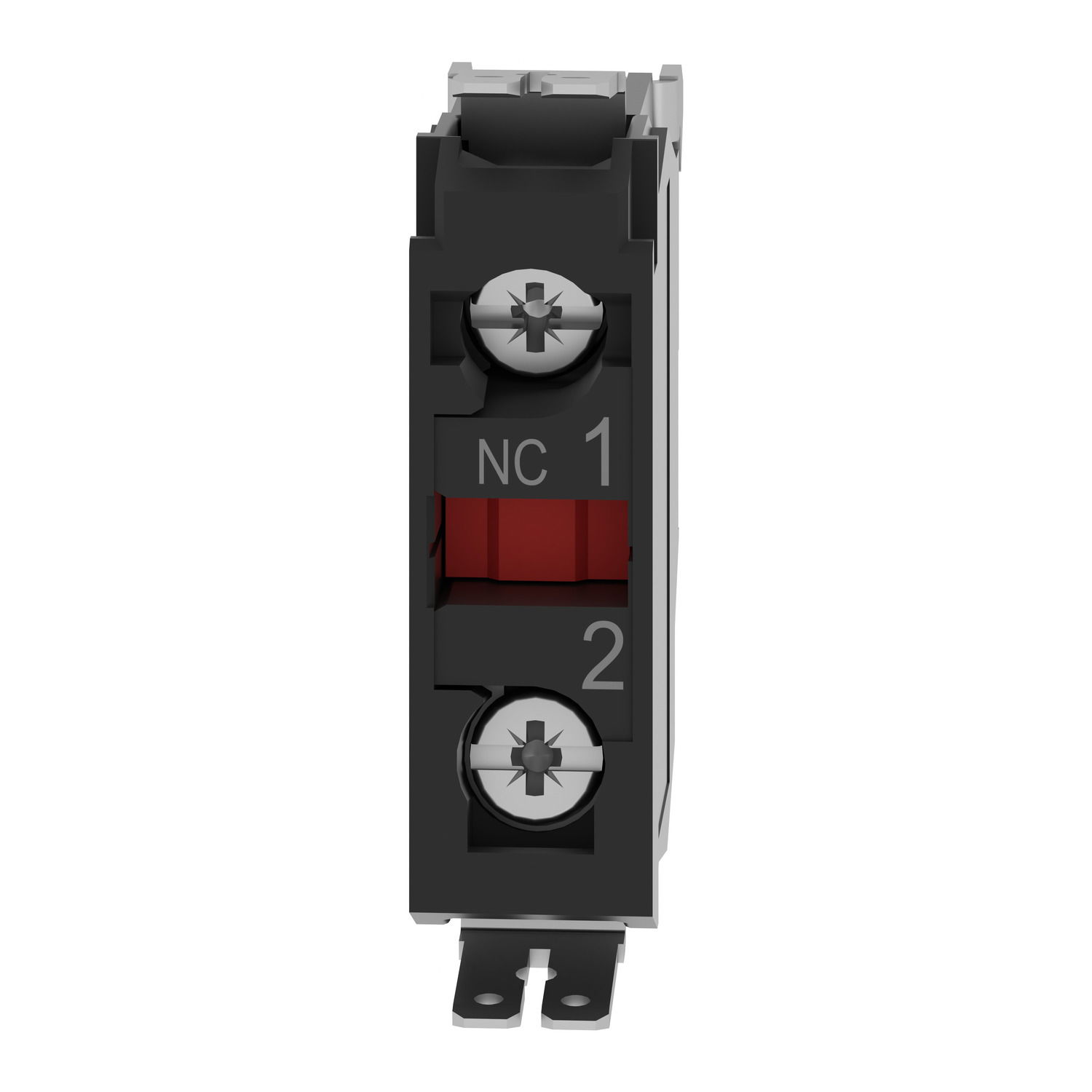

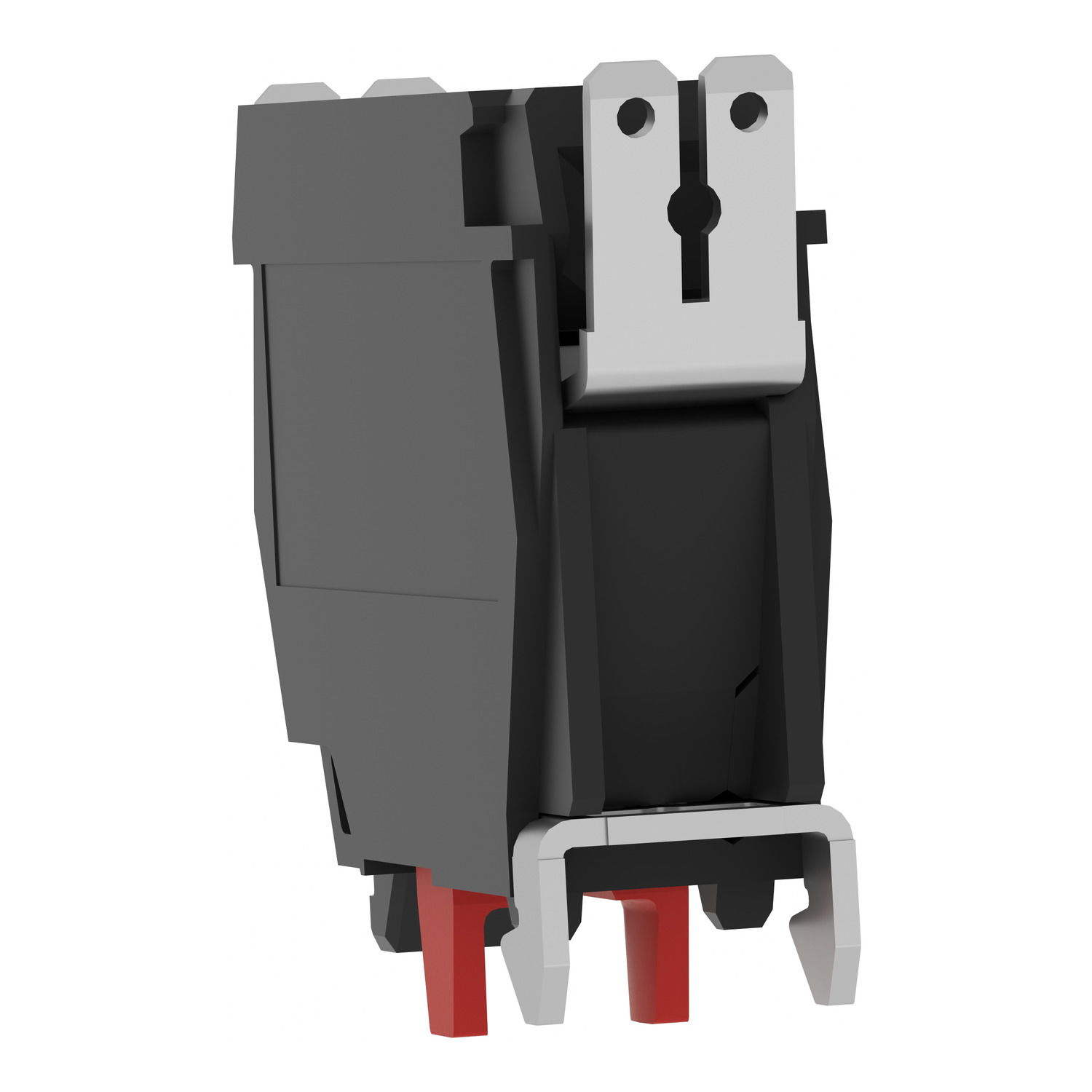

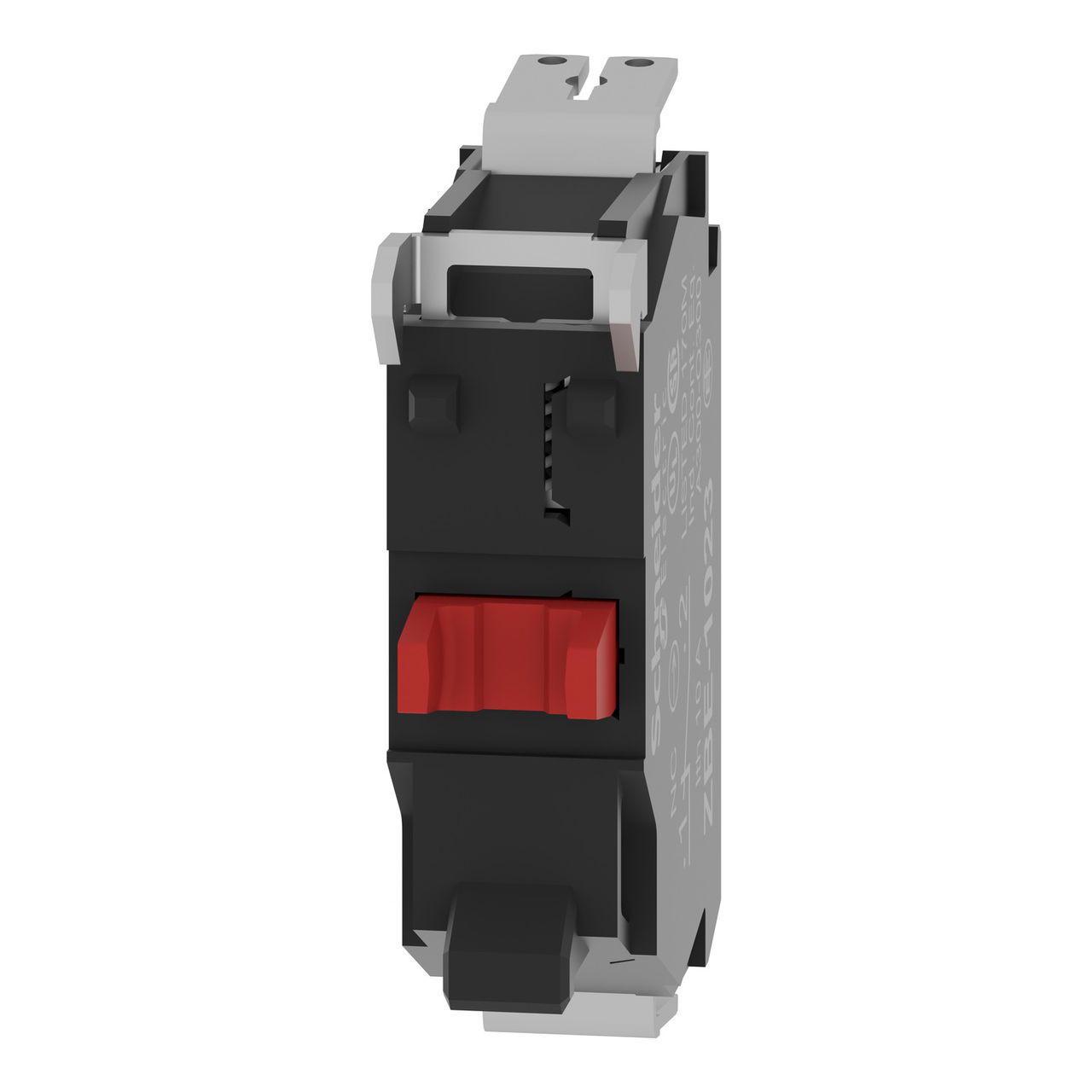

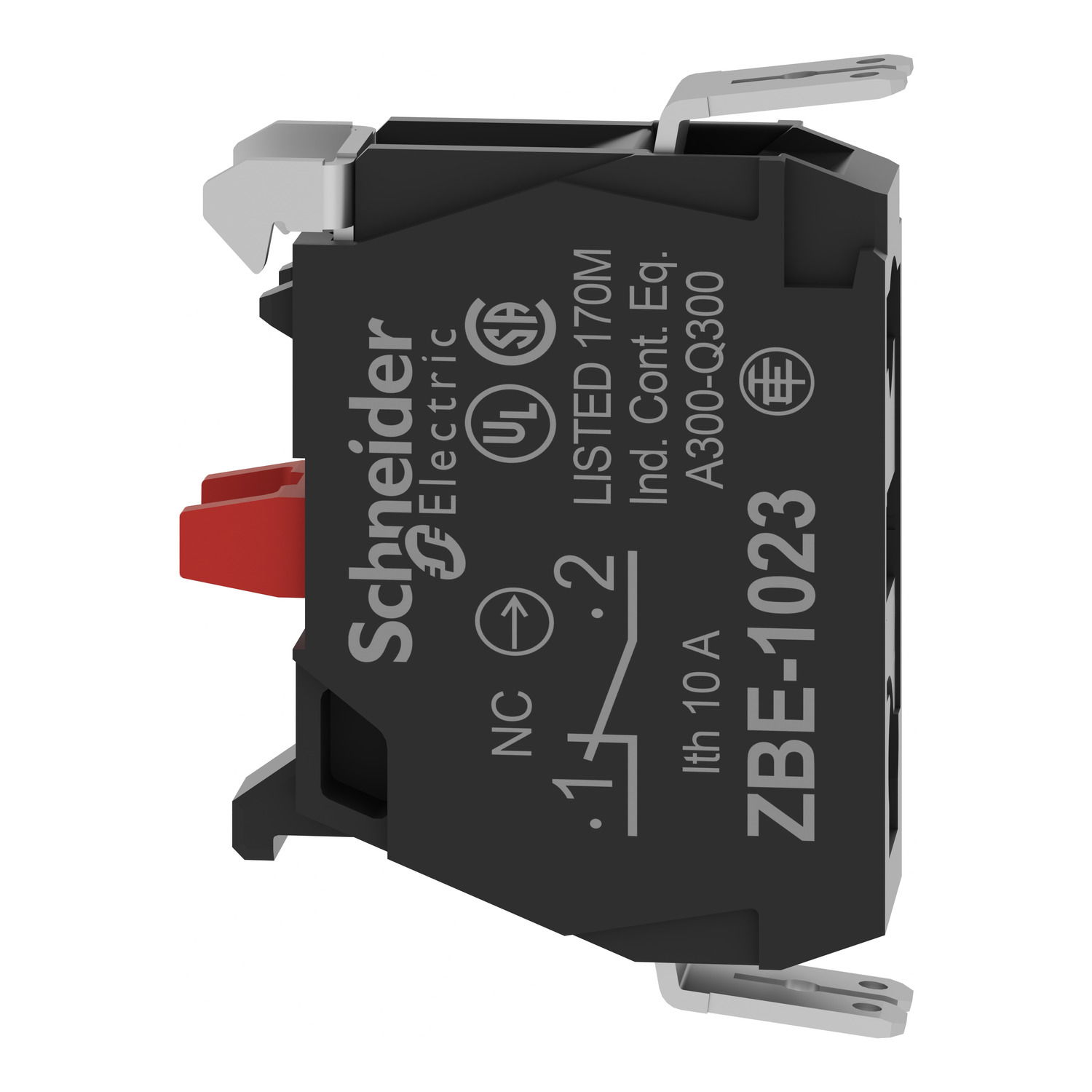

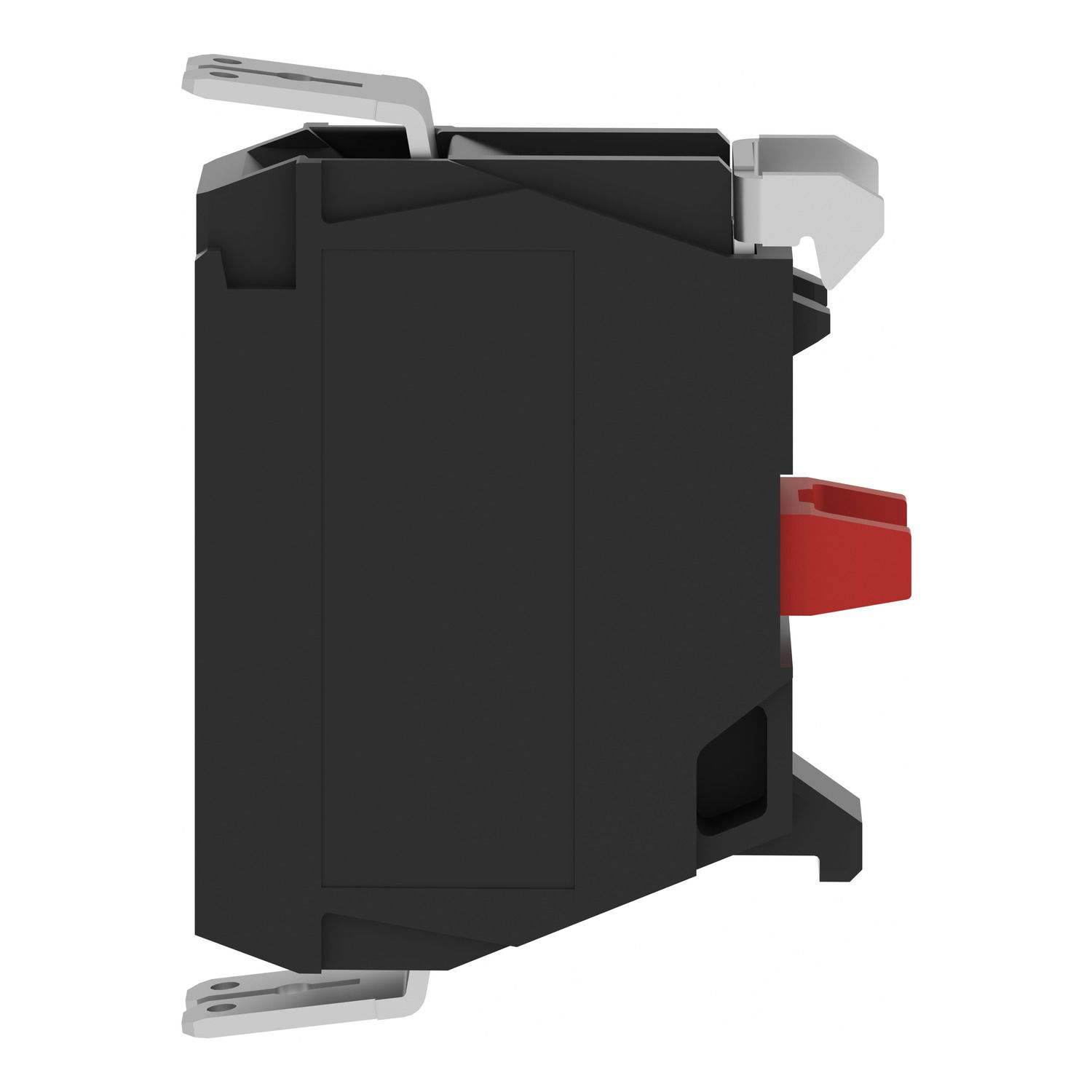

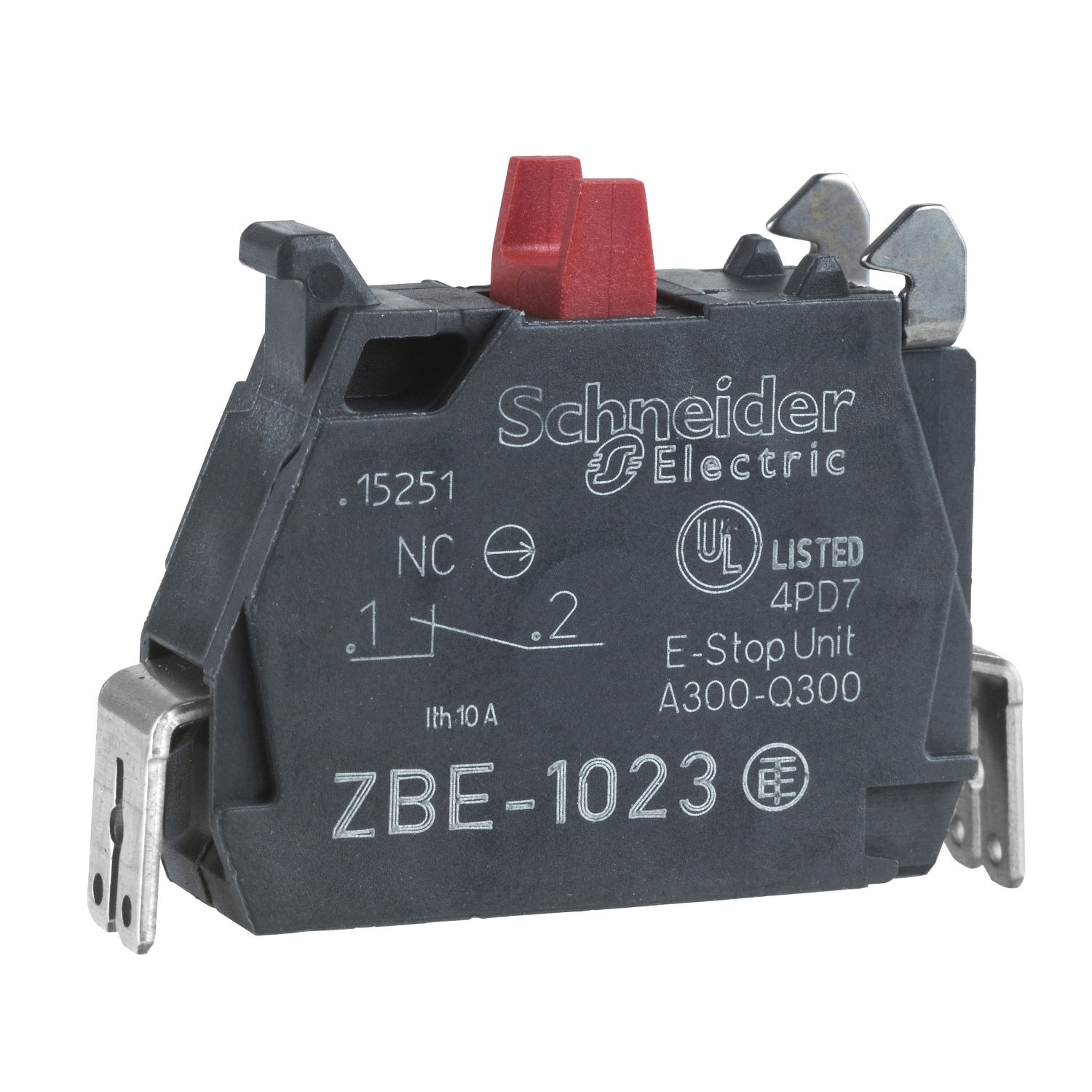

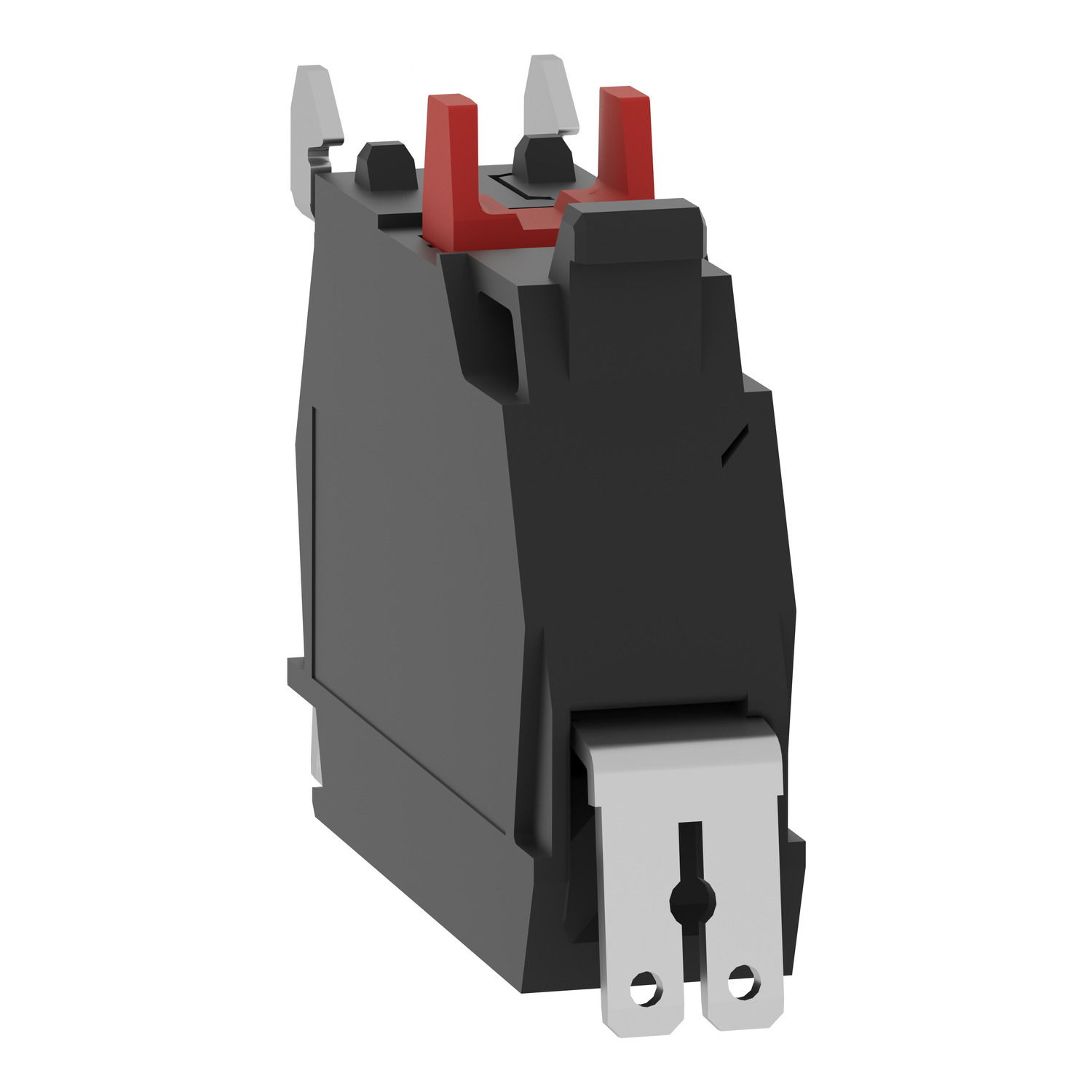

Single contact block for head Ø22 1NC silver alloy Faston connector

Link copied
SKU
EAN
GTIN
MPN

Single contact block for head Ø22 1NC silver alloy Faston connector by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £4.71 to £8.63 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony ZB, single contact block uses fast-on terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple fast-on connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 4.71 - £ 8.63 Excl. VAT

Specifications

Model Clip-on
Lamp holder None
Mounting method Front fastening
Type of electric connection Flat plug-in connection
Number of fault-signal switches 0
Number of contacts as change-over contact 0
Rated operation current Ie at AC-15, 230 V 3 A
Number of contacts as normally open contact 0

Documents

Declaration of Conformity (Sustainability)

ZBE1023 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB4 metal Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZBE1023 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Harmony XB5 Pilot Light

Open

CAD

ZBE1023_CAD_DOC

Open
