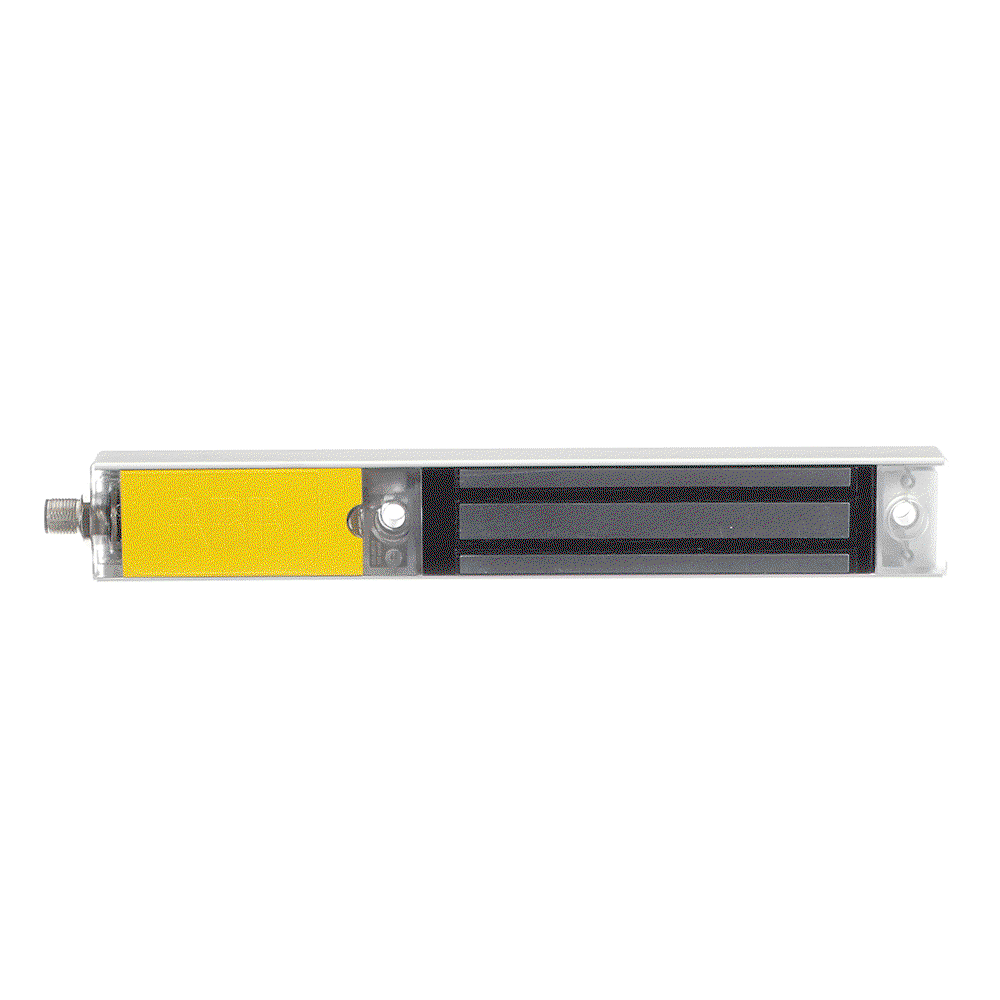

Magne 4 DYN-Info Lock

Link copied
SKU
EAN
GTIN
MPN
Magne 4 DYN-Info is an electromagnetic lock providing safe interlocking thanks to an integrated ADAM DYN-Info safety sensor. Its M12-8 connector facilitates connexion. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. A combined "Locked and Closed" information output is available. The Eva actuactor and the anchor plate must be ordered separately. Magne is an electromagnetic process lock intended for locking doors and hatches. It is usually used to prevent unwanted process interruptions, e.g. during a welding operation. With Adam and Eva, a PLe can be reached for the interlocking function.

Voltimum+ Loyalty Programme Loyalty points: 141

Price: £ 288.16 Excl. VAT

Specifications

Width 35
Height 274
Voltage type DC
Wall distance
Gripping force
Explosion-proof no
Mounting method Surface mounting
Housing material Other
Operating voltage
With anchor plate no
Suitable for wall mounting yes
Suitable for ceiling mounting no

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Magne_Product_Manual_(EN)_revN_2TLC172315M0201.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity_Magne4_(EN)_2024_revD_2TLC172262D0201.pdf

Open
