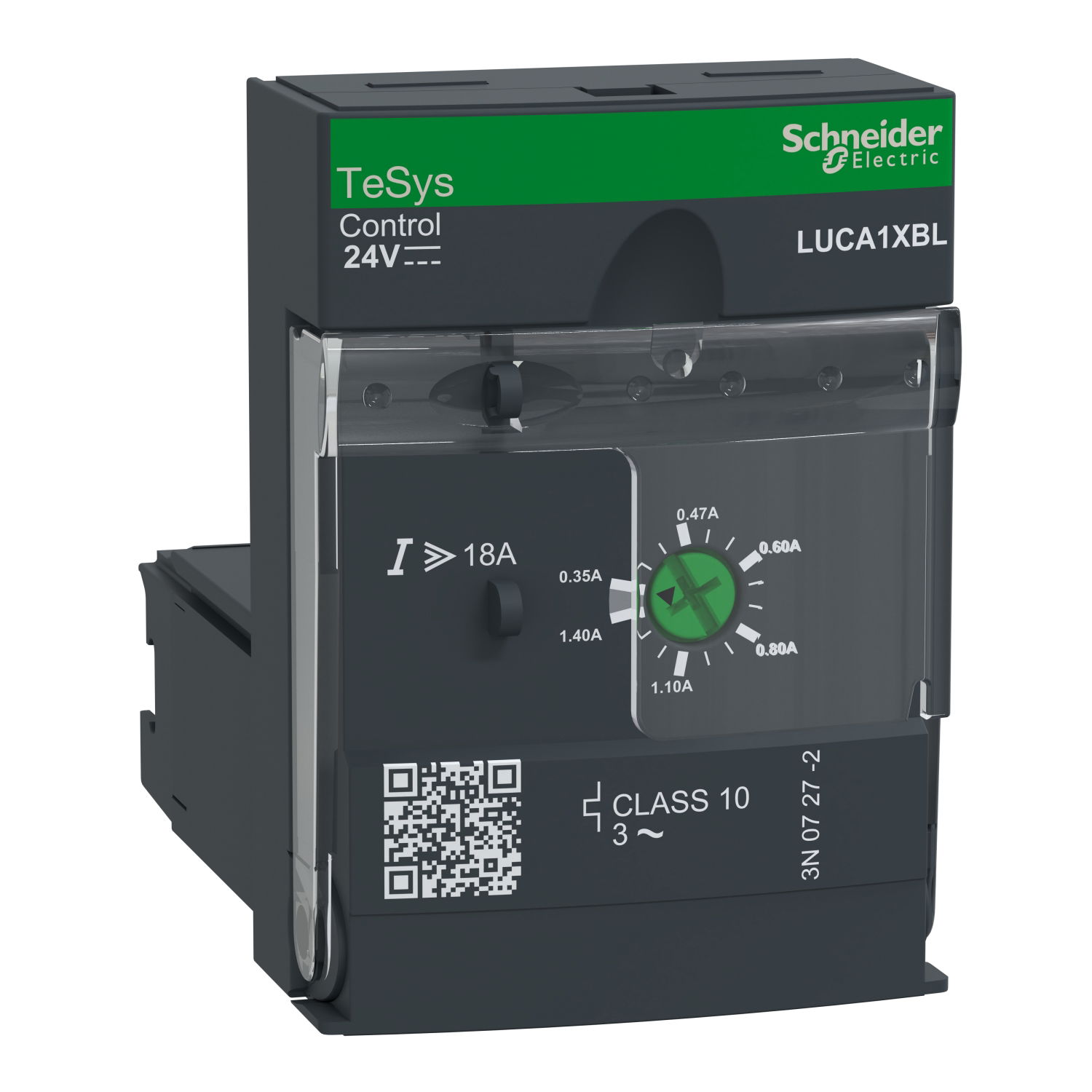

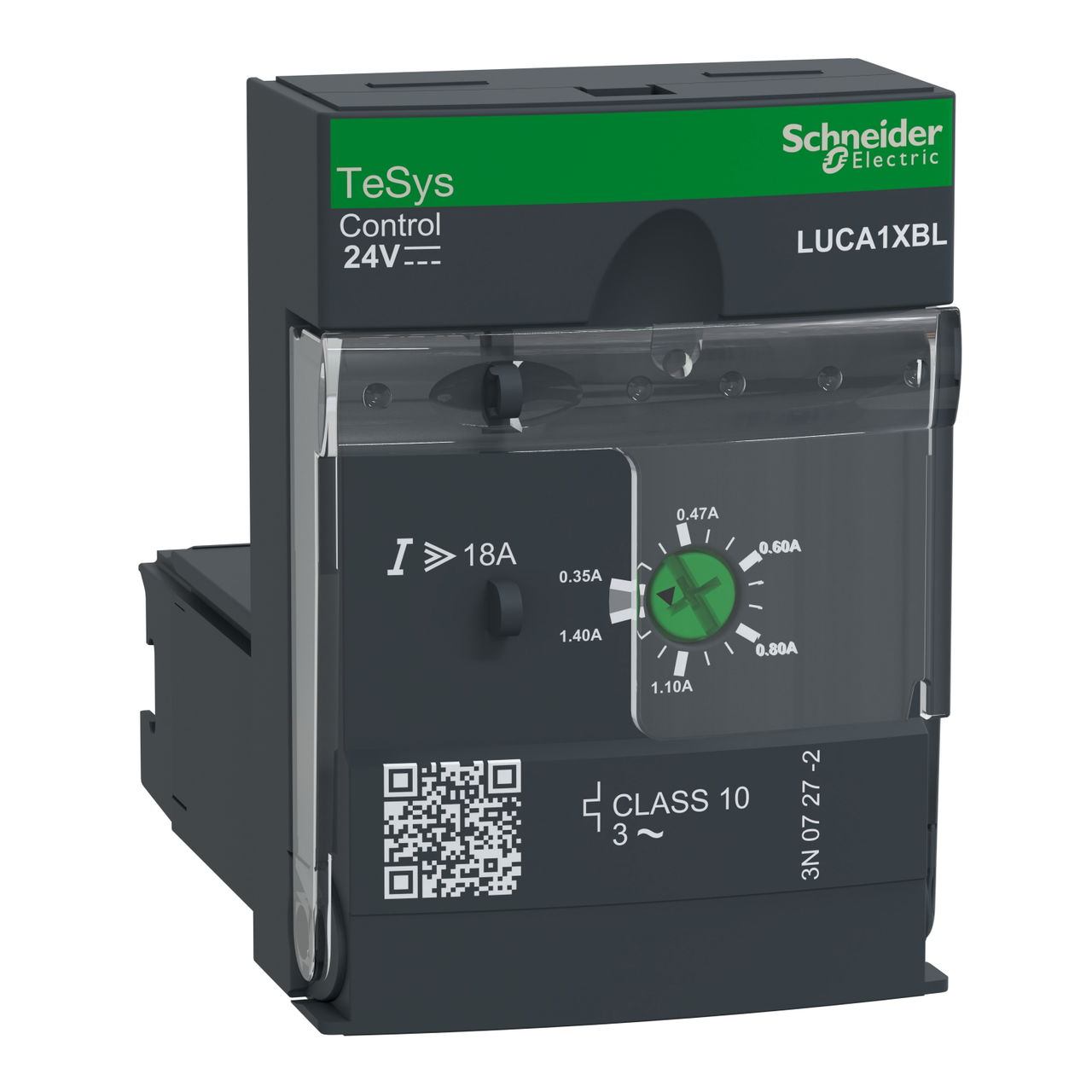

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V DC
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: LUCA1XBL
EAN: 3389110363821
GTIN: 3389110363821
MPN: LUCA1XBL
Loyalty points: 32
Price range: £ 51.88 - £ 81.23 Excl. VAT
Categories
Features
|
Depth
|
60 mm
|
|
Width
|
45 mm
|
|
Height
|
66 mm
|
|
Number of poles
|
3
|
|
Supply voltage DC
|
|
|
Operating voltage DC
|
|
|
Rated switch current
|
-
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Type of motor protection
|
Thermal/magnetic release
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated permanent current Iu
|
1.4 A
|
|
Voltage type (supply voltage)
|
DC
|
|
External power supply required
|
TRUE
|
|
Short-circuit release function
|
Undelayed
|
|
Overload release current setting
|
|
|
Voltage type (operating voltage)
|
AC
|
|
With ground fault protection function
|
TRUE
|
|
Current setting delayed short-circuit release
|
|
|
Current setting undelayed short-circuit release
|
|
|
Number of auxiliary contacts as change-over contact
|
-
|
|
Number of auxiliary contacts as normally open contact
|
-
|
|
Number of auxiliary contacts as normally closed contact
|
-
|
