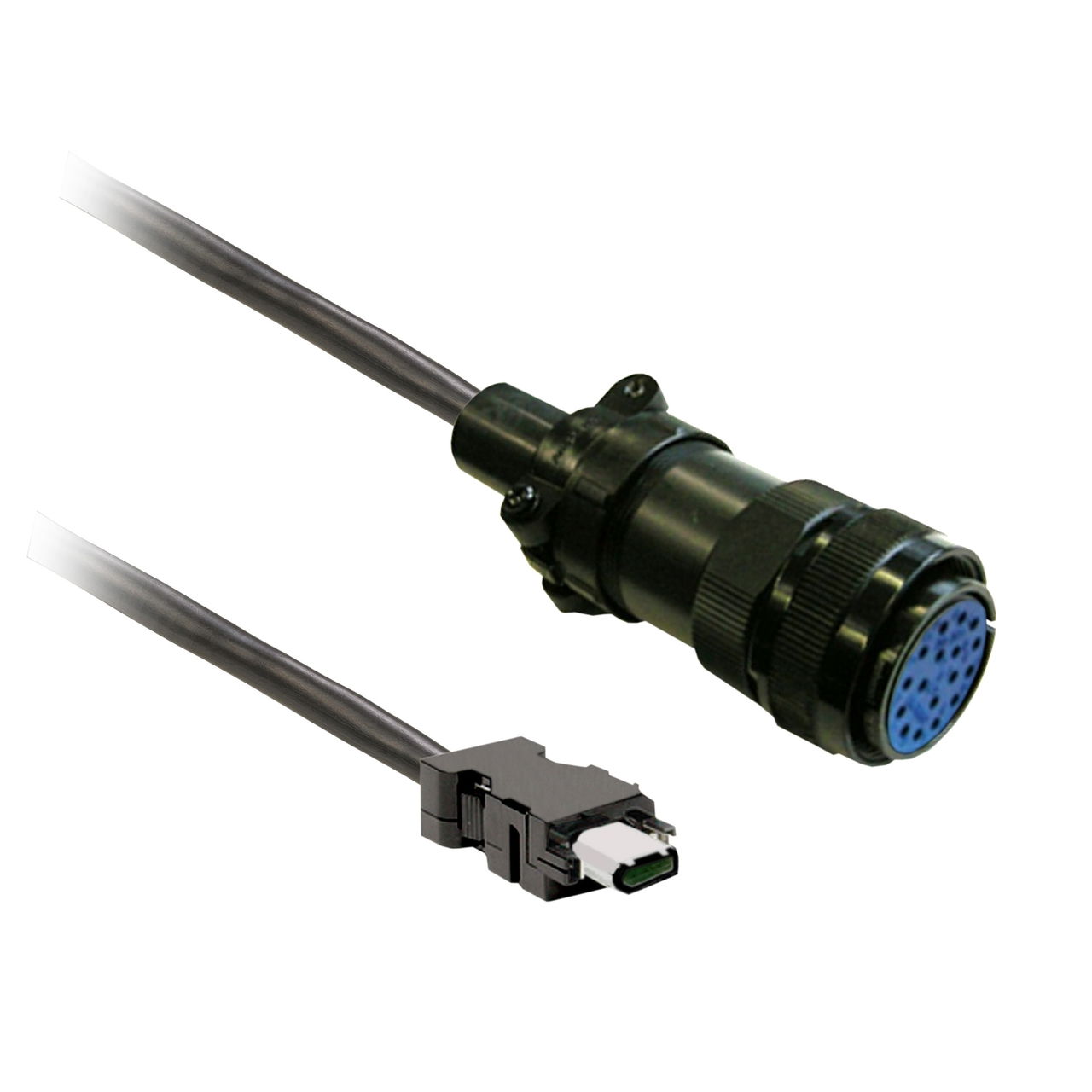

Encoder cable 3m shielded, MIL connector for BCH2.H/.M/.R, CN2 plug

Link copied
SKU
EAN
GTIN
MPN

Encoder cable 3m shielded, MIL connector for BCH2.H/.M/.R, CN2 plug by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £121.60 excl. VAT. Voltimum+ members earn 14 points per unit.

"This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors." "This is a shielded encoder cordset for BCH2 motors with SinCos single turn encoder." "It is equipped with one firewire 6-pin connector (servo drive side) and one MIL 17-pin connector (servo motor side)." "The encoder cable transmits signals between position sensors of servo motors and their control systems." "The cable composition is 5x (2 x 0.13squaremm)." "It measures 3m long and weighs 1.3kg." "It is a connection accessory to the BCH2 servo motors." "It is compatible with servo motors type BCH2LH103, /LH203, /MM081, /MM031, /MM052, /MM061, /MM102, /HM102, /MM091, /MM152, /MM202." "It plugs into the encoder connector of LXM28 drives and BCH2 servo motors." "Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines." "Designed for optimized & cost-effective."

Voltimum+ Loyalty Programme Loyalty points: 14

Price: £ 121.60 Excl. VAT

Specifications

Length 3 m
Function PLC - other devices
Number of poles 5
Suitable for digital signals no
Suitable for input board PLC no
Suitable for output card PLC no
Suitable for analogue signals no
Type of electrical connection, box-sided Connection plug board

Documents

User guide

Lexium 28A and BCH2 Servo Drive System, User Guide

Open

Product data sheet

Open

Catalog

Catalog Easy Lexium 26 Servo drives and servo motors for simple machines - August 2022

Open

Declaration of Conformity (Sustainability)

VW3M8D2AR30 EU RoHS Directive
