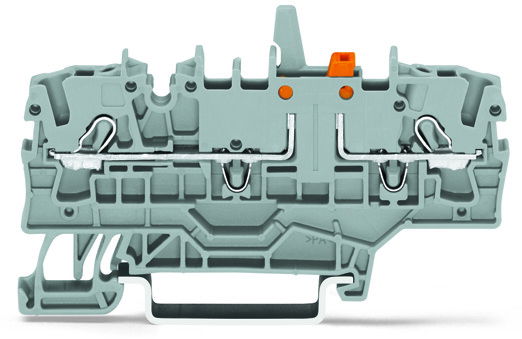

2-conductor disconnect/test terminal block with mechanical interlock with additional jumper position gray
2-conductor disconnect/test terminal block; with mechanical interlock; with additional jumper position; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Product identifiers
SKU: 2002-1971/401-000
EAN: 4055143871860
GTIN: 4055143871860
MPN: 2002-1971/401-000
Price range: £ 2.74 - £ 2.80 Excl. VAT
Categories
Features
|
Depth
|
32.9
|
|
Width
|
5.2
|
|
Colour
|
Grey
|
|
Height
|
72.9
|
|
Rated voltage
|
400
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
16
|
|
Type of slitting
|
None
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Internally connected stages
|
yes
|
|
Type of cross disconnection
|
None
|
|
With integrated test socket
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
2
|
|
Connectable conductor cross section solid-core
|
0.75 - 4
|
|
Connectable conductor cross section multi-wired
|
0.25 - 2.5
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 2.5
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.25 - 4
|
