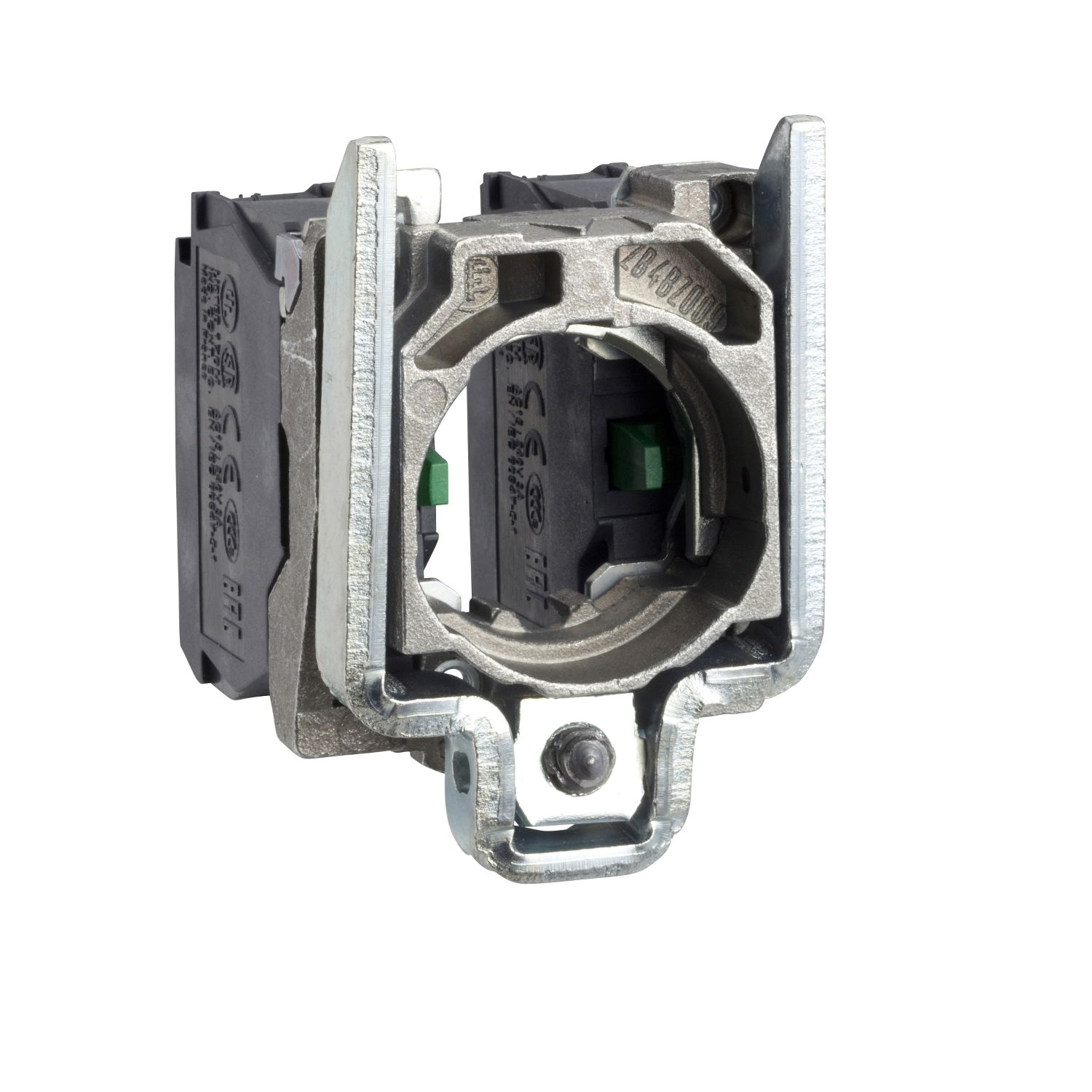

Contact block with body/fixing collar for 2-direction joystick controller

Name: Contact block with body/fixing collar for 2-direction joystick controller
Brand: Schneider Electric
SKU: ZD4PA103
Availability: InStock

Contact block with body/fixing collar for 2-direction joystick controller by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £17.11 to £17.28 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB4 contact block operates with 2 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 2-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types.

Product identifiers

SKU: ZD4PA103

EAN: 3389110285918

GTIN: 3389110285918

MPN: ZD4PA103

Loyalty points: 2

Price range: £ 17.11 - £ 17.28 Excl. VAT

Specifications

Model	Integrable
Lamp holder	None
Mounting method	Front fastening
Type of electric connection	Screw connection
Number of fault-signal switches	0
Number of contacts as change-over contact	0
Rated operation current Ie at AC-15, 230 V	3 A
Number of contacts as normally open contact	2
Number of contacts as normally closed contact	0
