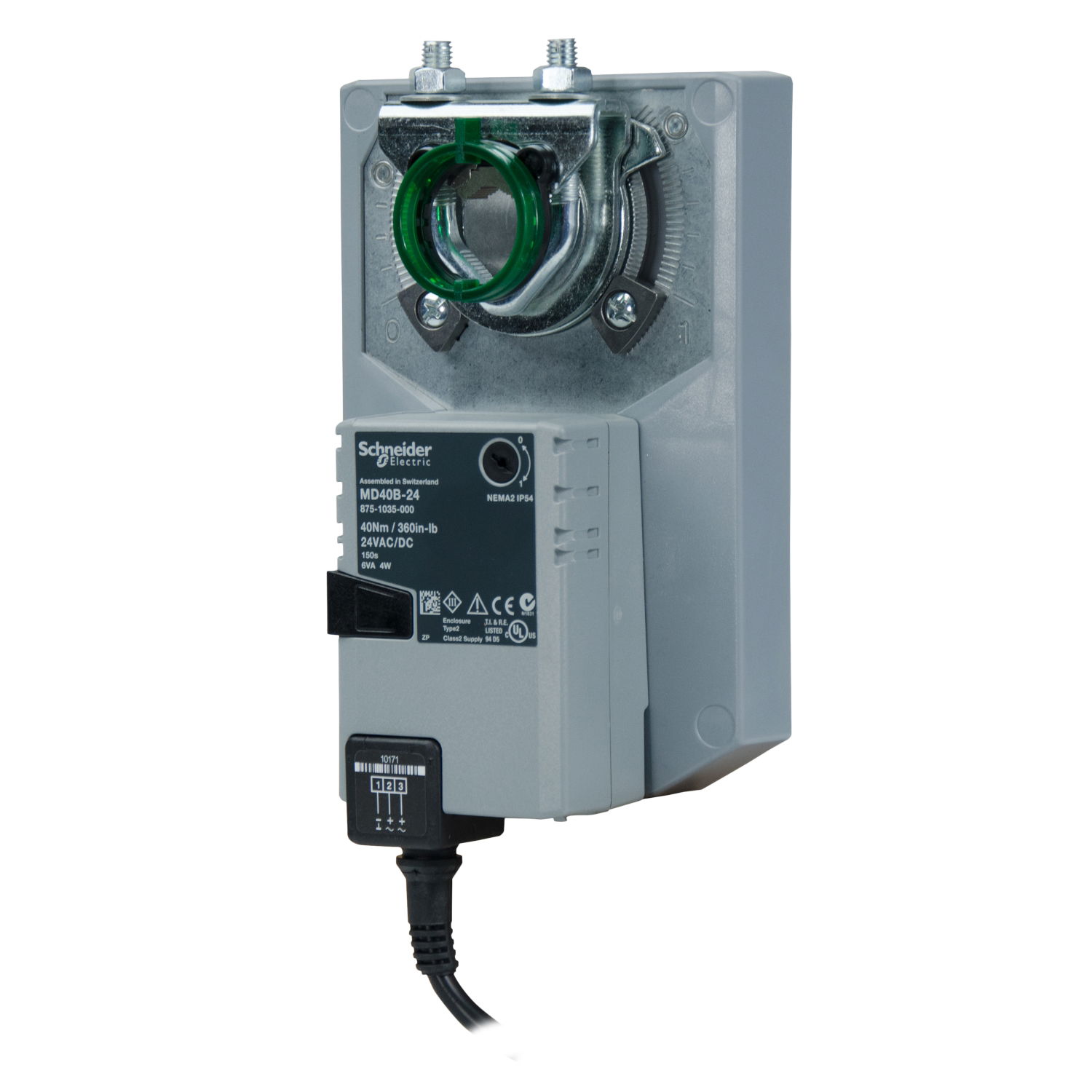

Actuator Damper MD40B-24
The MD4B is on/off damper actuator designed for operating air control dampers in ventillation and air conditioning systems for building services installations. The damper actuator can be used with mounting kits to drive selected Butterfly and Shoe valves. The actuator is maintenance free, with mechanical position indication. Supply voltage: 24 Vac/Vdc +/- 2%. Control signal: on/off. Torque: 4 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable by mechanical stops. Connection cable 1 m, 3 x .75 mm² (AW 18).
Product identifiers
SKU: 8751035000
EAN: 3606489659295
GTIN: 3606489659295
MPN: 8751035000
Loyalty points:
73
Price: £ 435.00 Excl. VAT
Categories
ETIM Group
Specifications
| Depth | 60 mm |
| Model | Rotating |
| Width | 165 mm |
| Height | 83 mm |
| Torque | 40 Nm |
| End contacts | None |
| Transmission | - |
| Stroke length | - |
