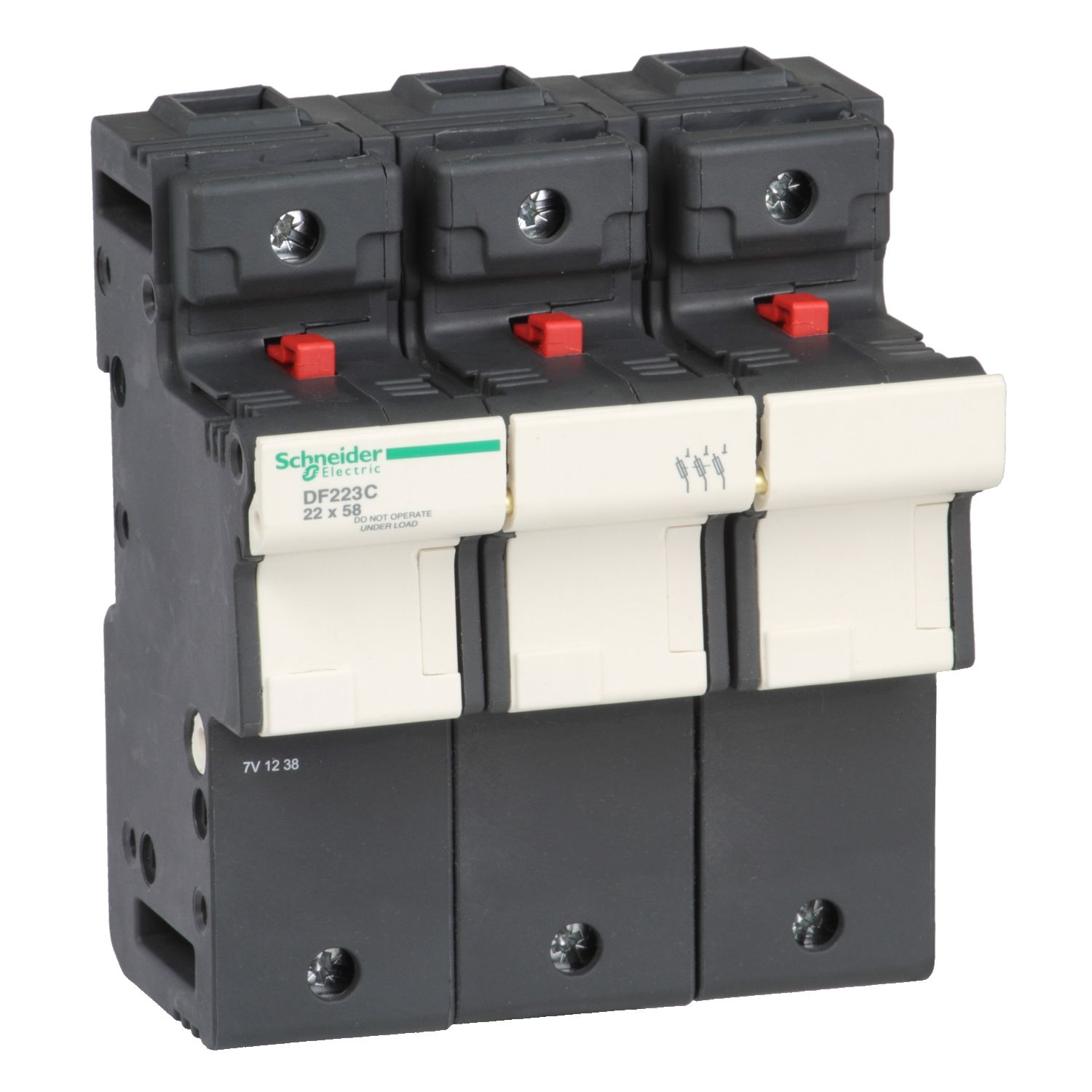

Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm

Link copied
SKU
EAN
GTIN
MPN

Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £35.13 to £61.67 excl. VAT. Voltimum+ members earn 7 points per unit.

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately). Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

Voltimum+ Loyalty Programme Loyalty points: 7

Price range: £ 35.13 - £ 61.67 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Industrial Switchgear

ETIM group

Circuit breakers and fuses

Specifications

Lockable no
For fuse size 22x58 mm
Built-in depth 70 mm
Mounting method DIN rail
Nominal voltage 690 V
Number of poles 3
Degree of protection (IP) IP20
With optical defect indication no
Concurrently switching neutral conductor no
