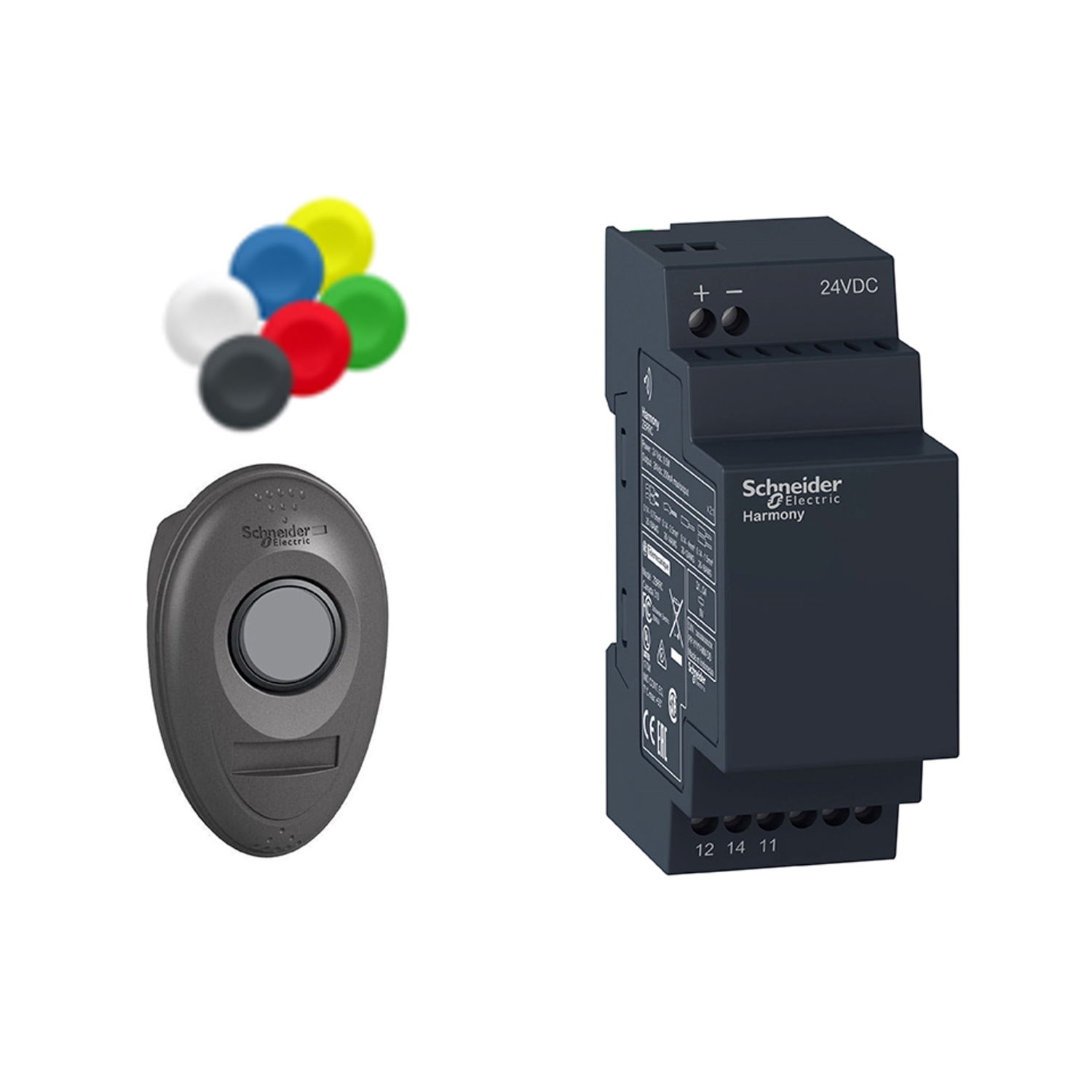

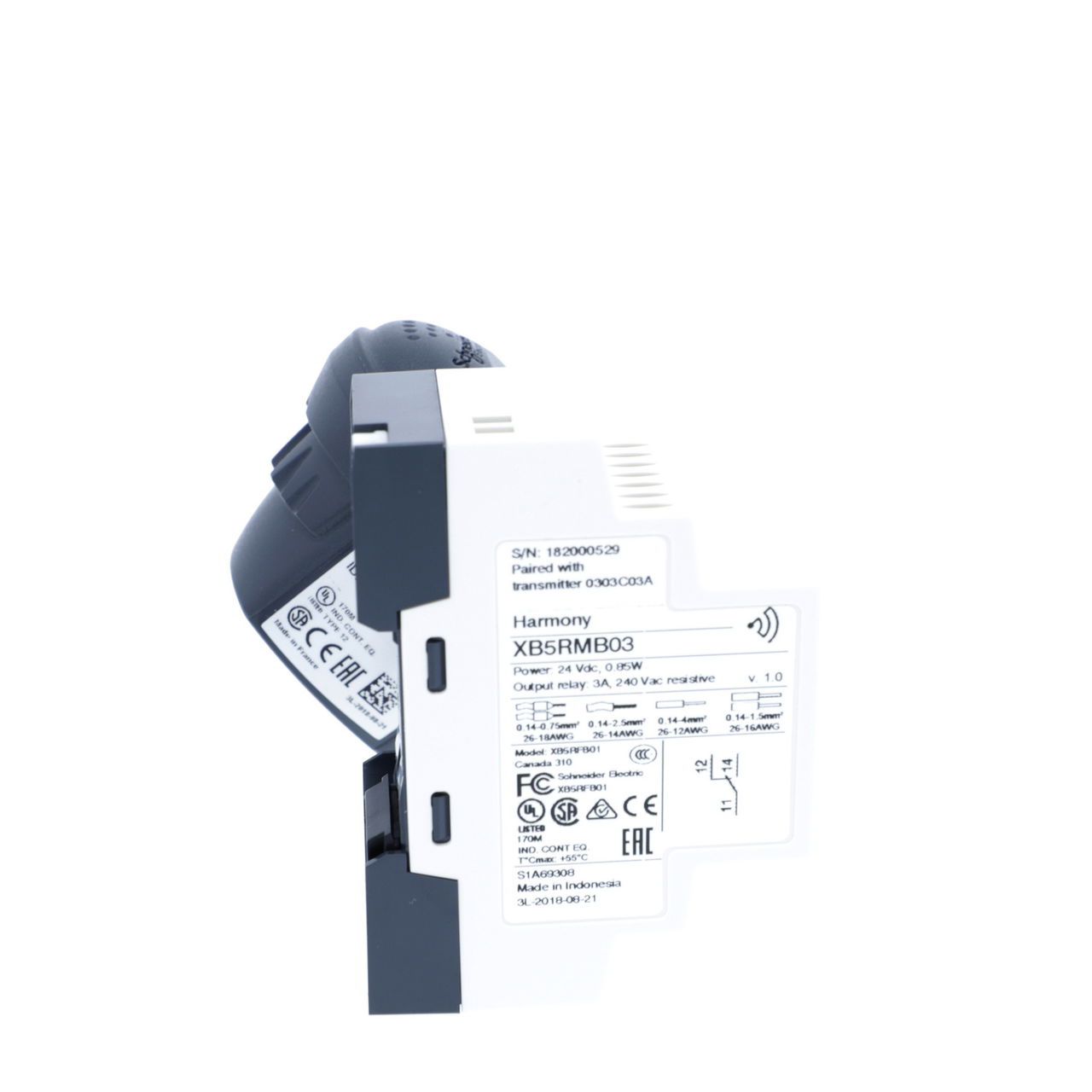

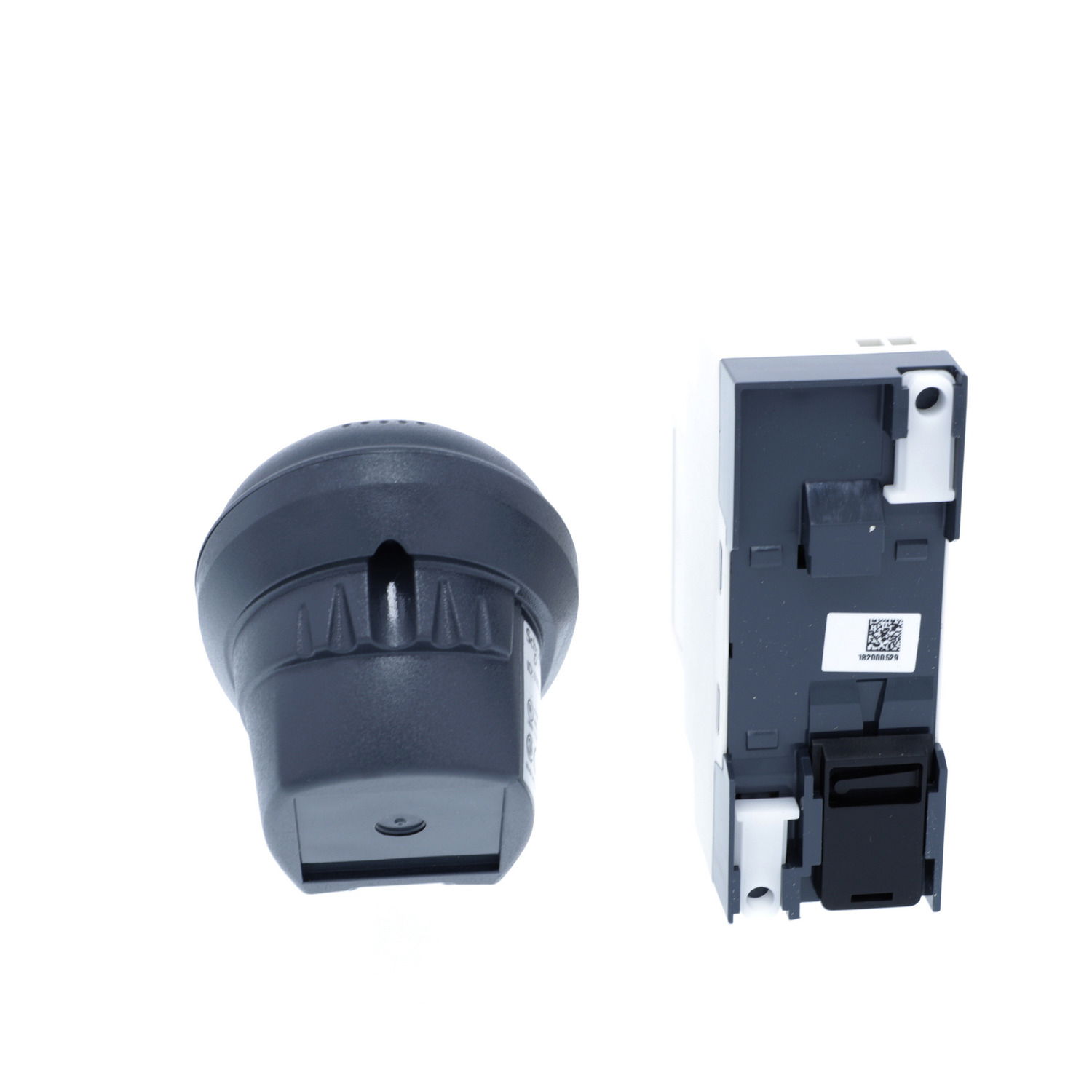

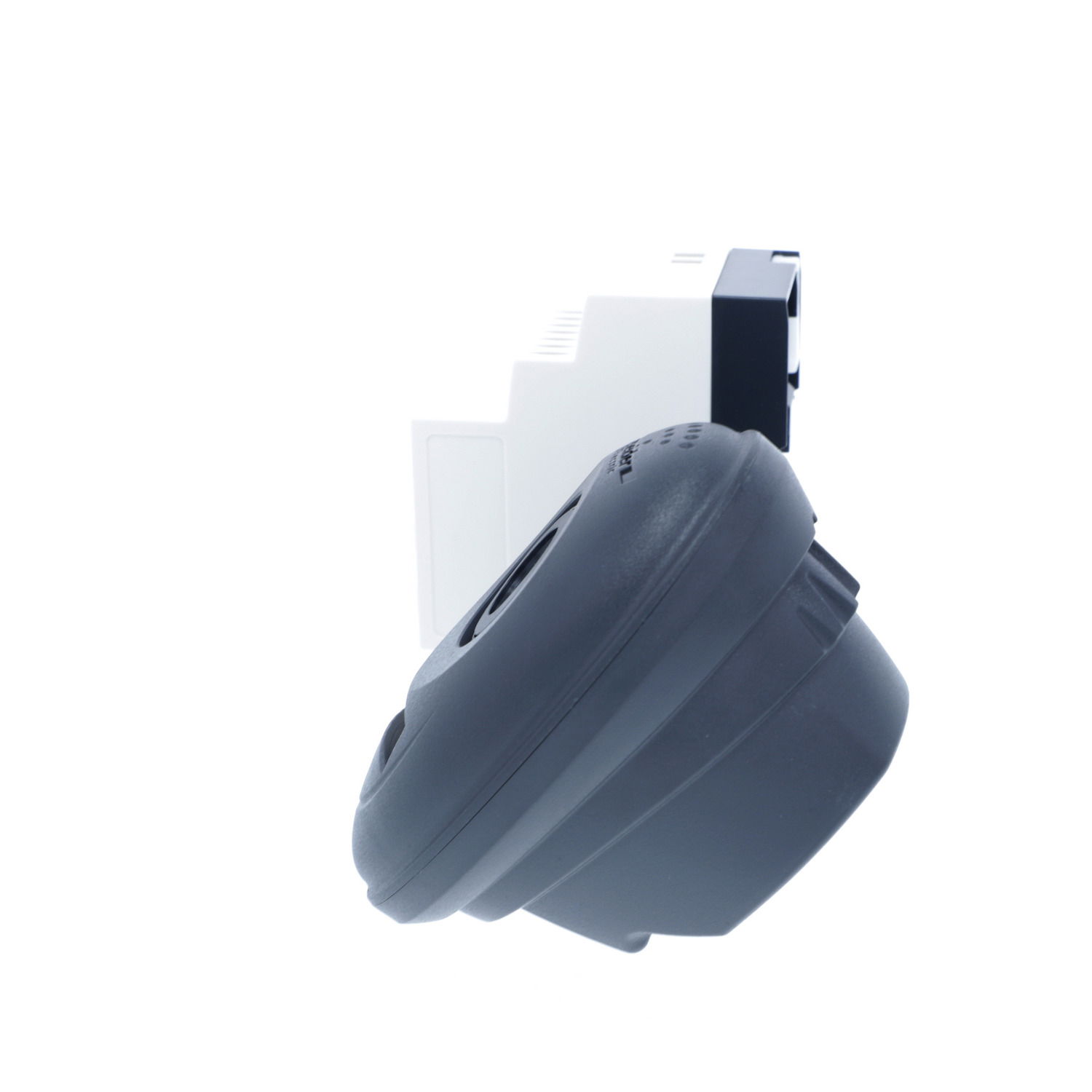

Pack with 1 wireless and batteryless plastic push button Ø22 + 1 non-configurable receiver + 1 set of caps, 24 V DC

Pack with 1 wireless and batteryless plastic push button Ø22 + 1 non-configurable receiver + 1 set of caps, 24 V DC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £202.96 to £204.99 excl. VAT. Voltimum+ members earn 25 points per unit.

This Harmony XB5, flush black wireless push button and receiver unitset is supplied with 24V DC input and is mounted in a plastic handybox. This wireless batteryless push button with handybox is ideal for standalone remote control of conveyor and unaccessible machines. It is delivered pre-mounted in a handy box which saves the need for assembly in a cabinet. The receiver is also DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.

Product identifiers

SKU: XB5RMB03
EAN: 3606480334467
GTIN: 3606480334467
MPN: XB5RMB03

Voltimum+ Loyalty Programme Loyalty points: 25

Price range: £ 202.96 - £ 204.99 Excl. VAT

Specifications

Transparent no
Colour button Black
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Combination
With front ring yes
Material front ring Plastic
Suitable for lighting no
Degree of protection (IP) IP65
Number of command positions 1
Type of electric connection Other
Number of contacts as normally open contact 0
