Schneider Electric

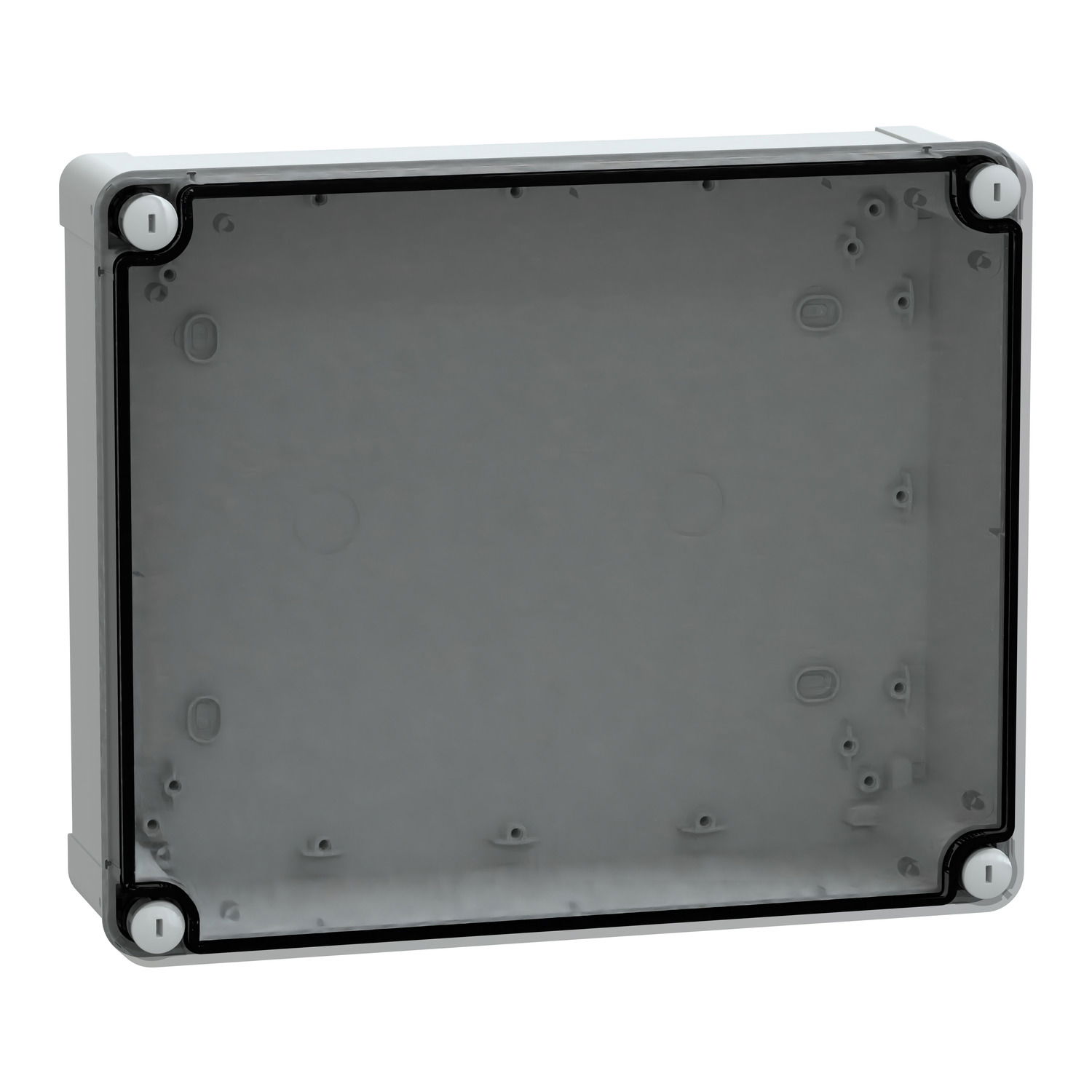

PC box IP66 IK08 RAL7035 Int.H275W225D80 Ext.H291W241D88 Transp.cover H20

PC box IP66 IK08 RAL7035 Int.H275W225D80 Ext.H291W241D88 Transp.cover H20 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 9 points per unit.

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 275 x 225 x 80 mm. Ext is 291 x 241 x 88 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Product identifiers

SKU: NSYTBP29248T
EAN: 3606480165887
GTIN: 3606480165887
MPN: NSYTBP29248T

Voltimum+ Loyalty Programme Loyalty points: 9

Price: £ 53.00 Excl. VAT

Categories

Weatherproof Enclosures Enclosures & Panels

ETIM group

Distribution boards

Specifications

Depth 88 mm
Width 241 mm
Colour Grey
Height 291 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 80 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door yes
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -

Documents

Deeplink product page

Open

Instruction sheet

PanelSeT TBP TBS - Insulated Industrial Box - Instruction sheet

Open

Product data sheet

Open

Environmental compliance declaration

NSYTBP29248T EU RoHS Declaration

Open

Declaration of conformity

Declaration of Conformity NSYTBS and NSYTBP ranges

Open

Environmental disclosure

PanelSeT TBP

Open

Circularity Profile

EoLI-PanelSeT TBP

Open
