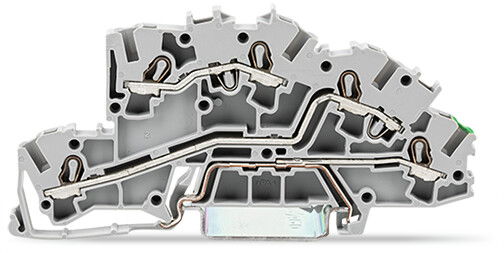

Multilevel installation terminal block with operating slots 2.5 mm² gray

Name: Multilevel installation terminal block with operating slots 2.5 mm² gray
Brand: Wago
SKU: 2003-7645
Availability: InStock

Multilevel installation terminal block; with operating slots; 2.5 mm²; L/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product identifiers

SKU: 2003-7645

EAN: 4044918925600

GTIN: 4044918925600

MPN: 2003-7645

Loyalty points: 3 (x50)

Price range: £ 1.98 - £ 3.04 Excl. VAT

Terminal blocks

Specifications

Depth	42.3
Width	5.2
Height	96
PE-function	yes
Basic colour	Grey
Rated voltage	400
Mounting method	DIN rail (top hat rail) 35 mm
Rated current In	32
N function possible	no
Number of potentials	3
Operating temperature	-35 - 85
Closing plate required	yes
With N-disconnect slide	no
Material insulation body	Thermoplastic
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Connectable conductor cross section solid-core	0.75 - 4
Connectable conductor cross section multi-wired	0.25 - 2.5
Inflammability class of insulation material according to UL94	V0
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 4
