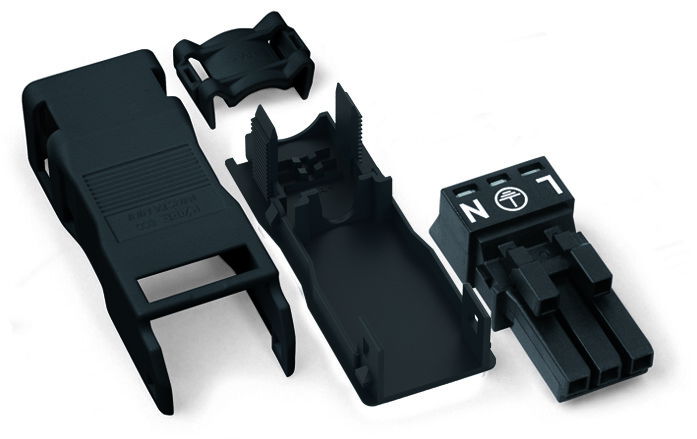

Socket with strain relief housing 3-pole black

Name: Socket with strain relief housing 3-pole black
Brand: Wago
SKU: 890-103
Availability: InStock

Socket; with strain relief housing; 3-pole; Cod. A; 1,50 mm²; black

Product identifiers

SKU: 890-103

EAN: 4045454232856

GTIN: 4045454232856

MPN: 890-103

Price range: £ 3.42 - £ 3.82 Excl. VAT

Specifications

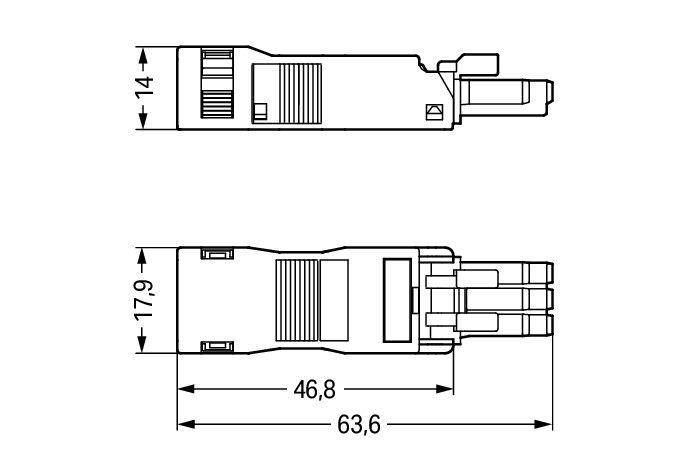

Model	Bus
Width	17.9
Height	14
Length	63.6
Fire load	0.05222
Halogen free	yes
Rated current	16
Rated voltage	250
Cable diameter	4.5 - 10
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N, PE
With strain relief	yes
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	1
RAL-number coding/contact insert	9004
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
