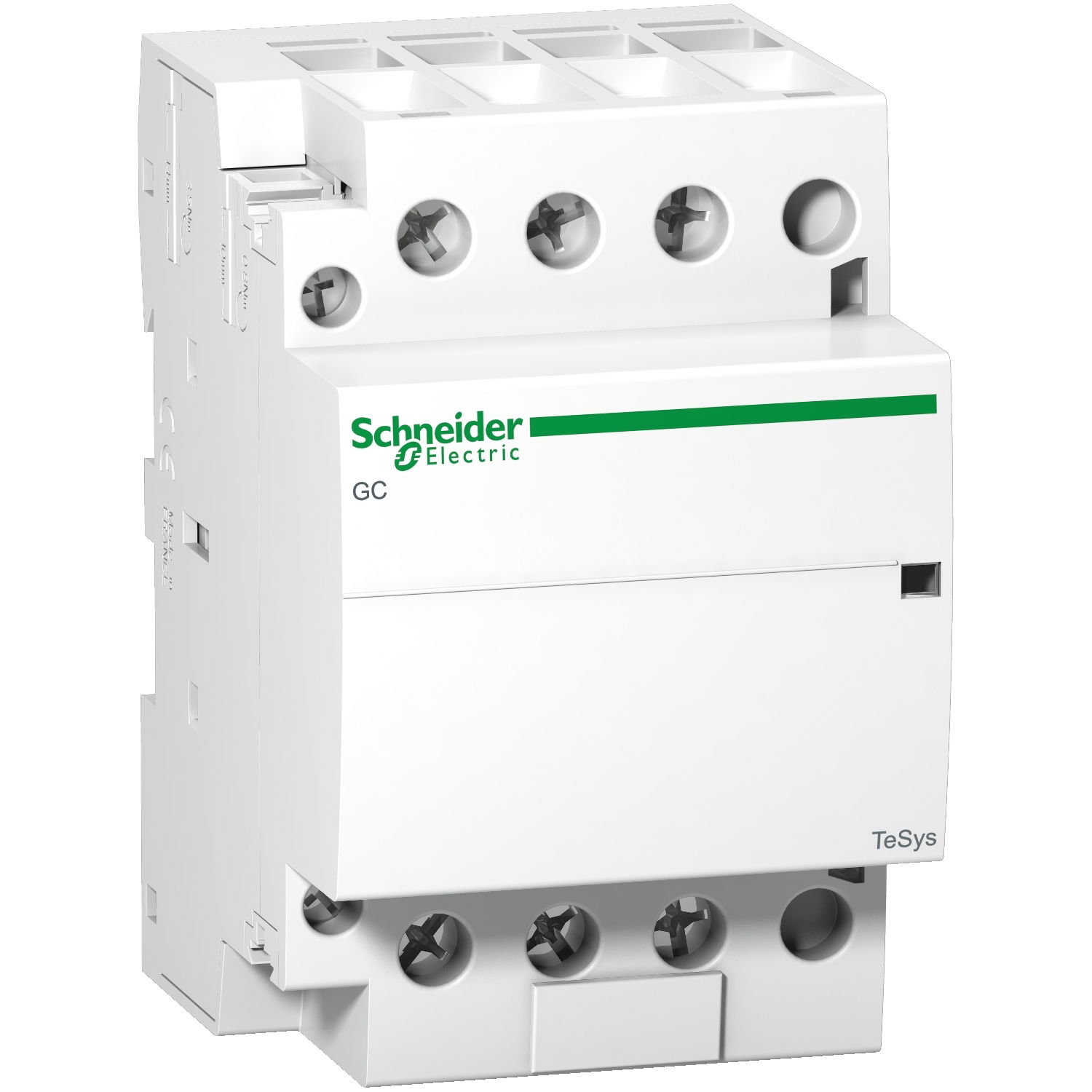

TeSys GC - modular contactor - 40 A - 3 NO - coil 220...240 V AC

Link copied

SKU
EAN
GTIN
MPN

TeSys GC - modular contactor - 40 A - 3 NO - coil 220...240 V AC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £108.12 to £118.06 excl. VAT. Voltimum+ members earn 13 points per unit.

TeSys GC modular contactor, 3 poles (3NO), 40A/415V AC-7a (heating) and 15A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).

Loyalty points: 13

Price range: £ 108.12 - £ 118.06 Excl. VAT

Specifications

Hum-free	yes
Built-in depth	62.5 mm
Slider for hand switch	no
Rated operating voltage
Rated operation current	40 A
With day/night function	yes
Rated excitation voltage
Degree of protection (IP)	IP20
Max. load fluorescent lamp	2200 VA
Max. incandescent lamp load	5100 W
Additional equipment possible	yes
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Width in number of modular spacings	54
Max. load fluorescent lamp (Duo circuit)	1800 VA
Number of contacts as normally open contact	3
Number of contacts as normally closed contact	0
Max. load fluorescent lamp (parallel compensated)	1600 VA
Utilization category according to EN IEC 60947-4-1	AC-7a

Documents

Declaration of Conformity (Sustainability)

GC4030M5 REACh Regulation
