Pro Charger DC
Sync Energy EV DC Pro Charger 30kW with Payment Terminal

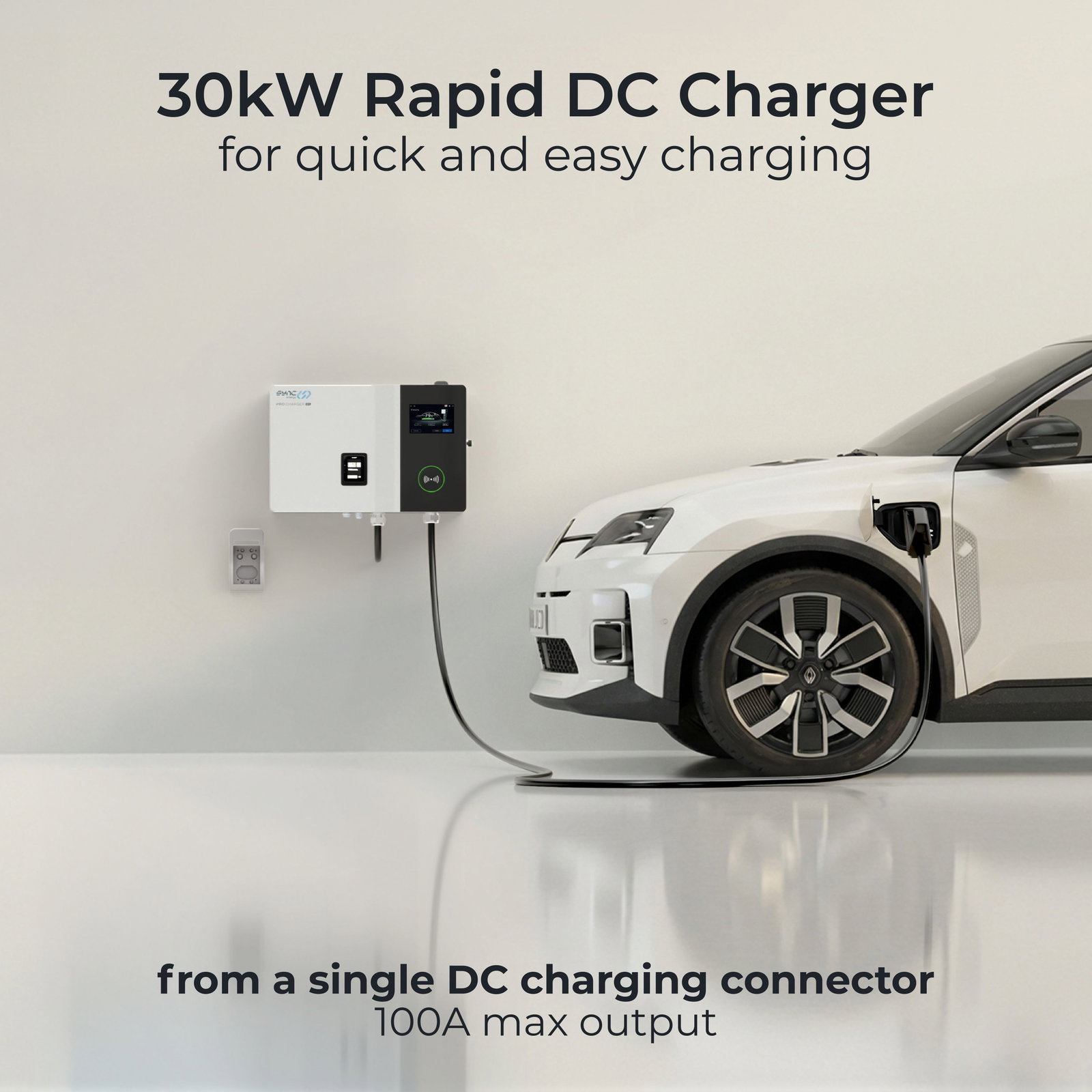

- Rapid 30kW DC Charging: Delivering up to 100A output with 95% efficiency from a CCS connector, ensuring fast and reliable energy transfer. Ideal for commercial fleets and public charging stations.

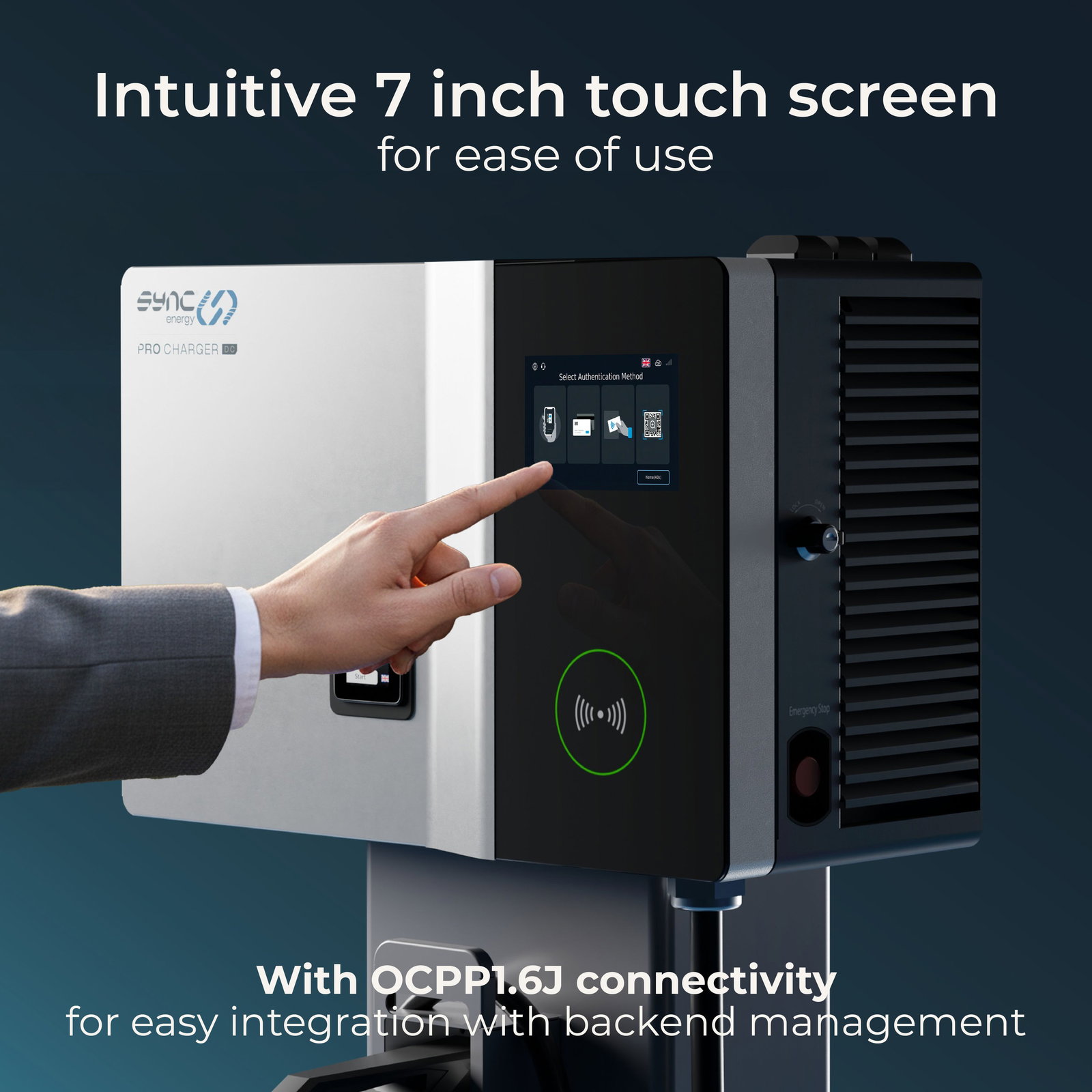

- Intuitive 7-Inch Touchscreen Interface: Simplifies installation, configuration and testing aswell as user-friendly operation. Select from multiple languages and integrates with RFID authentication.
- OCPP 1.6J Connectivity: Equipped with 4G, Wi-Fi, Ethernet, and a payment terminal, it connects effortlessly and supports remote monitoring, smart charging, and customisation via the Monta app.

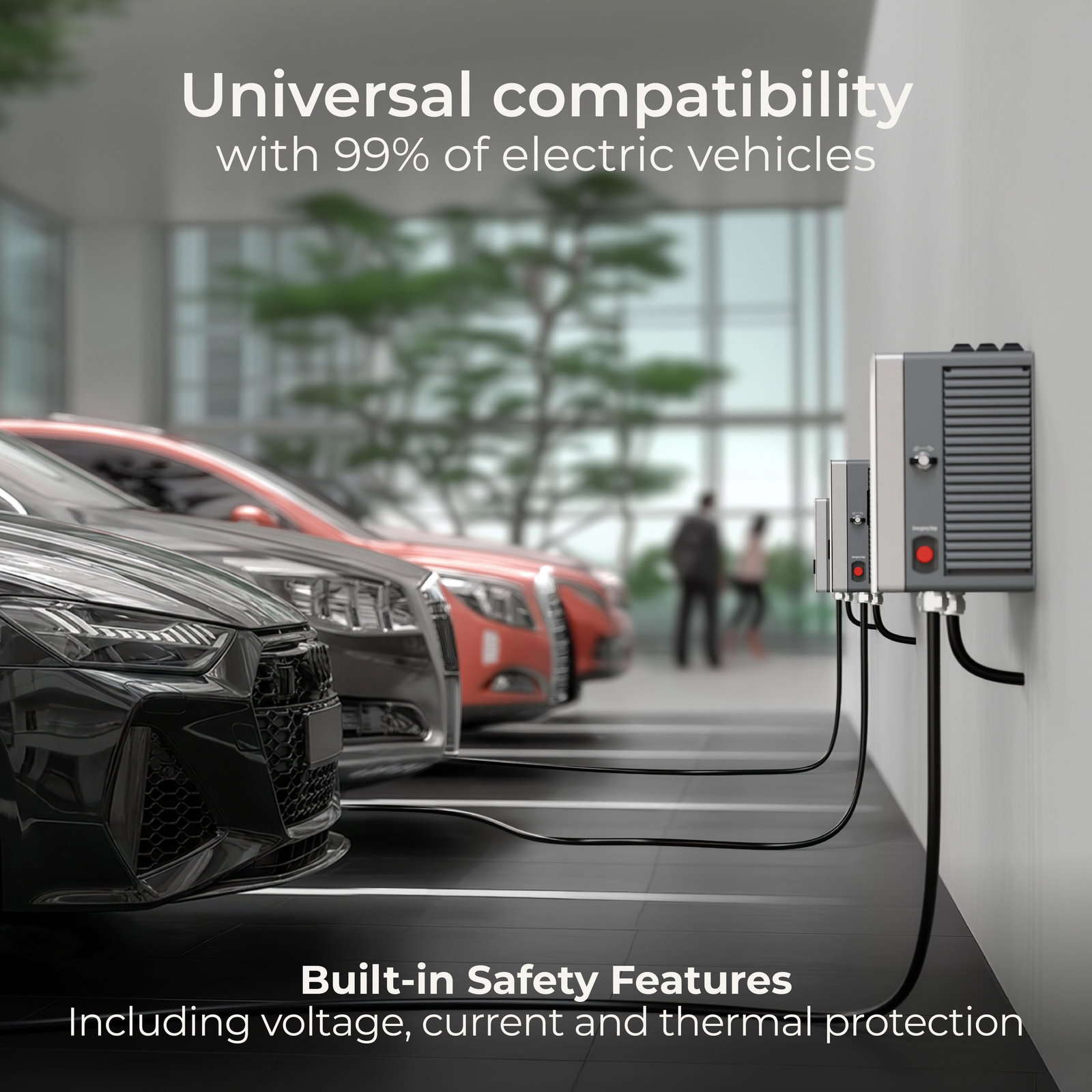

- High Safety Protection: Built-in premium safety features including under/overvoltage, DC overcurrent, over-temperature and surge protection. Compatible with most EV car brands.

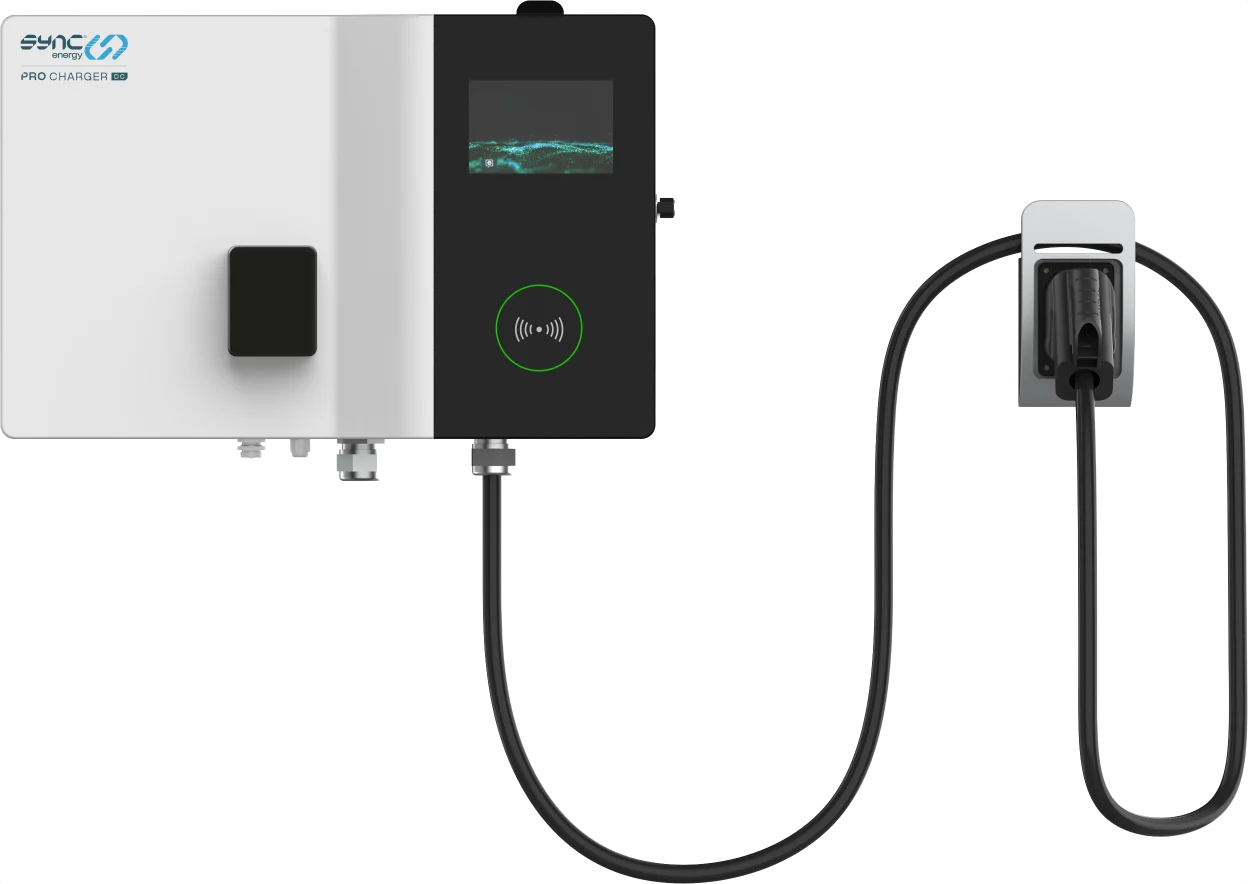

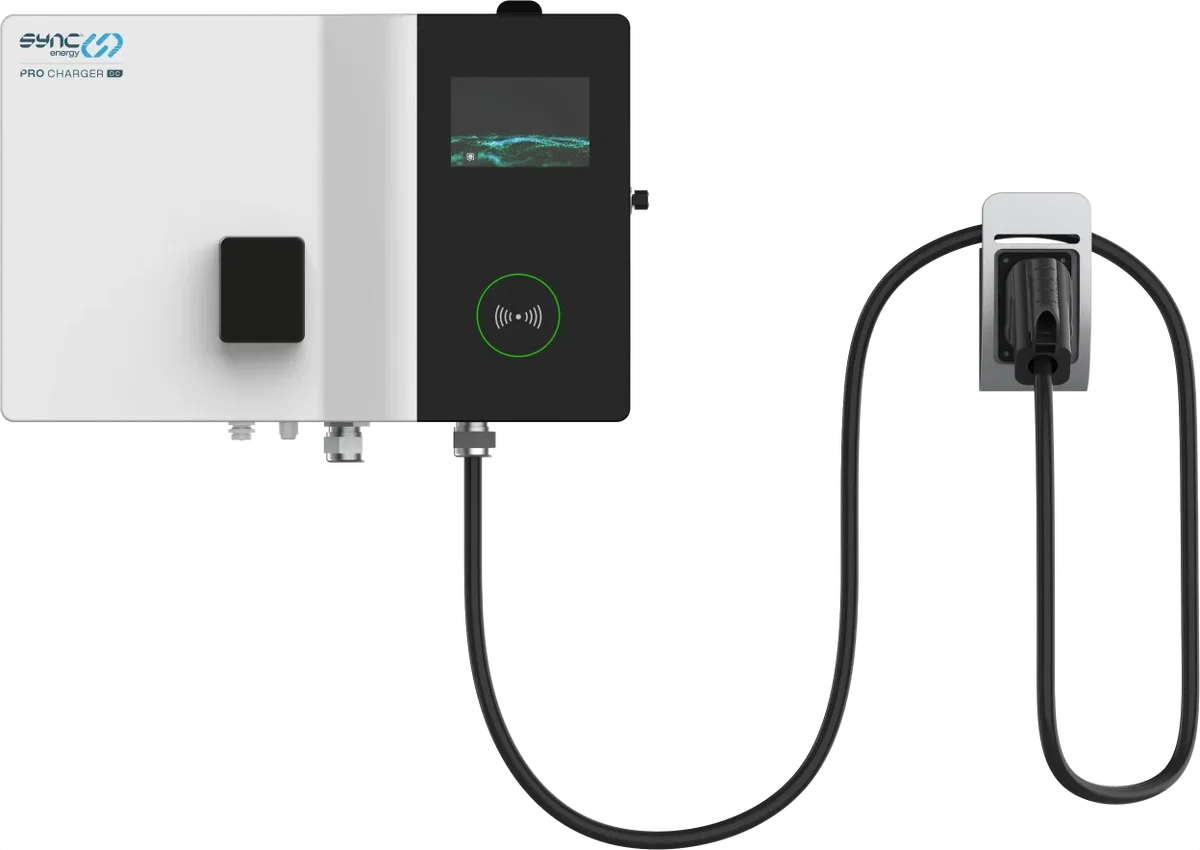

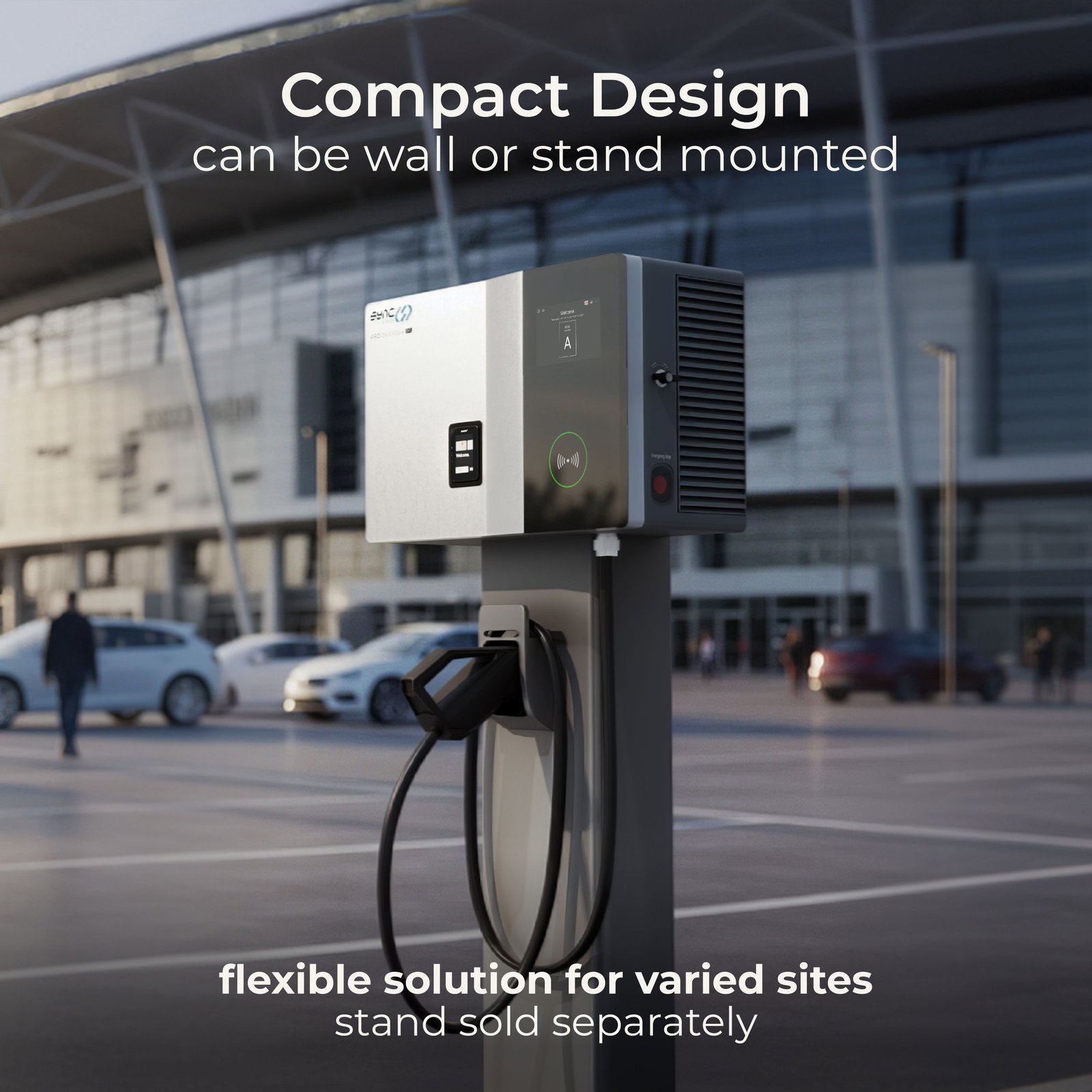

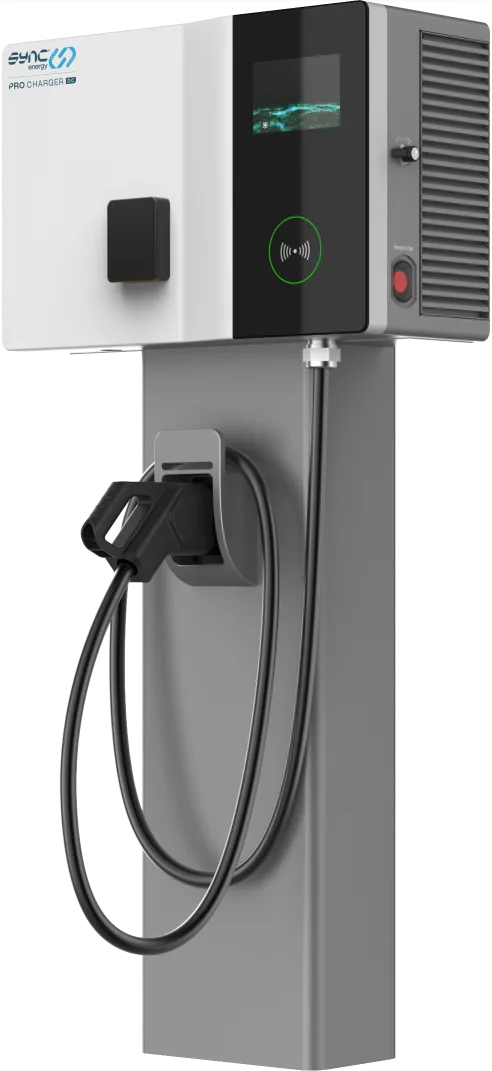

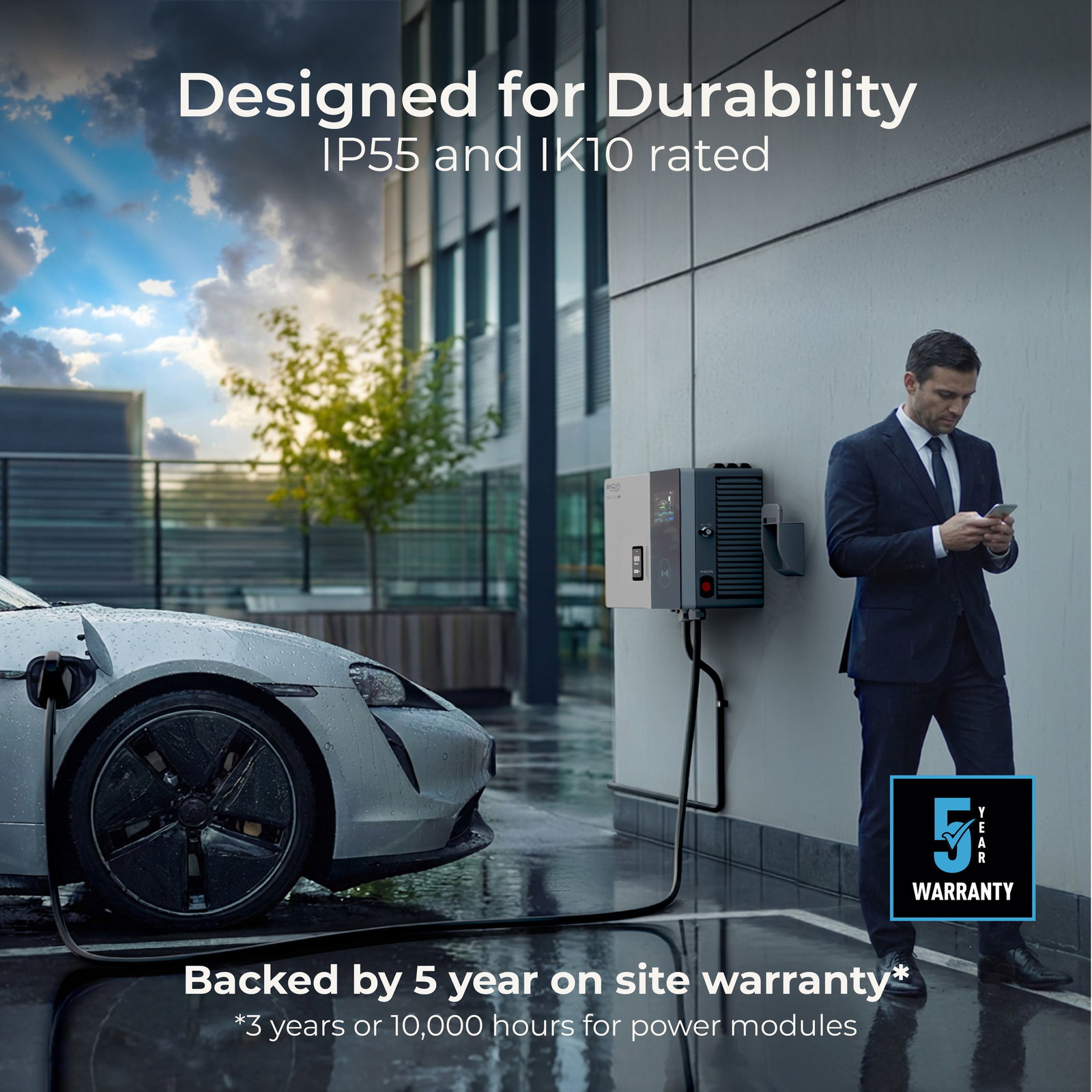

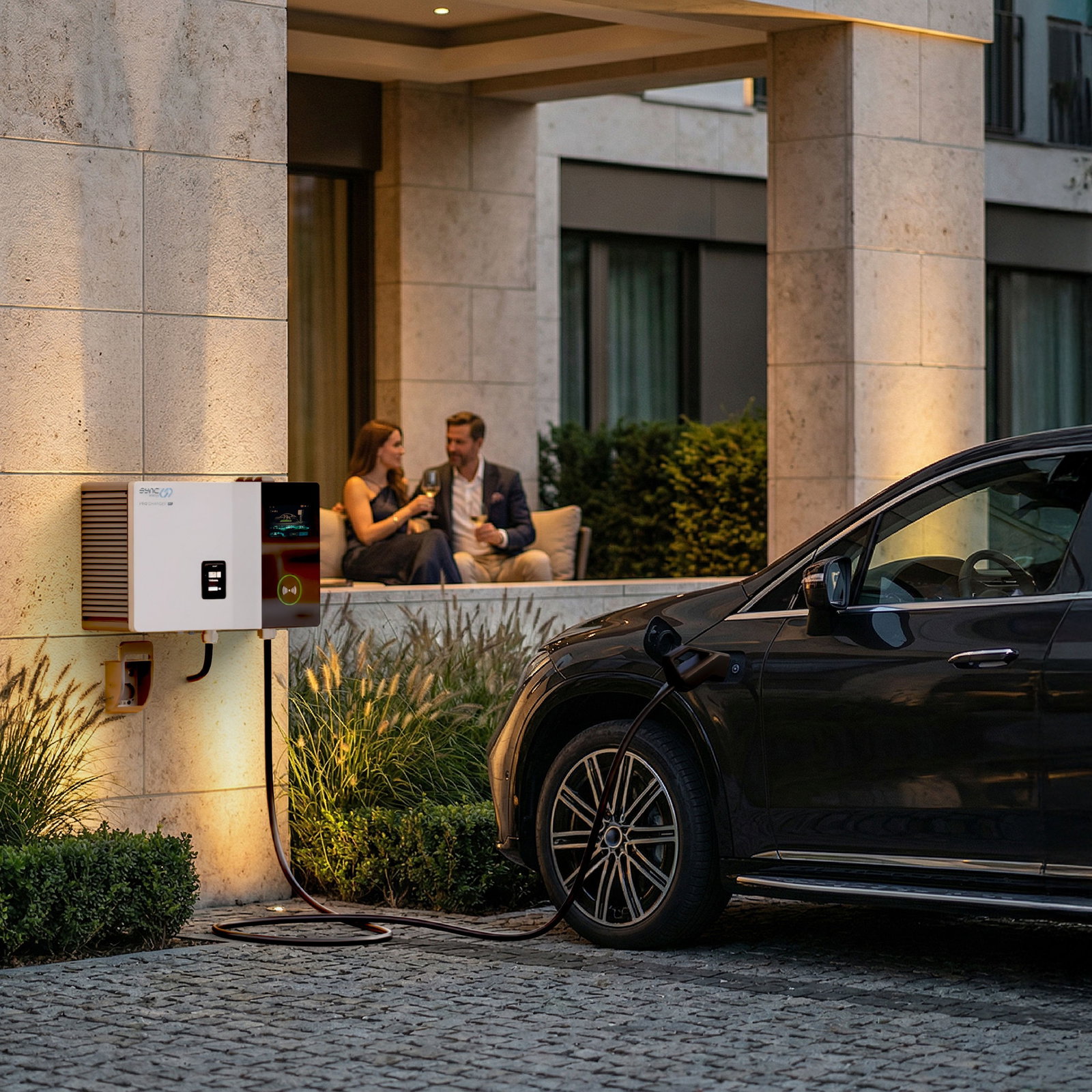

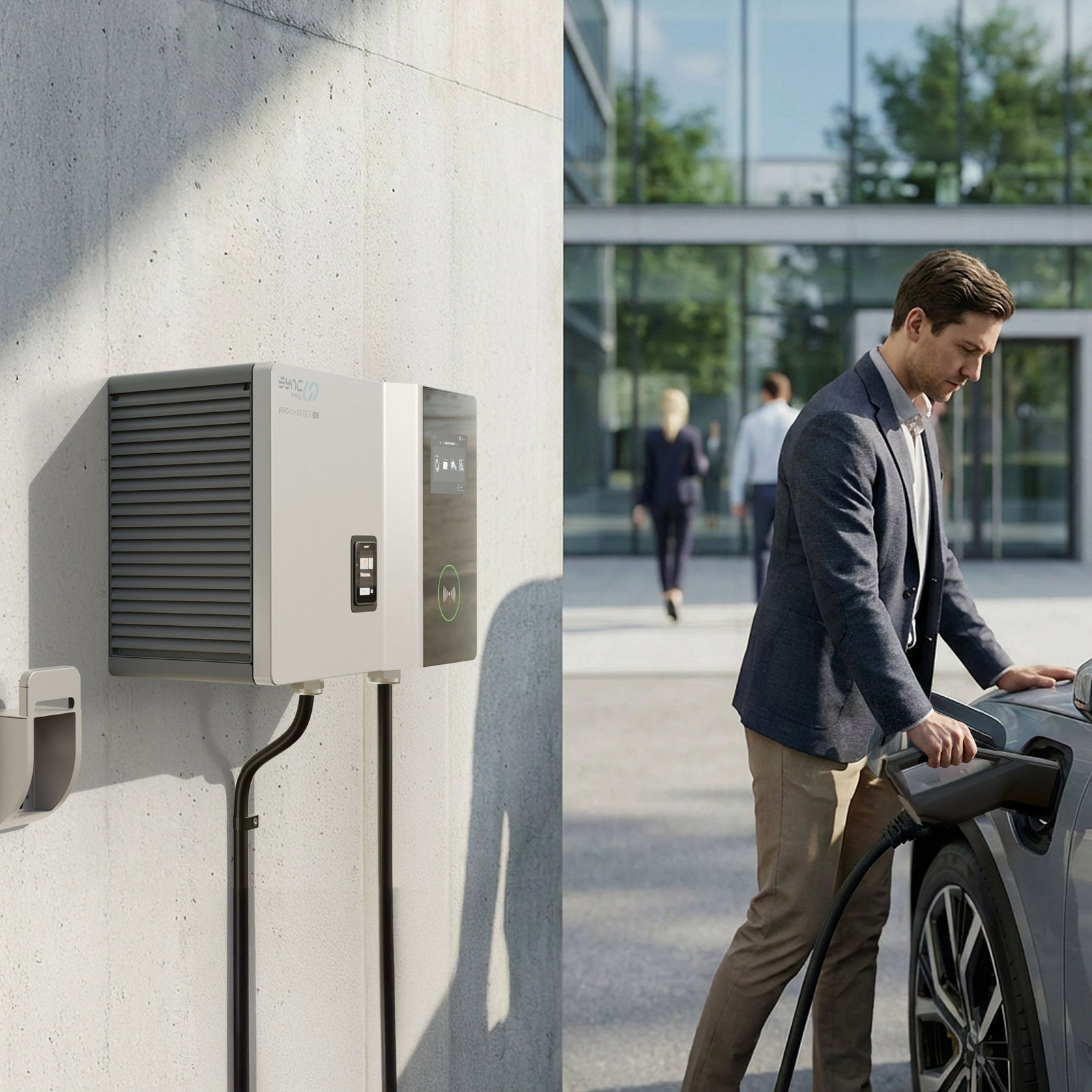

- Flexible Compact Design: Compact wall or stand mounted design (stand sold separately). With its IP55 weather and IK10 impact-rated, it's suitable for different types of outdoor installations.
Product identifiers
SKU: EVPDCW30BGRP-01
MPN: EVPDCW30BGRP-01
Categories
Specifications
Dimensions
| Product HxWxD (mm) | 440x680x320 |
| Product Weight (kg) | 35 |
Construction
| Number of Sockets | 2 |
| Switch Position | Outboard |
| Housing Material | Aluminium |
| Base Material | Aluminium |
| Base Finish | Powder Coated |
| Screen Size | 7" |
