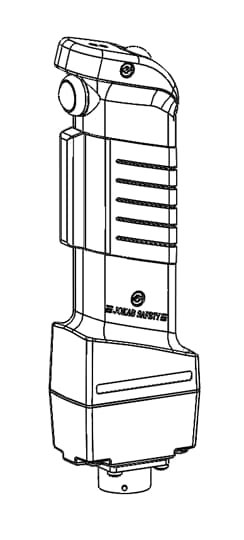

JSHD4-2-AB Three-position handheld device - Complete

Link copied
SKU
EAN
GTIN
MPN

JSHD4-2-AB Three-position handheld device - Complete by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £454.46 excl. VAT. Voltimum+ members earn 243 points per unit.

The JSHD4-2-AB is an ergonomic three-position device which top part has LEDs, a front button and a top button, and which bottom part is equipped with a Cannon connector. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.

Voltimum+ Loyalty Programme Loyalty points: 243

Price: £ 454.46 Excl. VAT

Specifications

Forced opening no
With status indication yes
Degree of protection (IP) IP65
Type of switching contact Other
Degree of protection (NEMA) 1
Type of electric connection Connector connection
Number of extra push buttons 2
Suitable for safety functions yes
Rated operation current Ie at AC12, 24 V -
Rated operation current Ie at AC12, 125 V -
Rated operation current Ie at DC-12, 24 V 0.02
Number of contacts as normally closed contact 0

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

JSHD4_Manual_(EN)_revI_2TLC172072M0201.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Declaration of conformity_JSHD4_JSHD2C_JSHD4H2_(EN)_2022_revD_2TLC172022D0201.pdf

Open
