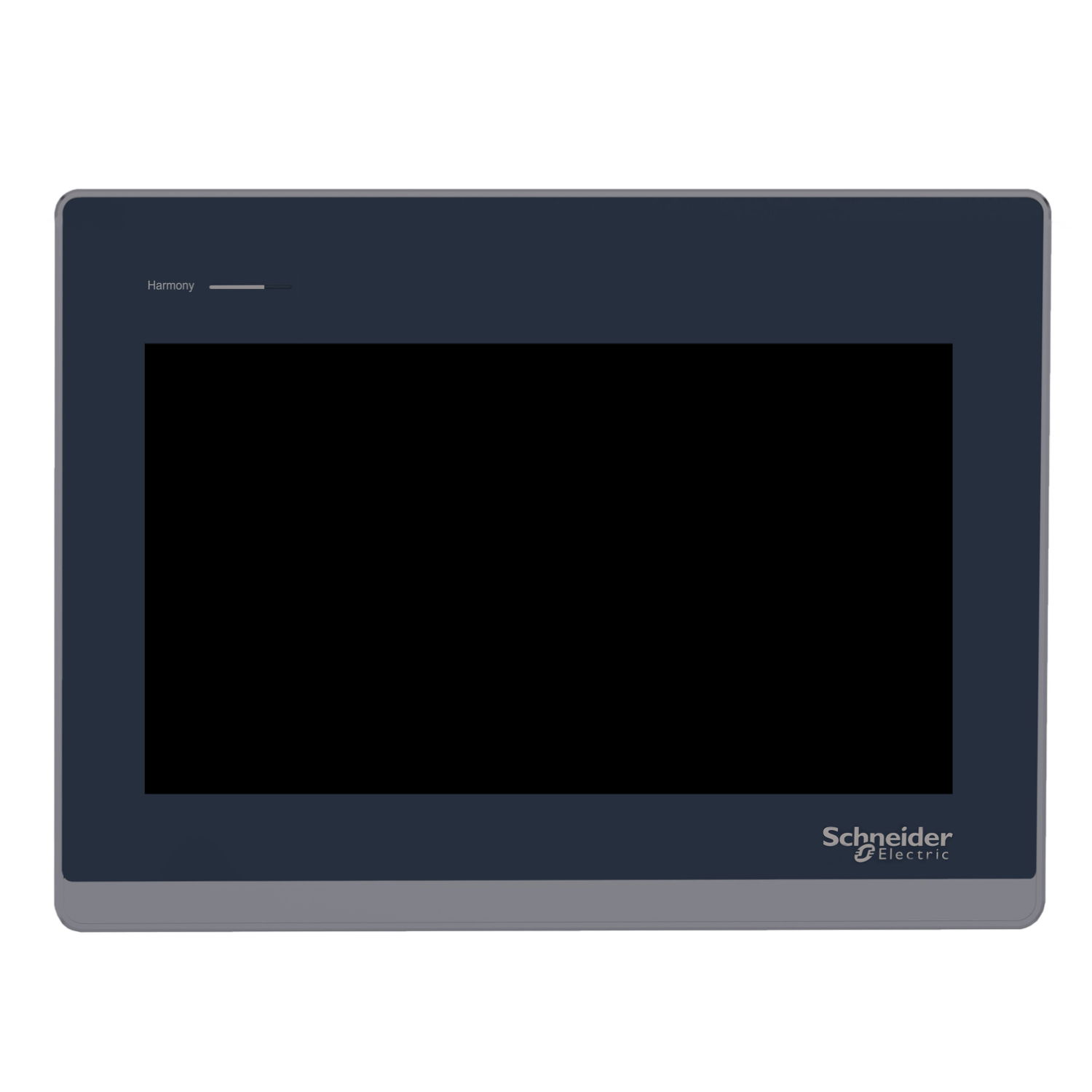

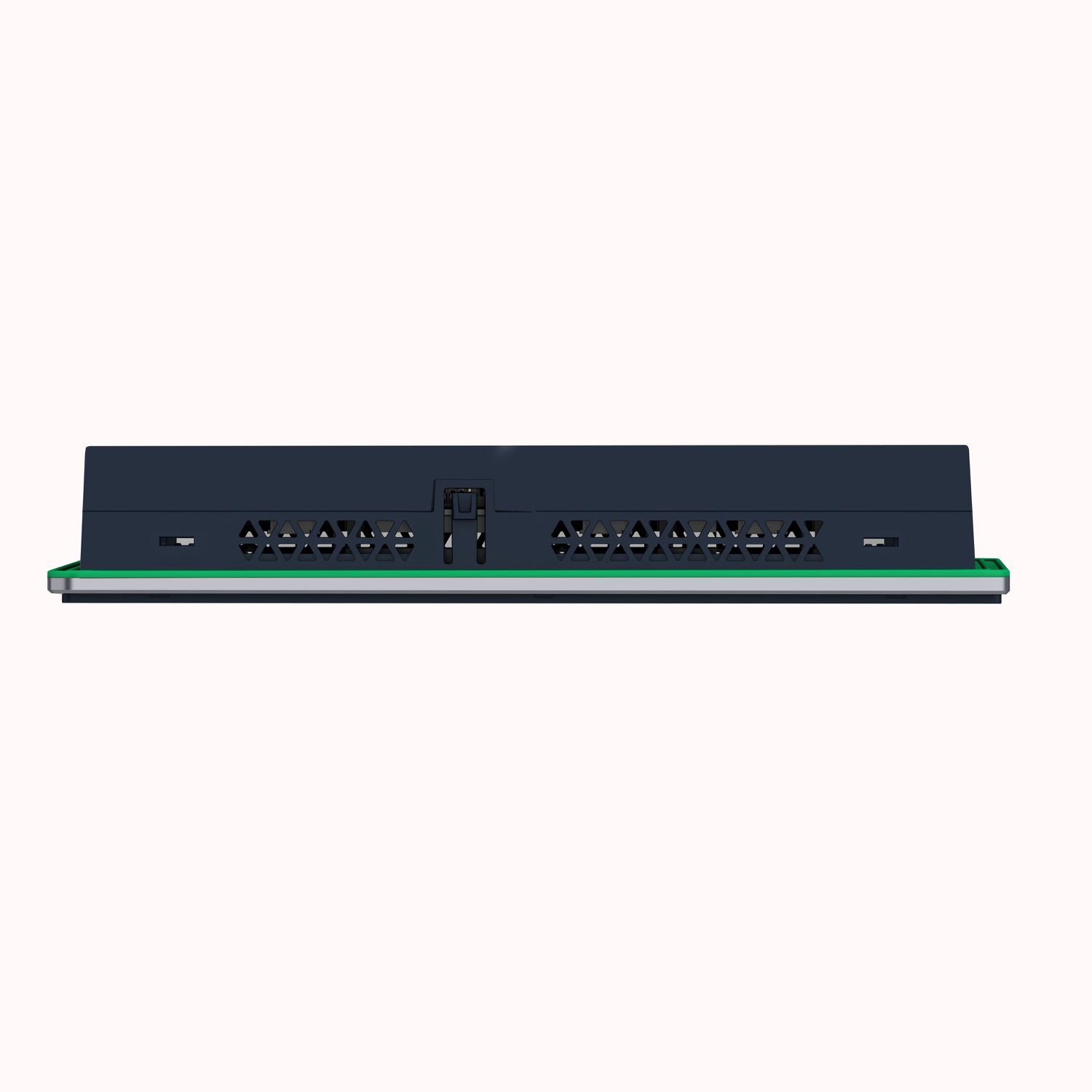

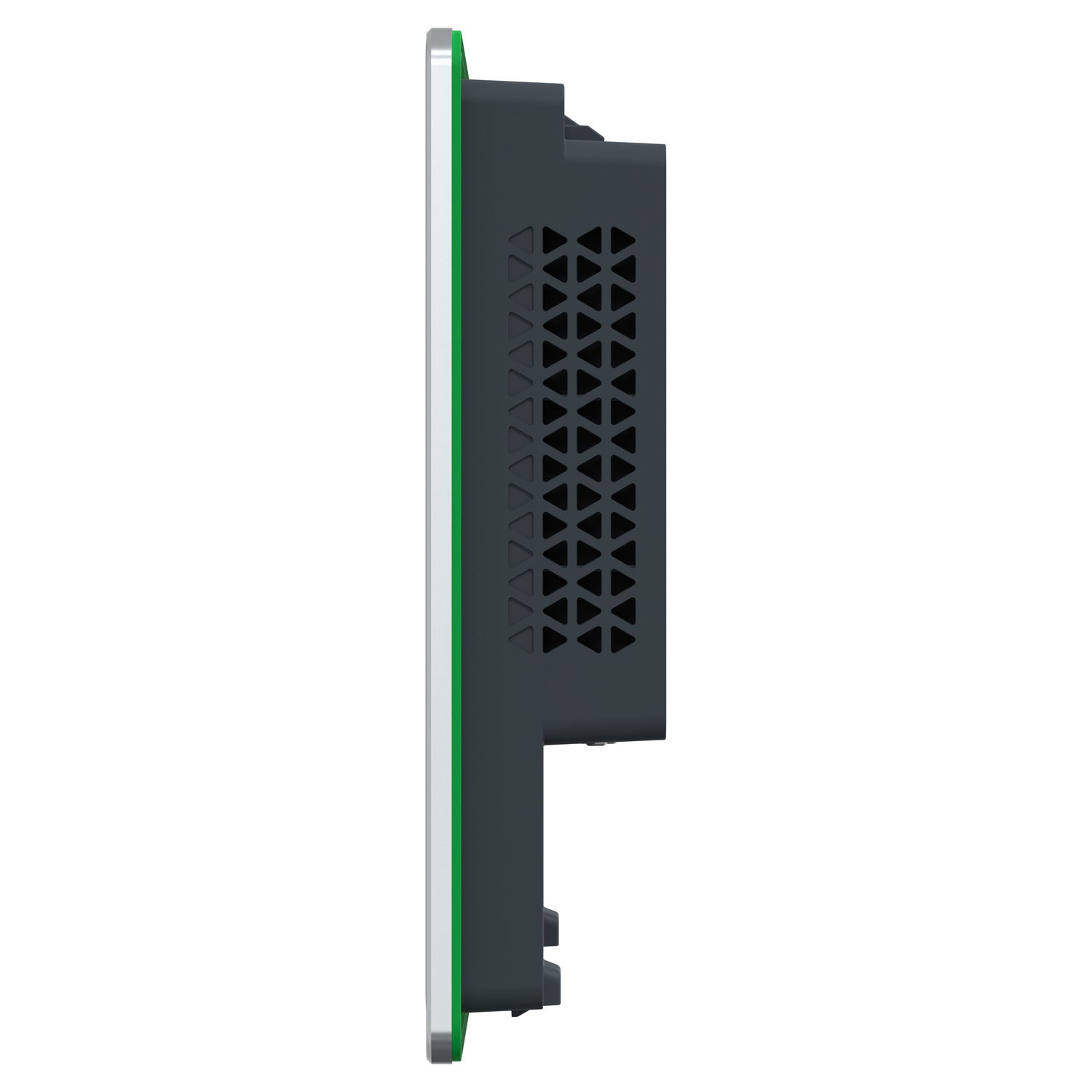

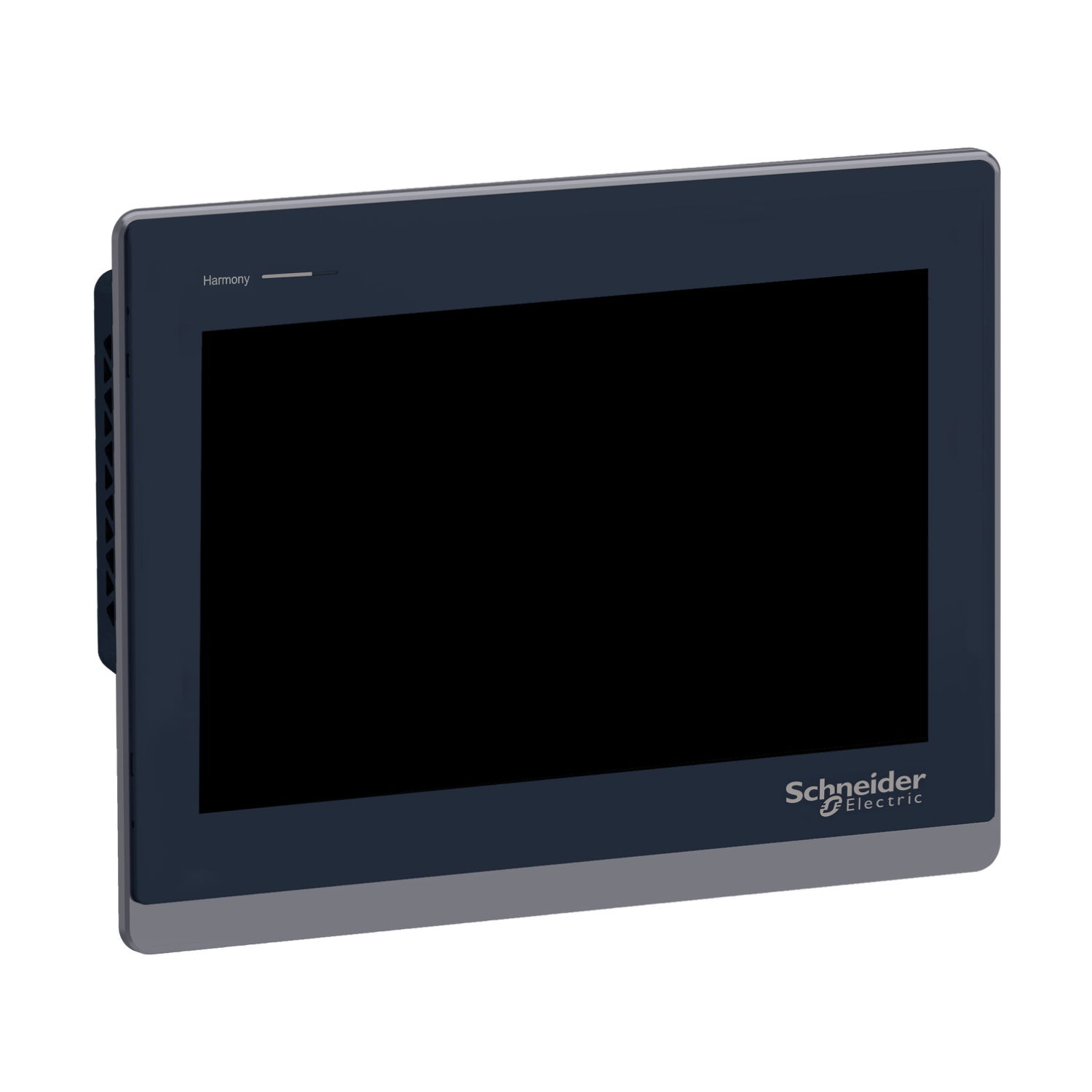

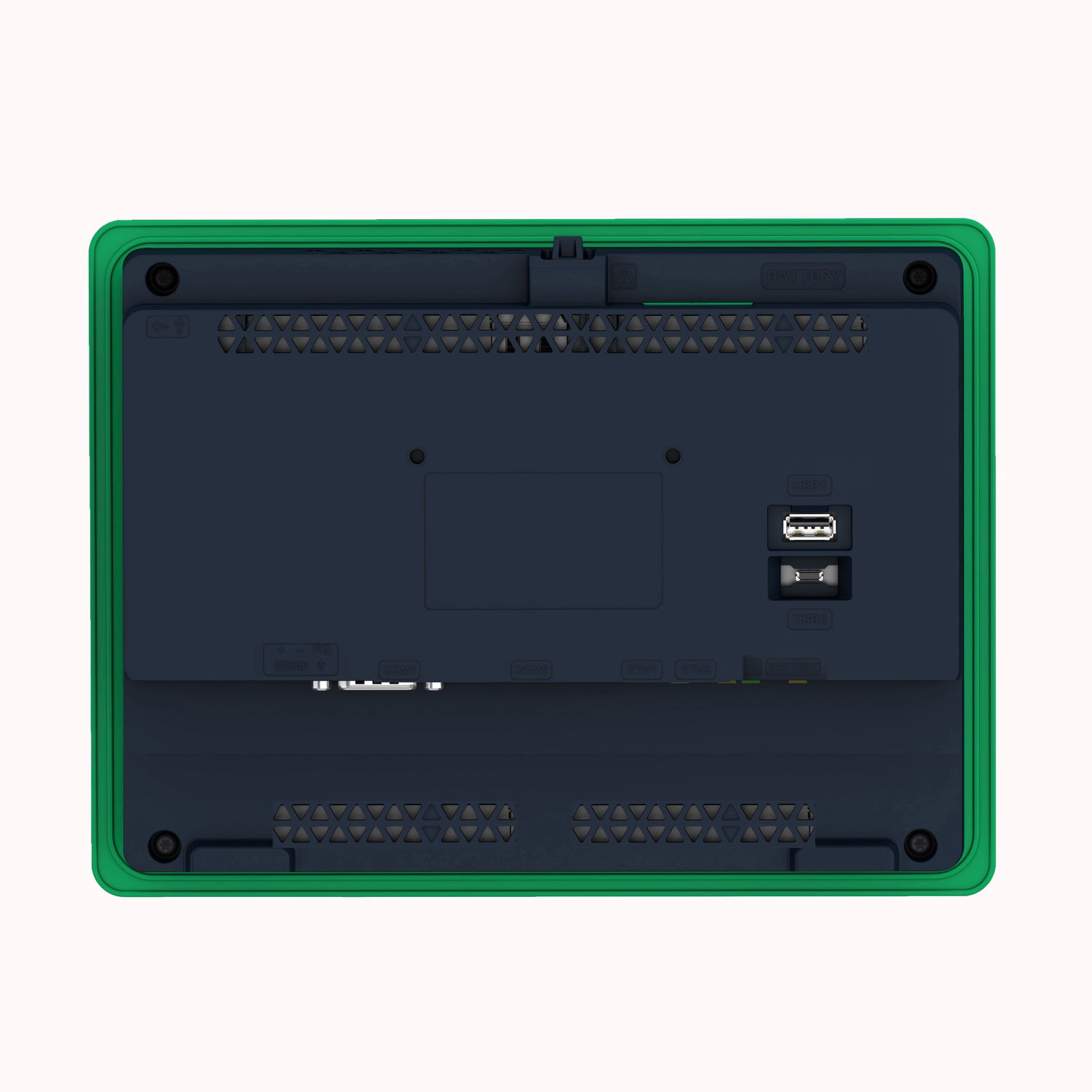

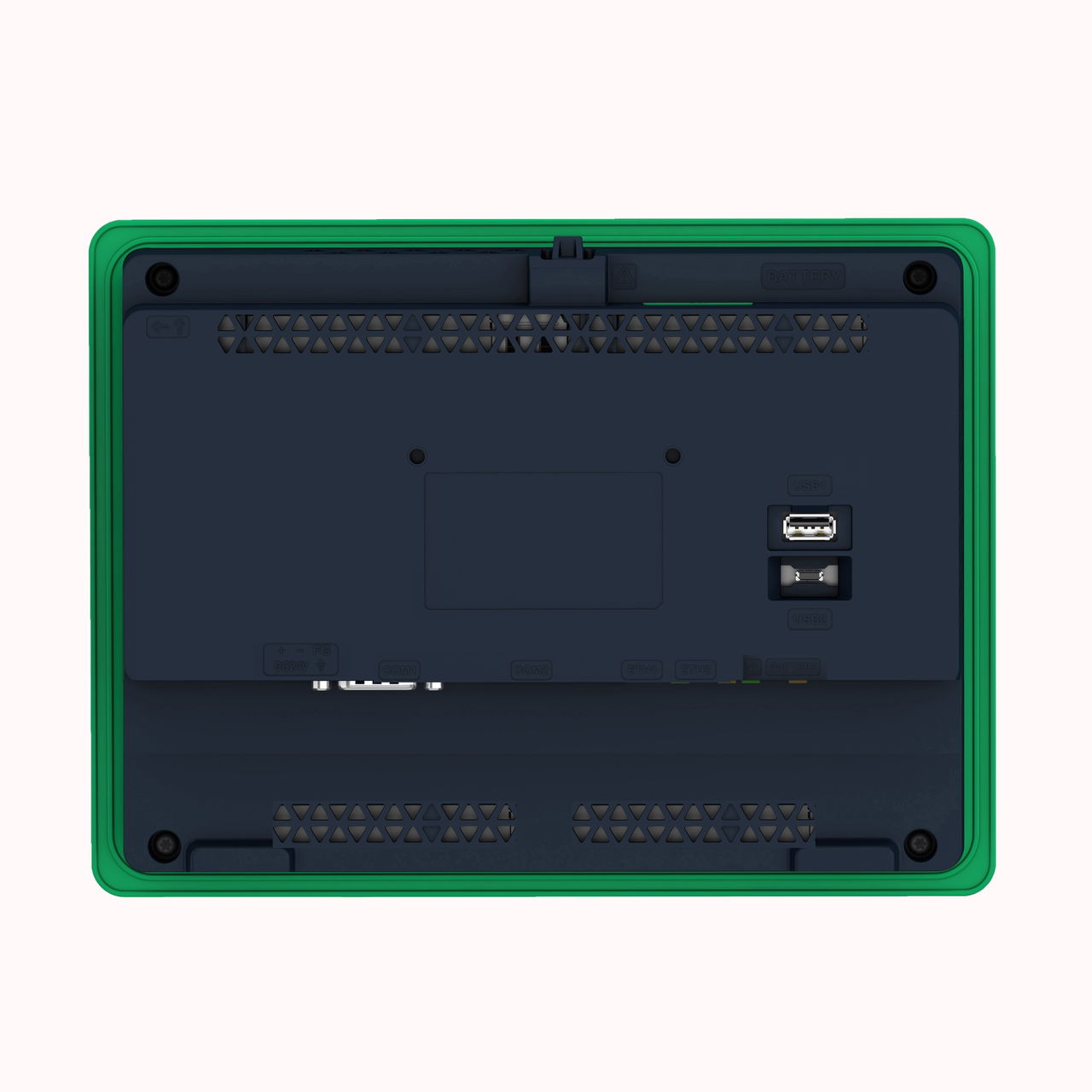

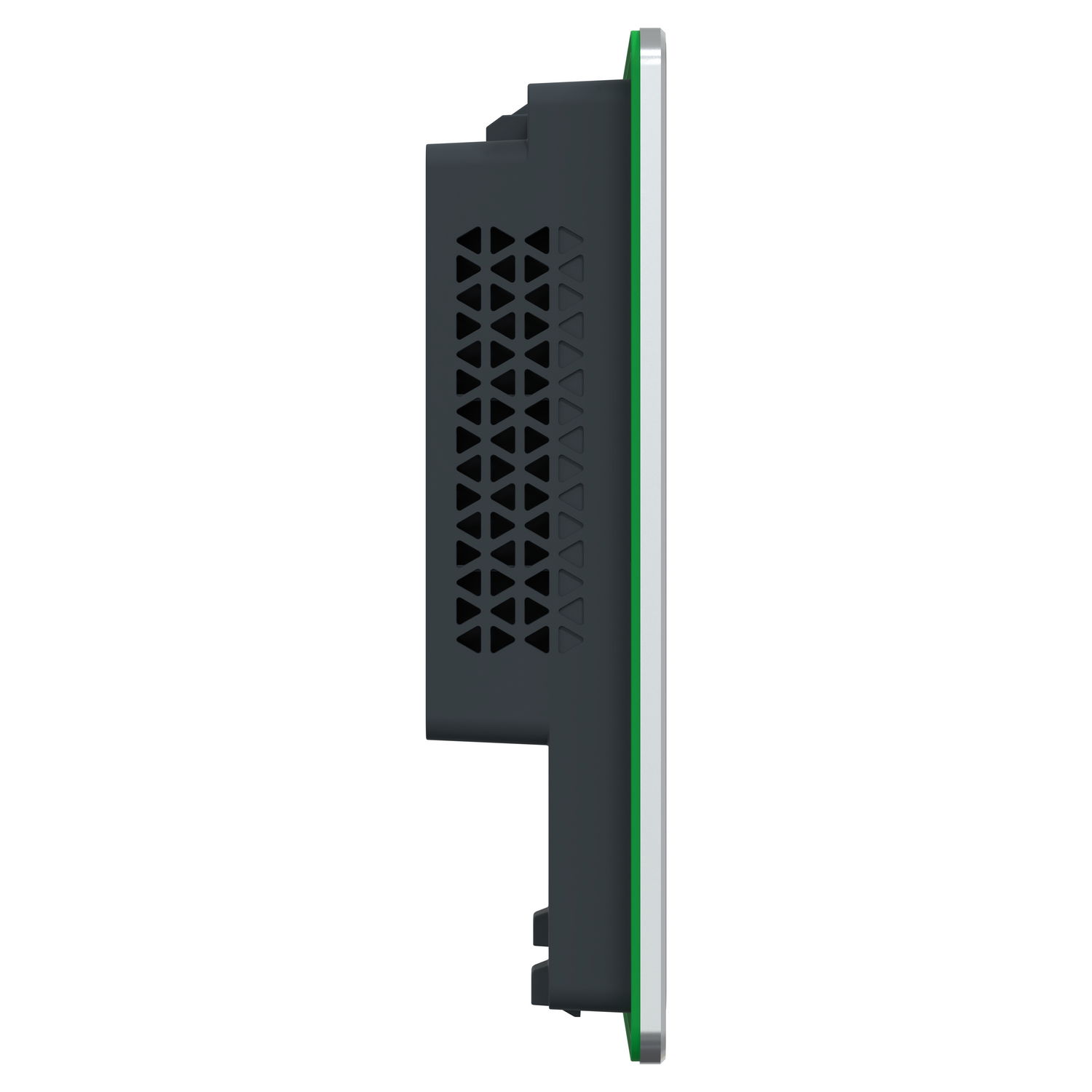

Touch panel screen, Harmony ST6, 10"W display, 2COM, 2Ethernet, USB host&device, 24 VDC

Touch panel screen, Harmony ST6, 10"W display, 2COM, 2Ethernet, USB host&device, 24 VDC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £1,373.00 to £1,714.16 excl. VAT. Voltimum+ members earn 223 points per unit.

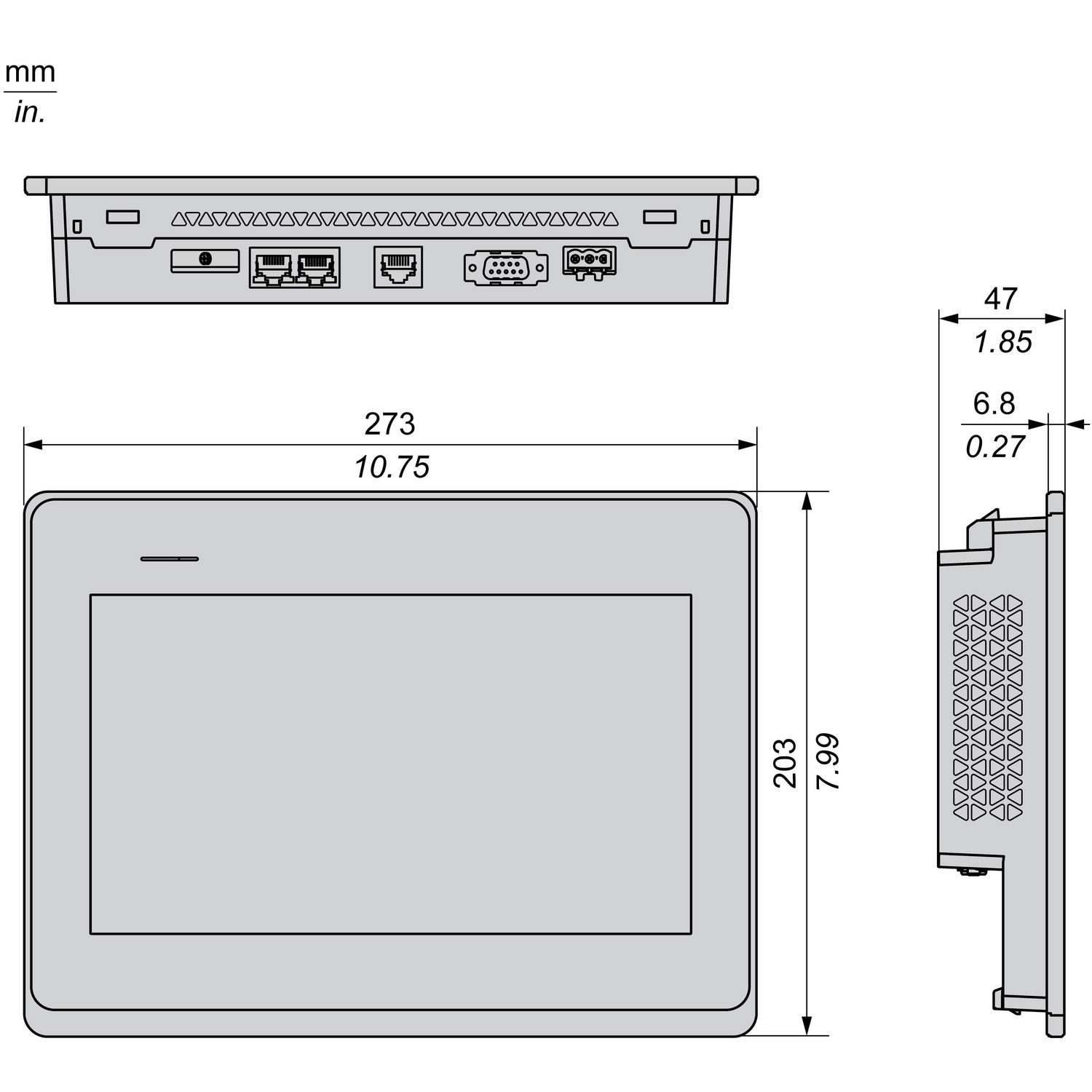

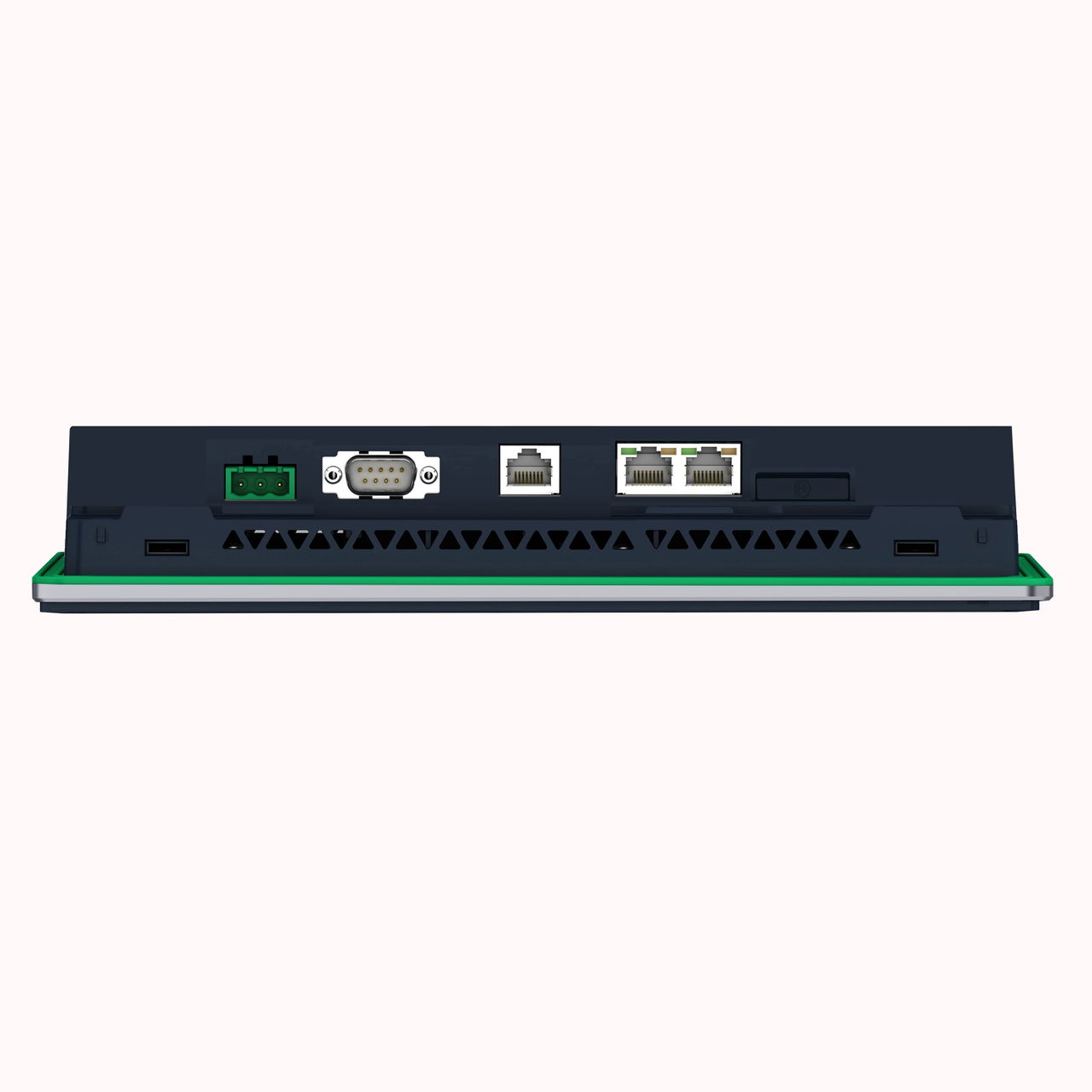

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Product identifiers

SKU: HMIST6500
EAN: 3606489523398
GTIN: 3606489523398
MPN: HMIST6500

Voltimum+ Loyalty Programme Loyalty points: 223

Price range: £ 1,373.00 - £ 1,714.16 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

With recipes -
Built-in depth 47 mm
Colour display yes
IO link master no
Screen diagonal 10 inch
Type of display TFT
Touch technology Resistive touch
Power consumption 12.6 W
Radio standard GSM no
With SW interfaces yes
Radio standard GPRS no
With printer output -
With numeric keyboard no
Supply voltage AC 60 Hz
Number of system buttons 0
Number of password levels -
Number of online languages -
Radio standard WLAN 802.11 no
Number of HW-interfaces USB 2
Supporting protocol for CAN no
Supporting protocol for LON no
Number of pixels, horizontal 1024
Number of interfaces PROFINET 0
Voltage type (supply voltage) DC
Number of HW-interfaces RS-232 1
Number of HW-interfaces RS-485 1
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for EtherCAT no
Supporting protocol for PROFIBUS no
Supporting protocol for PROFIsafe no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Degree of protection (IP), front side IP67
Degree of protection (NEMA), front side -
Additional software components, loadable -
Supporting protocol for DeviceNet Safety no
Certified for UL hazardous location class I no
Supporting protocol for Foundation Fieldbus no
Number of grey-scales/blue-scales of display -
Certified for UL hazardous location division 1 no
Process value representation (output) possible -
With message system (incl. buffer and confirmation) no
Certified for UL hazardous location group B (hydrogen) no
Certified for UL hazardous location group A (acetylene) no
Certified for UL hazardous location group F (carbonaceous dusts) no
