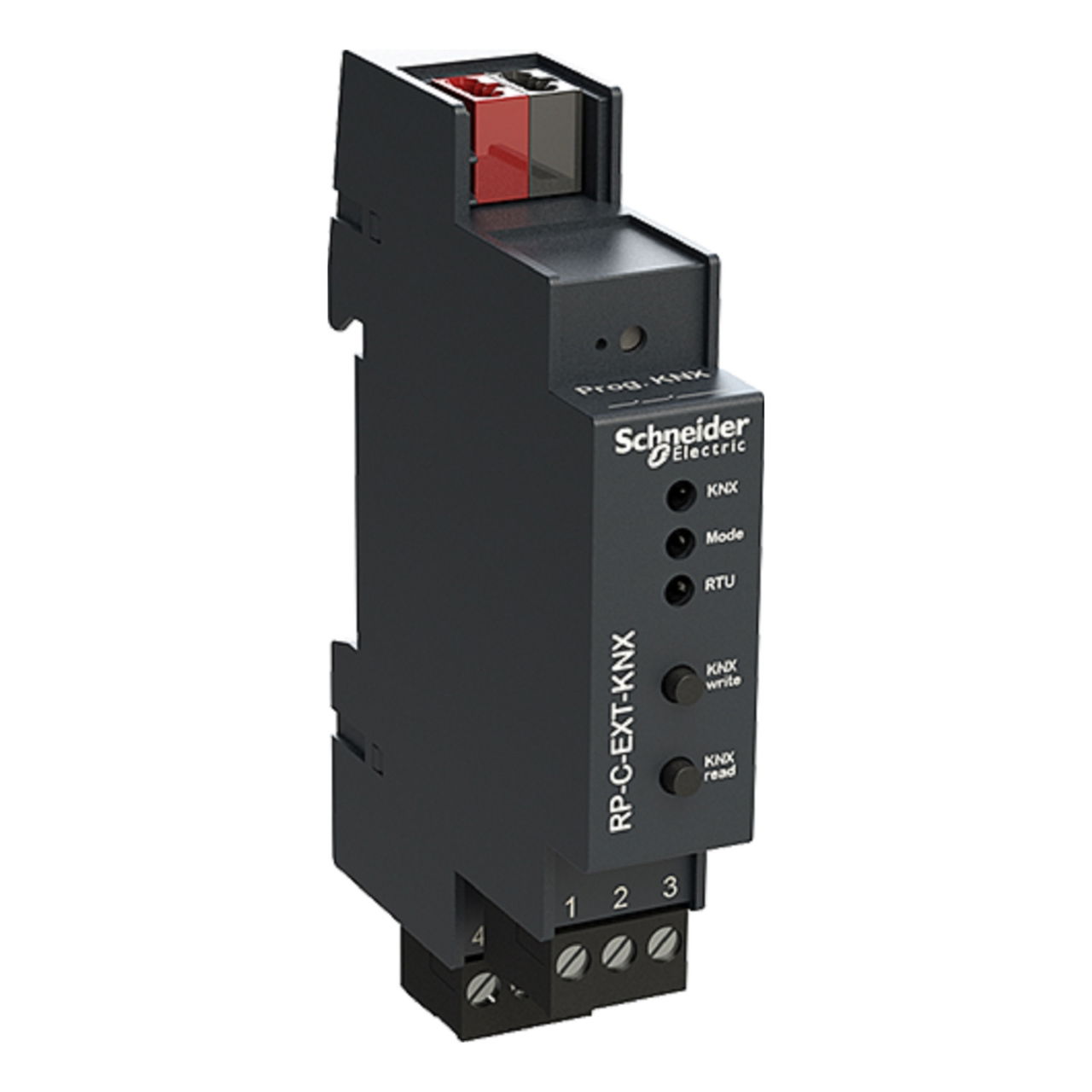

SmartX Room Controller KNX interface module

Link copied
SKU
EAN
GTIN
MPN
SpaceLogic RP-C-EXT-KNX is a KNX Modbus gateway that connects to the RP controller for interfacing with KNX pushbuttons and sensors. It connects to the RP-C room controllers and provides an interface with KNX devices such as control units for lights, blinds, and room temperature. It allows bi-directional control and monitoring of all parameters of the connected KNX devices, for control lights and blinds in a room. The gateway has two push-buttons and three LEDs on the front to enable local operation of the device and status indication. Its dimensions are 90 mm (3.5 in.) in height, 18 mm (0.7 in.) in width and 60 mm (2.4 in.) in depth. The ingress protection rating is IP20. The KNX Modbus gateway is designed for installation on a DIN rail with a width of 1 unit (18 mm or 0.7 inch). The gateway connects to one of the SpaceLogic RP-C controller's configurable RS-485 ports.

Voltimum+ Loyalty Programme Loyalty points: 49

Price: £ 294.00 Excl. VAT

Specifications

Depth 90 mm
Width 18 mm
Height 90 mm
Contact type -
Smart control yes
Output voltage -
Supply voltage 24 V
Max. contact load -
Reception frequency -
Suitable for cooling no
Max. power per channel -
Number of channels/zone -
Connection for external antenna no
Networkable via radiografic (standard) no

Documents

Declaration of Conformity (Sustainability)

SXWREKNX10001 REACh Regulation

Open

Instruction sheet

SpaceLogic™ RP-C-EXT-KNX Installation Sheet

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

SXWREKNX10001 EU RoHS Directive

Open

CAD

SpaceLogic RP-C-EXT-KNX CAD file

Open
