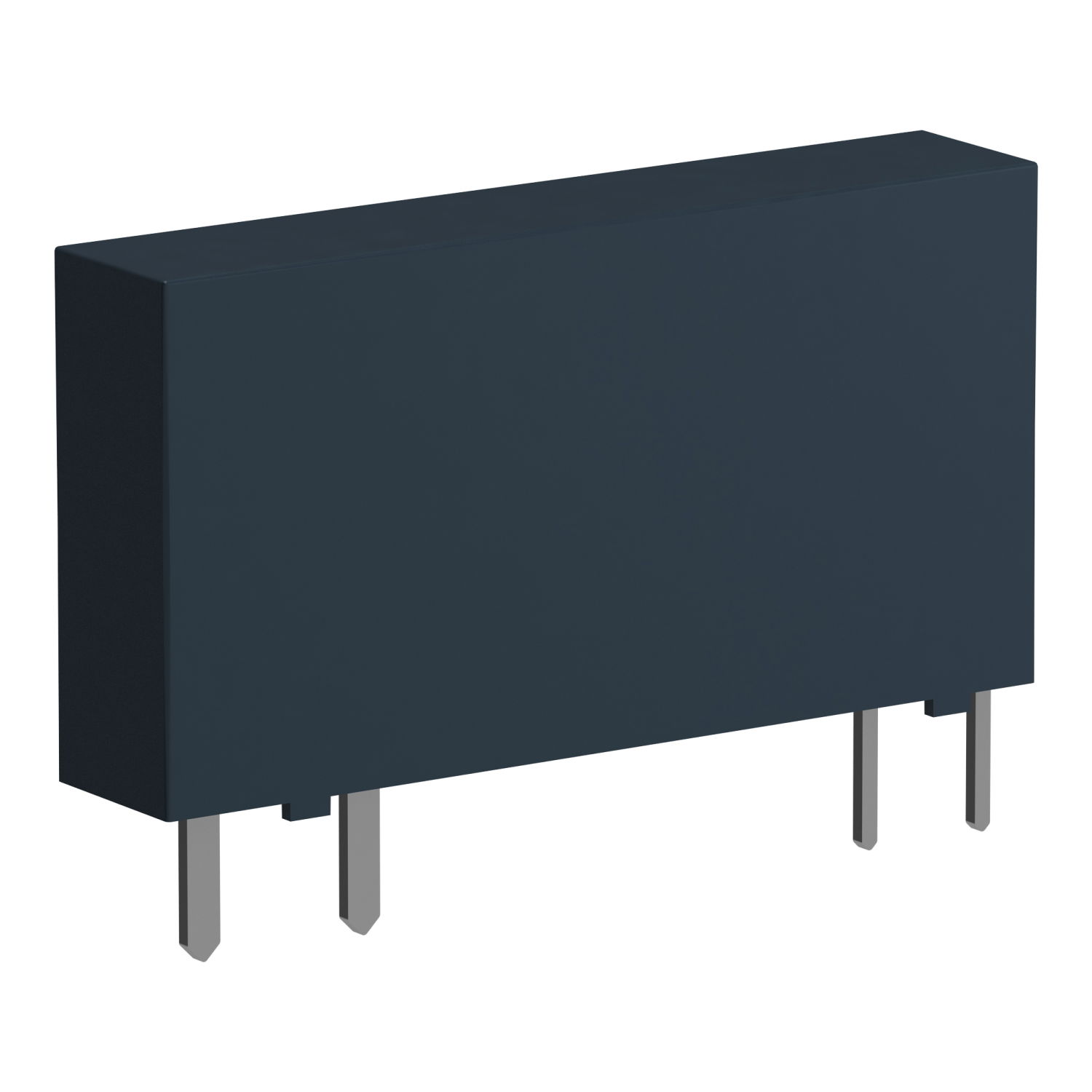

Solid state relay, 2 A, zero voltage switching, input 15...30 V DC, output 24...280 V AC
This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Product identifiers
SKU: SSL1A12BD
EAN: 3606480579721
GTIN: 3606480579721
MPN: SSL1A12BD
Loyalty points:
5
Price range: £ 12.15 - £ 12.27 Excl. VAT
Categories
Features
|
Depth
|
15 mm
|
|
Model
|
-
|
|
Width
|
5 mm
|
|
Height
|
28 mm
|
|
Modular version
|
yes
|
|
Number of phases
|
1
|
|
With LED indication
|
-
|
|
Complete with socket
|
-
|
|
Operating voltage DC
|
|
|
With detachable clamps
|
-
|
|
Type of switch function
|
-
|
|
Degree of protection (IP)
|
IP00
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Switching at zero-crossing
|
yes
|
|
Voltage type for actuating
|
AC/DC
|
|
Type of electric connection
|
-
|
|
Rated control supply voltage DC
|
|
|
Voltage type (operating voltage)
|
-
|
|
Rated operation current Ie at AC-1
|
2 A
|
|
Rated operation current Ie at AC-3
|
2 A
|
|
Rated operation current Ie at AC-51
|
2 A
|
|
Rated operation current Ie at AC-53a
|
2 A
|
|
Rated operation current Ie at AC-53b
|
2 A
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Relay technology category according to IEC 61810-7
|
-
|
