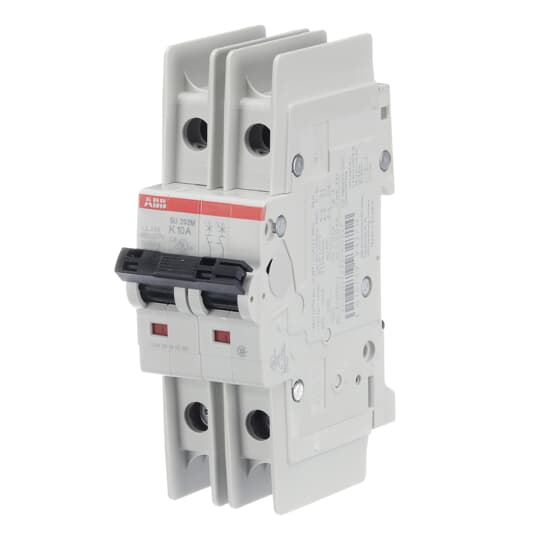

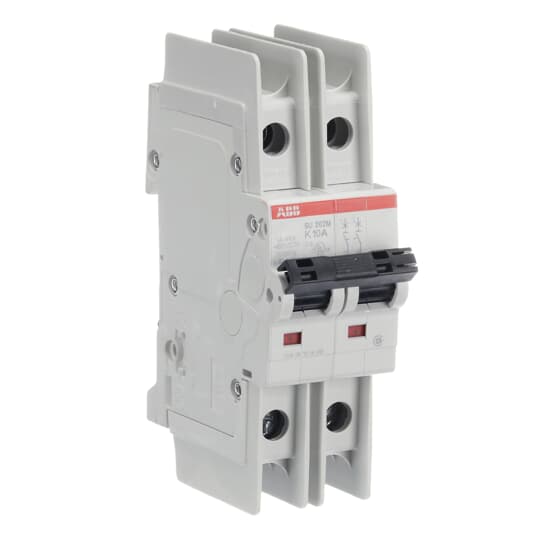

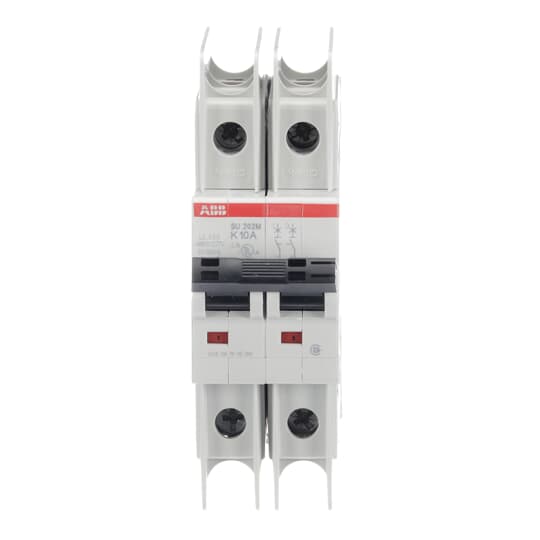

Miniature Circuit Breaker - SU200M - 2P - 10 A - K - (400 V AC) 11.2 kA

Name: Miniature Circuit Breaker - SU200M - 2P - 10 A - K - (400 V AC) 11.2 kA
Brand: ABB
SKU: 2CDS272337R0427
Availability: InStock

SU202M-K10 Miniature Circuit Breaker K-Char., UL10kA, IEC15kA, 10A, 2P UL489

Product identifiers

SKU: 2CDS272337R0427

EAN: 4016779932714

GTIN: 4016779932714

MPN: SU202M-K10

Price range: £ 96.94 - £ 122.60 Excl. VAT

Specifications

Frequency
Power loss	4.2
Voltage type	AC/DC
Rated current	10
Rated voltage
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	K
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	2
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
