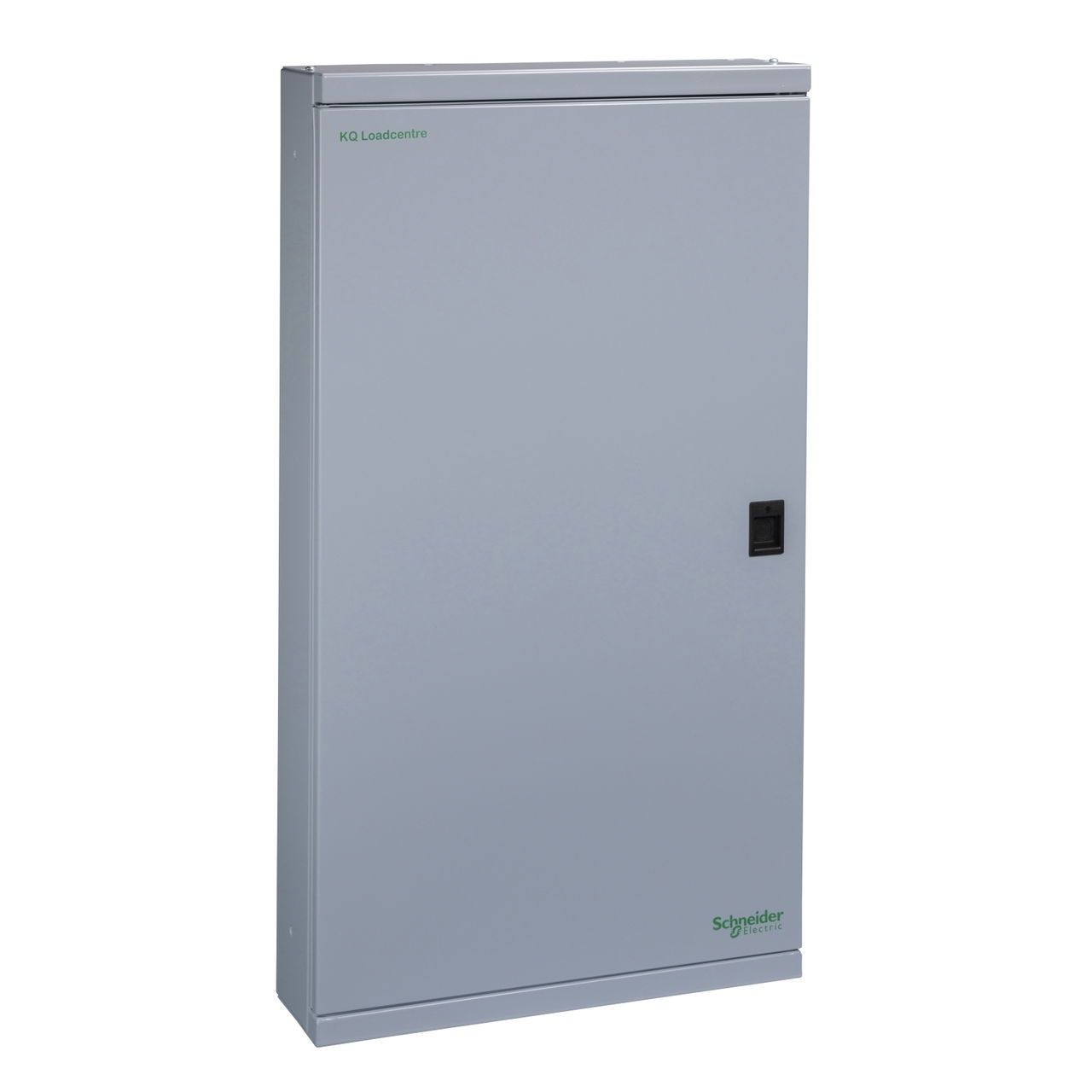

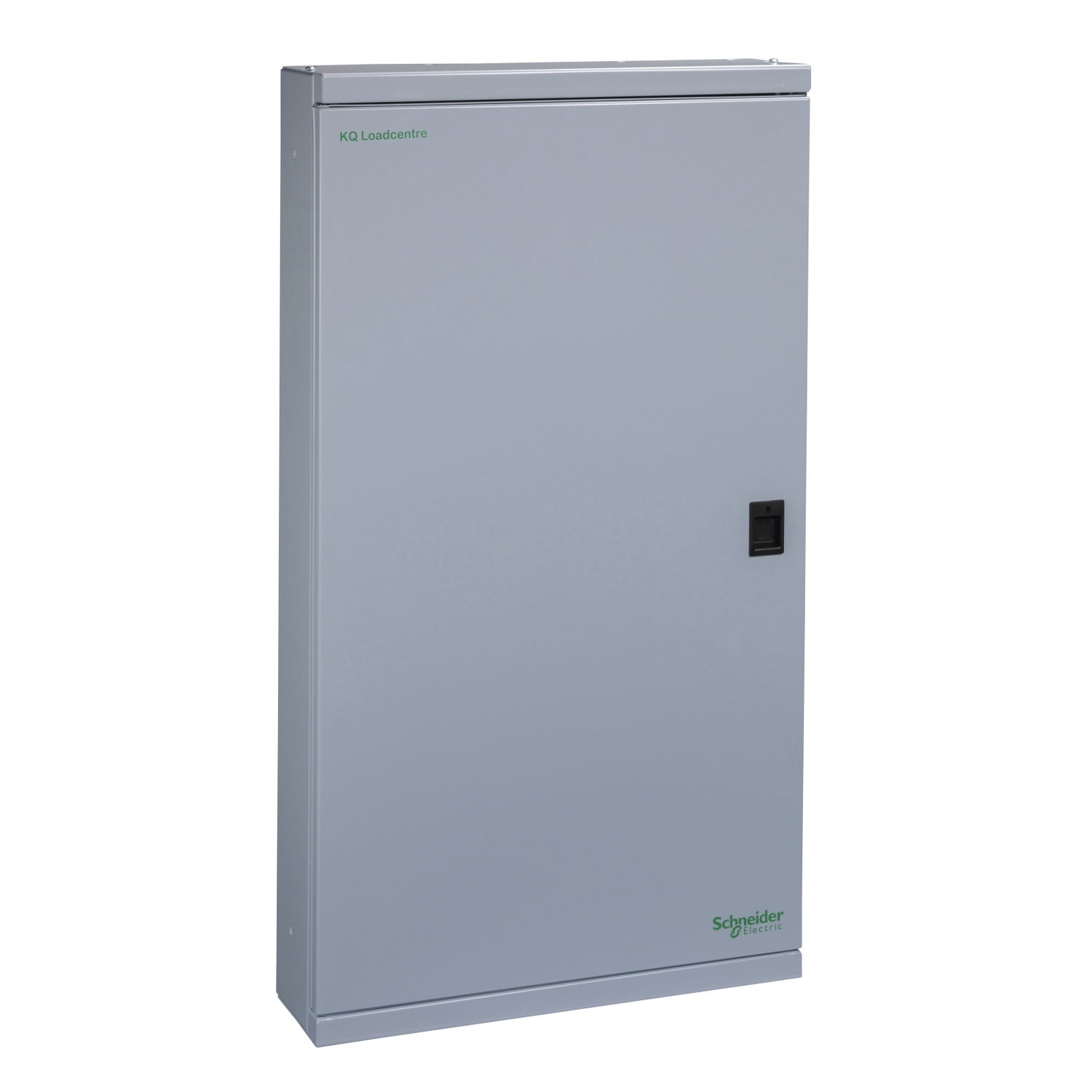

Loadcenter, KQ B type, 3Phase, 250A ,18 TPN

This Acti9 load centre KQ II B product is a surface mounted distribution board. All incoming connections are the same length ie 4 pole configuration Range of internal incomers for all applications including lugs, switches, RCCBs and MCCBs Outgoing MCBs available up to 63A B, C or D curves 18mm wide RCBO available, minimising use of outgoing ways Plug on outgoers for speeds of installation and guaranteed connection Boards accept DIN control products (timers, contactors) in any unused outgoing way without adaptation Control wiring cable way integrated to moulding The dimensions are (W) 470mm x (H) 862mm x (D) 139mm. According to BS EN 60529 standard, the IP degree of protection is IP2x B internal and IP3x external.
