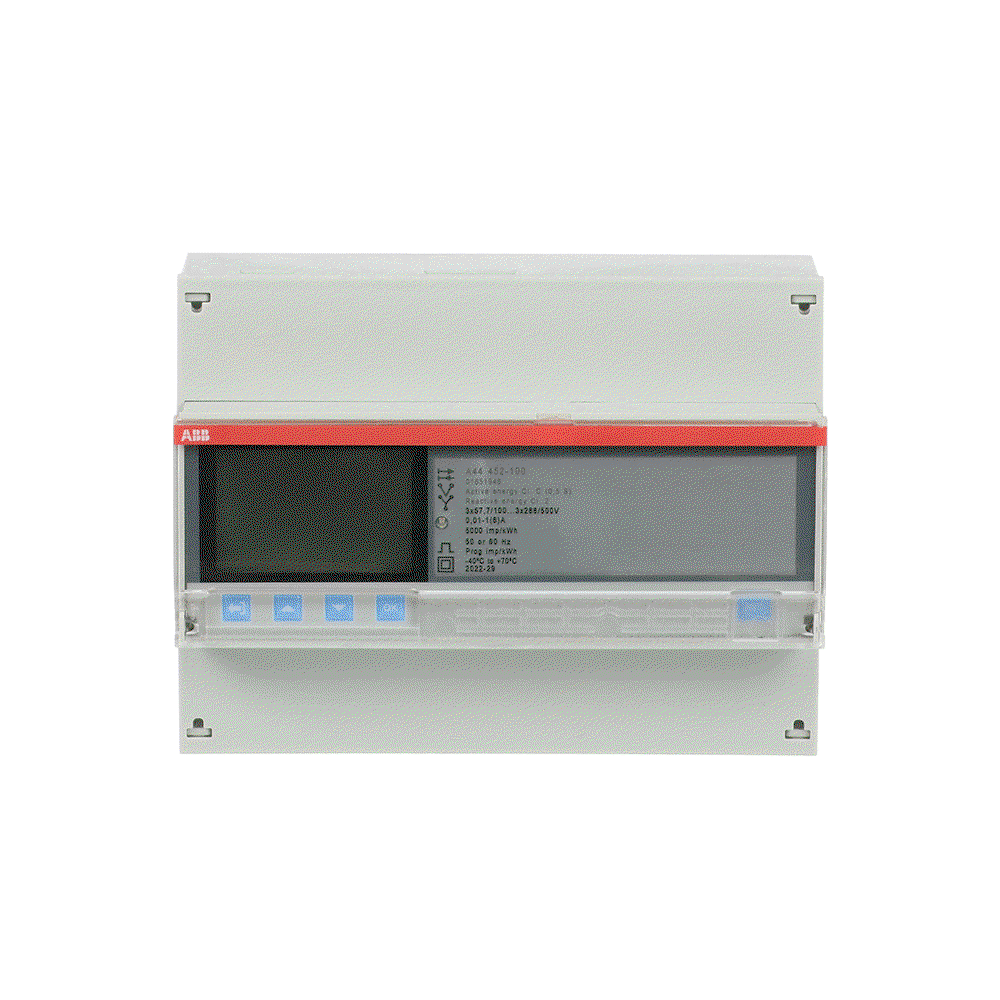

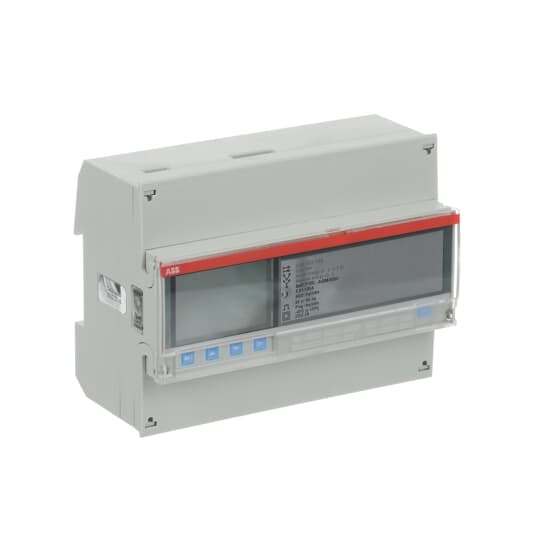

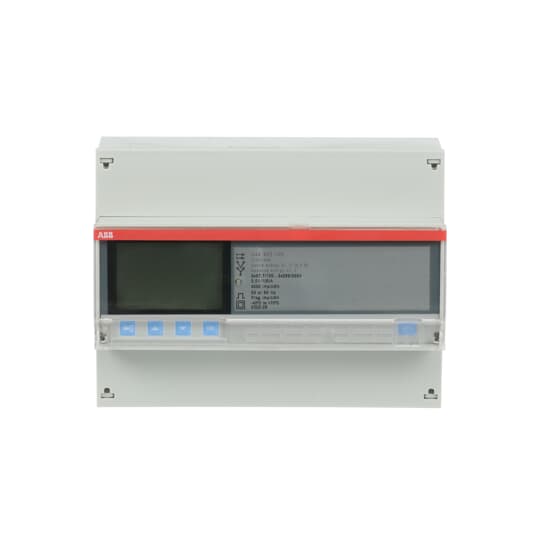

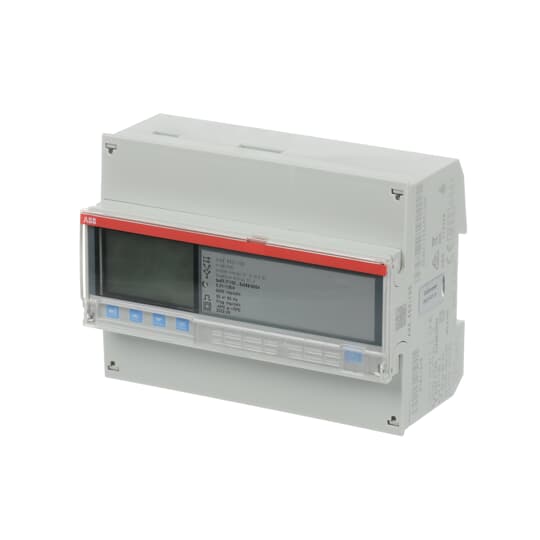

Energy meter 'Gold', Modbus RTU, 3-phase, 1 A

Link copied
SKU
EAN
GTIN
MPN

Energy meter 'Gold', Modbus RTU, 3-phase, 1 A by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £514.51 excl. VAT. Voltimum+ members earn 271 points per unit.

Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase transformer connectedfor active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Internal clock for tariff shift, Min and maximum demand, previous values and event log with timestamps, 8 channel load profile. Two outputs and inputsfor pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 0,5 (or C for MID meters). The meters is IEC approved + MID approved and verified.

Voltimum+ Loyalty Programme Loyalty points: 271

Price: £ 514.51 Excl. VAT

Specifications

Depth 65
Model Measurement transformer
Width 123
Height 26.5
Approval Measuring Instruments Directive
Frequency
Pole type Four conductor
Calibrated yes
Pulse type S0
Tariff type Multi-tariff
Suitable for -
Accuracy class C
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface RS-485
Max. current (Imax) 6
Nominal current (In) 6
Nominal voltage (Un) N-L
Degree of protection (NEMA) -
Number of positions total (counter) 7

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_E_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Instructions for use

Open

Product data sheet

Open

Declaration RoHS

Open

Declaration EPD (Environmental Product Declaration)

ABB EQ Meters - Product Environmental Profile.pdf

Open
