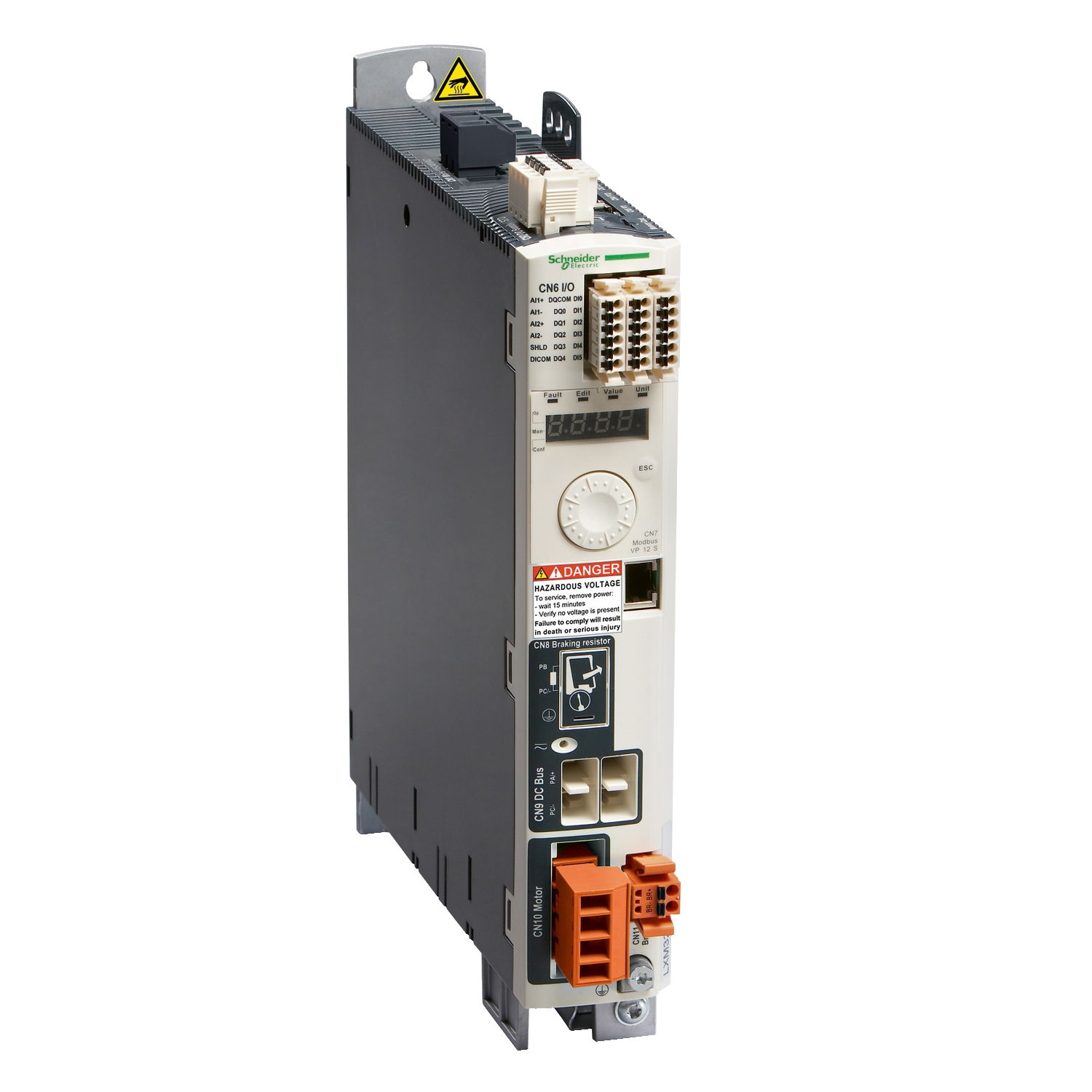

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW

Link copied
SKU
EAN
GTIN
MPN

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including BPX Electro Mechanical Co. Ltd, and currently in stock. Trade price £1,209.90 excl. VAT. Voltimum+ members earn 179 points per unit.

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 safety, 6 logic discrete inputs and 5 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

Voltimum+ Loyalty Programme Loyalty points: 179

Price: £ 1,209.90 Excl. VAT

Specifications

Depth 237 mm
Width 68 mm
Height 270 mm
Mains voltage
Mains frequency 50/60 Hz
Power consumption -
Type of converter Other
With PC connection yes
With control element yes
Number of phases input 3
Number of phases output Other
Degree of protection (IP) IP20
Number of digital outputs 2
Number of analogue outputs 1
Number of HW-interfaces USB 0
Supporting protocol for CAN yes
Supporting protocol for LON no
Number of HW-interfaces other 0
Integrated breaking resistance no
Number of HW-interfaces RS-422 0
Supporting protocol for BACnet no
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Relative symmetric net voltage tolerance 10 %
Supporting protocol for other bus systems no
Number of HW-interfaces industrial Ethernet 1
Max. output at linear load at rated output voltage 3 kW
Max. output at quadratic load at rated output voltage 3 kW

Documents

Declaration of Conformity (Sustainability)

LXM32CD30N4 REACh Regulation

Open

User guide

Lexium 32C Servo Drive, User Guide

Open

Product data sheet

Open

Brochure

998-23091292_HMI and Lexium 32_Leaflet_LMA_QA3 (1.0)

Open

Catalog

Catalog Lexium 32 servo drives BMH and BSH servo motors - October 2021

Open

Declaration of Conformity (Sustainability)

LXM32CD30N4 EU RoHS Directive

Open

Declaration of conformity

Lexium 32, Declaration of Conformity, EU CE, Schneider Electric

Open

Environmental Disclosure

Lexium LXM32 / LXM52 Servo Drive - Product Environmental Profile

Open
