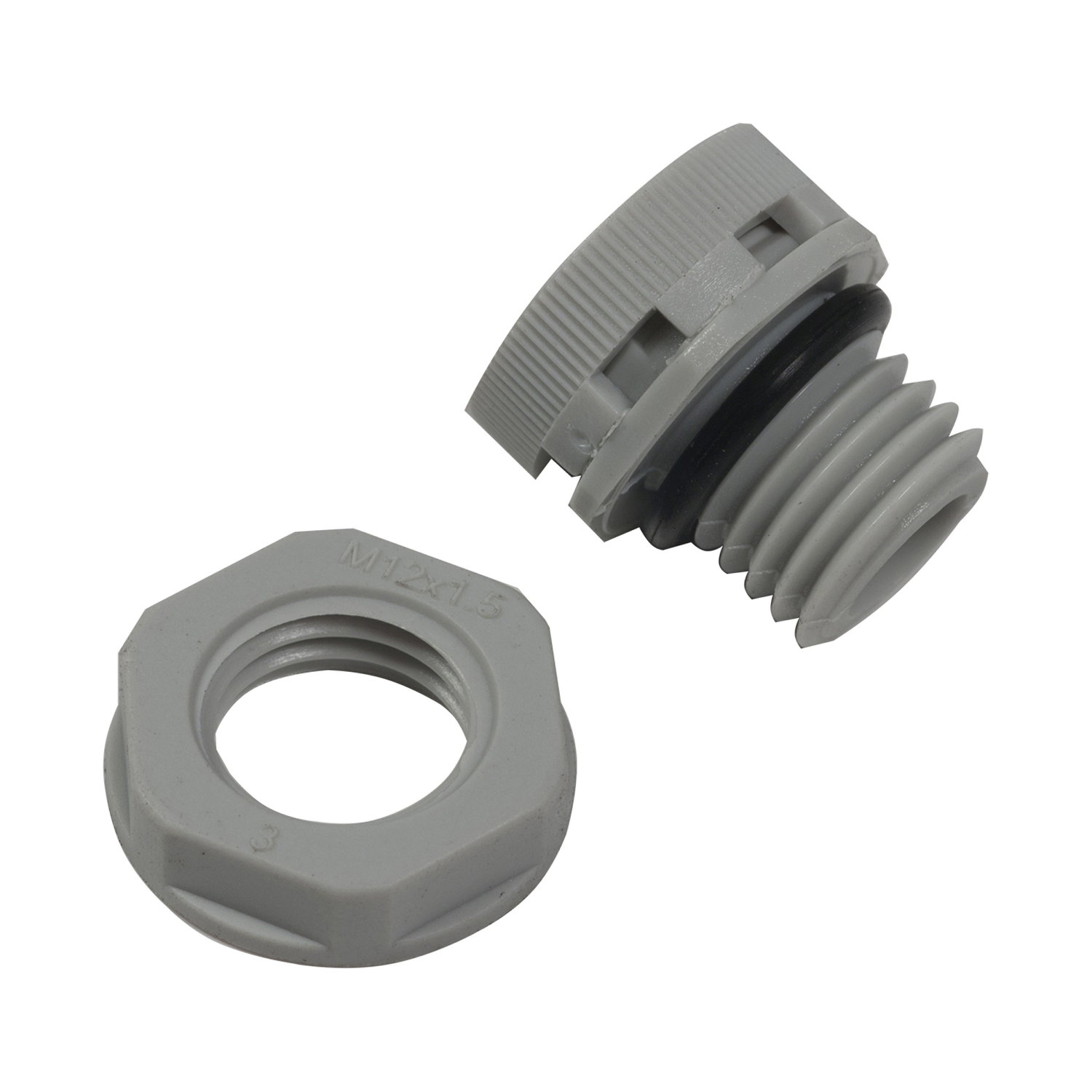

Sealed anti-condensation valves IP68 ØM12 F16 litres/hour when 0,07 bar
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Sealed anti-condensation valves IP68 ØM12 F16 litres/hour when 0,07 bar
Sealed anti-condensation valves IP68 ØM12 F16 litres/hour when 0,07 bar by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £1.66 to £3.47 excl. VAT. Voltimum+ members earn 1 point per unit.
"Set of 10 water resistant pressure release valve 18,3 x 17,1mm for Thalassa PLS, Thalassa PLM, Thalassa TBS and Thalassa TBP enclosures" "The product is made from PA6-V2 and membrane is made from acrilic co-polymer" "The kit is made of 1 valve" The width is 18,3mm Cut-out diameter is 11,5mm Ingress protection rating (according to IEC 60529) is IP68 Fixing by screws Flame retardance V2 Operating temperature is in the range of -40-150 °C Pressure difference is less than 1 bar Permeability is 16 l/h "This product is qualified as a green premium, with minimal use of hazardous substances"
Product identifiers
SKU: NSYCAG12LPH1
EAN: 3606480166532
GTIN: 3606480166532
MPN: NSYCAG12LPH1
Loyalty points:
1
Price range: £ 1.66 - £ 3.47 Excl. VAT
Categories
ETIM group
Specifications
| Width | 18.3 mm |
| Height | 17.1 mm |
| Diameter | 11.5 mm |
| Material | Plastic |
| Mounting method | Screw mounting |
| Surface finishing | Untreated |
| With built-in filter | no |
| For max. number of fans | 1 |
