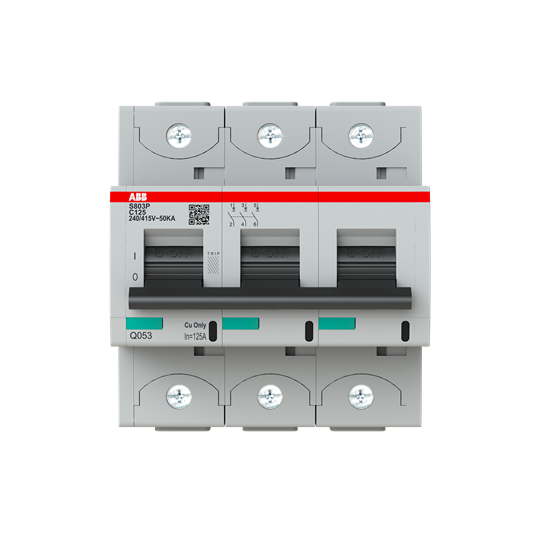

S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P

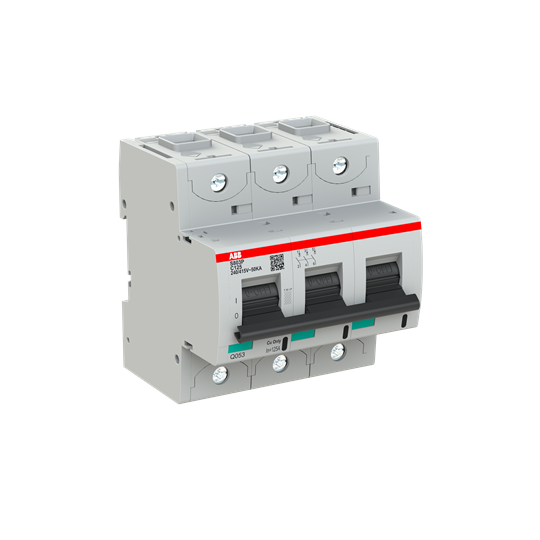

S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P – Image 2 of 3

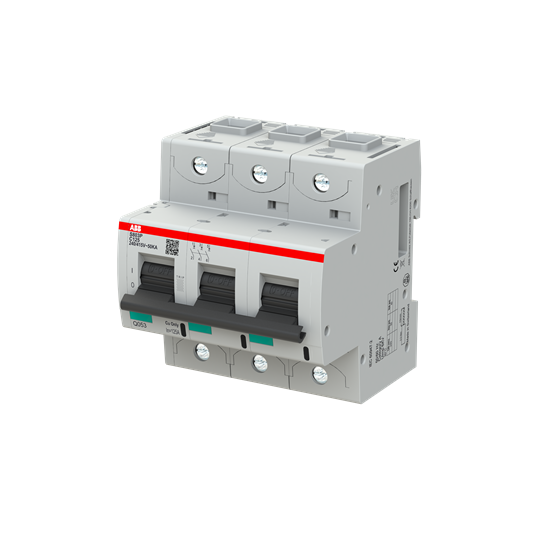

S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P – Image 3 of 3

1 / 3

S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P

Name: S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P
Brand: ABB
SKU: 2CCG001234R0001
Availability: InStock

S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £396.84 excl. VAT. Voltimum+ members earn 175 points per unit.

Product identifiers

SKU: 2CCG001234R0001

EAN: 7612271517038

GTIN: 7612271517038

MPN: S803P-C125

Loyalty points: 175

Price: £ 396.84 Excl. VAT

Specifications

Frequency
Power loss	28.2
Voltage type	AC/DC
Rated current	125
Rated voltage	400
Built-in depth	82.5
Explosion-proof	-
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	690
Additional equipment possible	yes
Width in number of modular spacings	5
Ambient temperature during operating
Rated impulse withstand voltage Uimp	6
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
