Schneider Electric

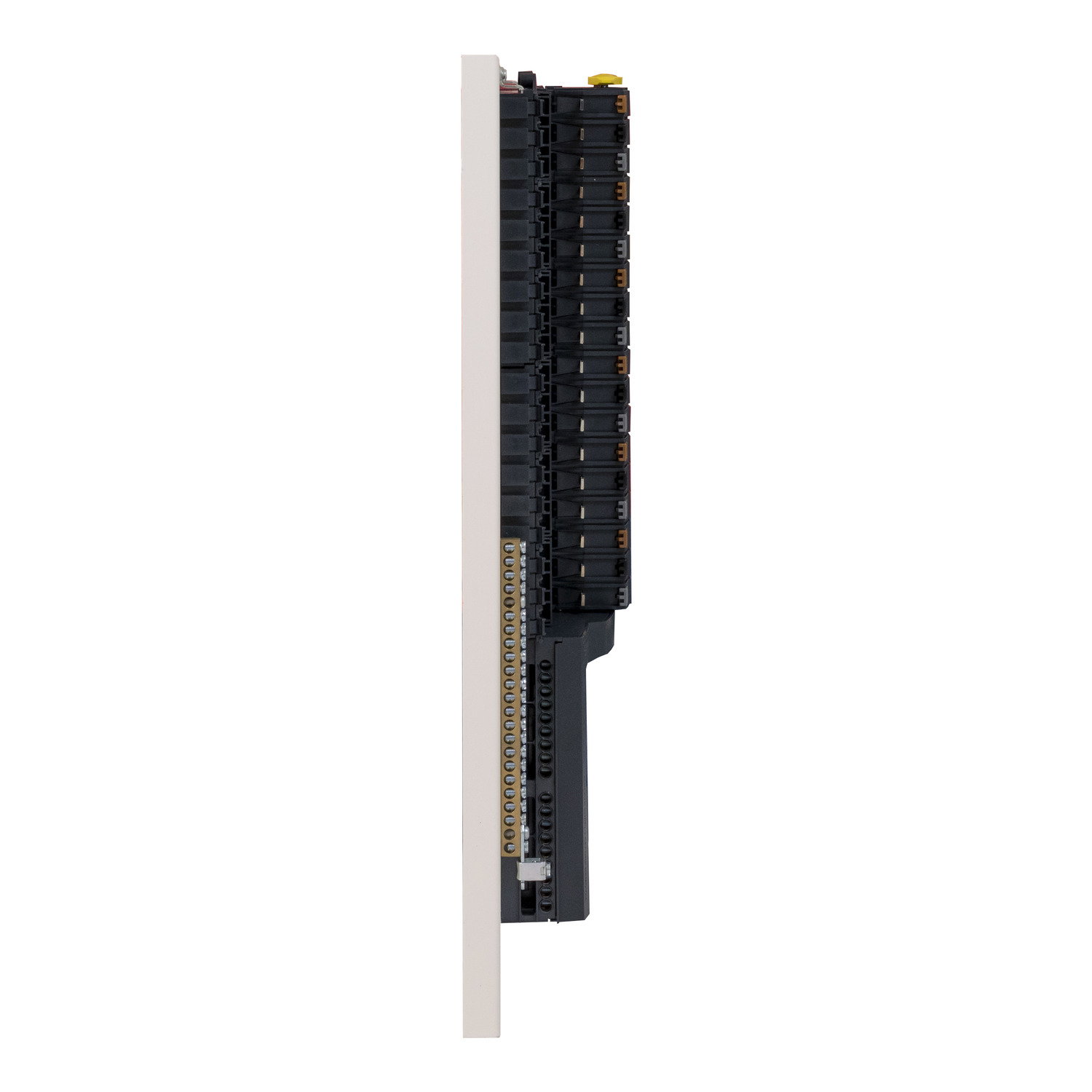

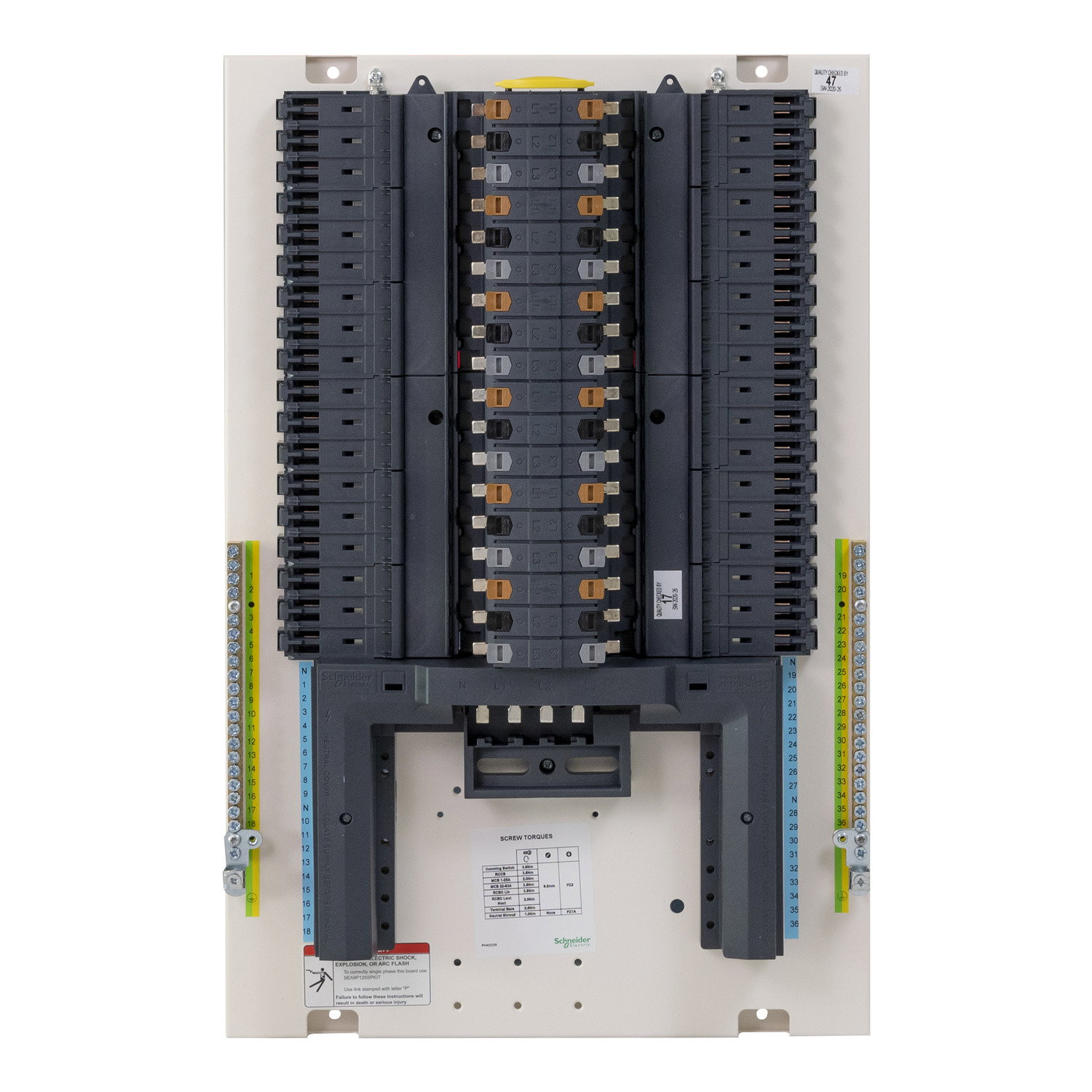

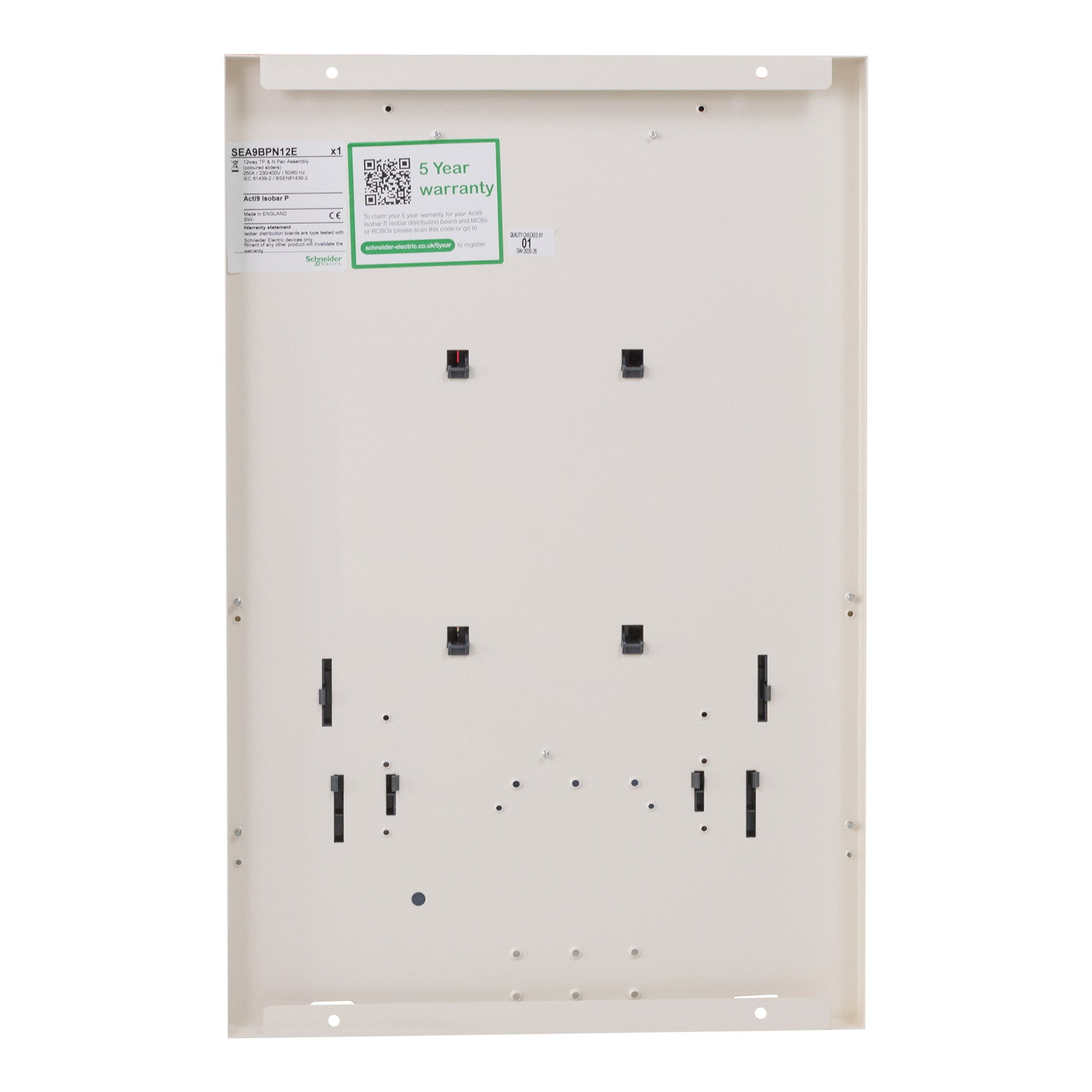

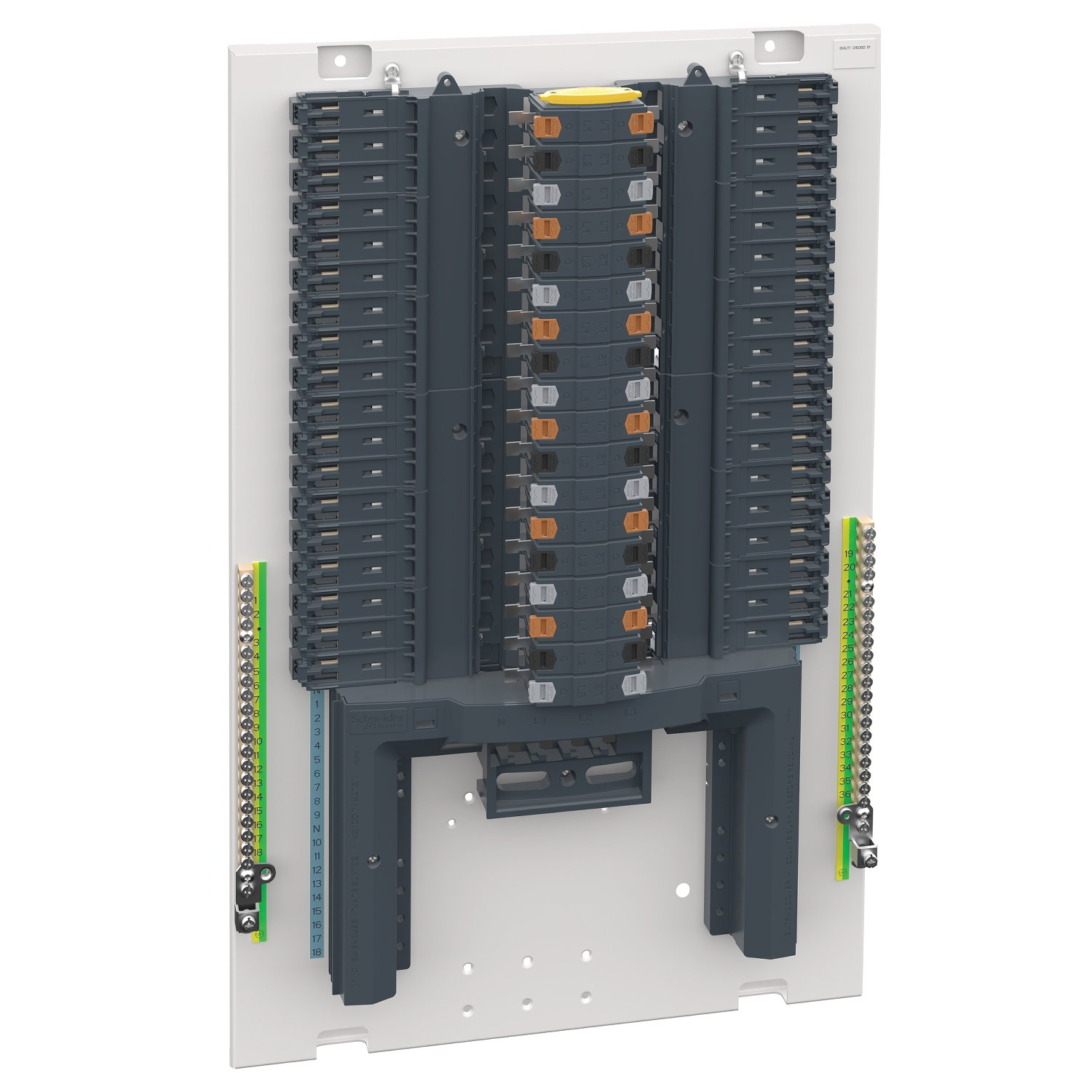

Acti9 Isobar P B - pan assembly - 12 ways TP + earth + neutral

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar P B - pan assembly - 12 ways TP + earth + neutral by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Rexel Group and TLA. It is currently in stock at all of them. Trade prices range from £352.49 to £380.52 excl. VAT. Voltimum+ members earn 43 points per unit.

This Acti9 Isobar product is a pan assembly which can be installed in Acti9 Isobar P B distribution board. pan assembly designed for 3P+N+E systems with 12 ways up to 250A. This assembly is suitable for various protective devices like switch disconnectors, RCBOs, and MCCBs. This assembly is suitable for various protective devices like switch disconnectors, RCCBs, and MCCB

Voltimum+ Loyalty Programme Loyalty points: 43

Price range: £ 352.49 - £ 380.52 Excl. VAT

Categories

Switchgear & Circuit Protection Busbars

ETIM group

Energy distribution systems

Specifications

Depth 105 mm
Width 350 mm
Height 571 mm
Material Copper
Rail height -
Rated current 250 A
Busbar distance 18 mm
Number of poles 36
Surface protection Tinned

Documents

Declaration of Conformity (Sustainability)

SEA9BPN12E REACh Regulation

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9BPN12E EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

SEA9BPN12E POP Directive

Open

Declaration of Conformity (Sustainability)

SEA9BPN12E OECD PFAS Regulation

Open

Environmental Disclosure

Acti9 ISOBAR P B DISTRIBUTION BOARD

Open

CAD

Open
