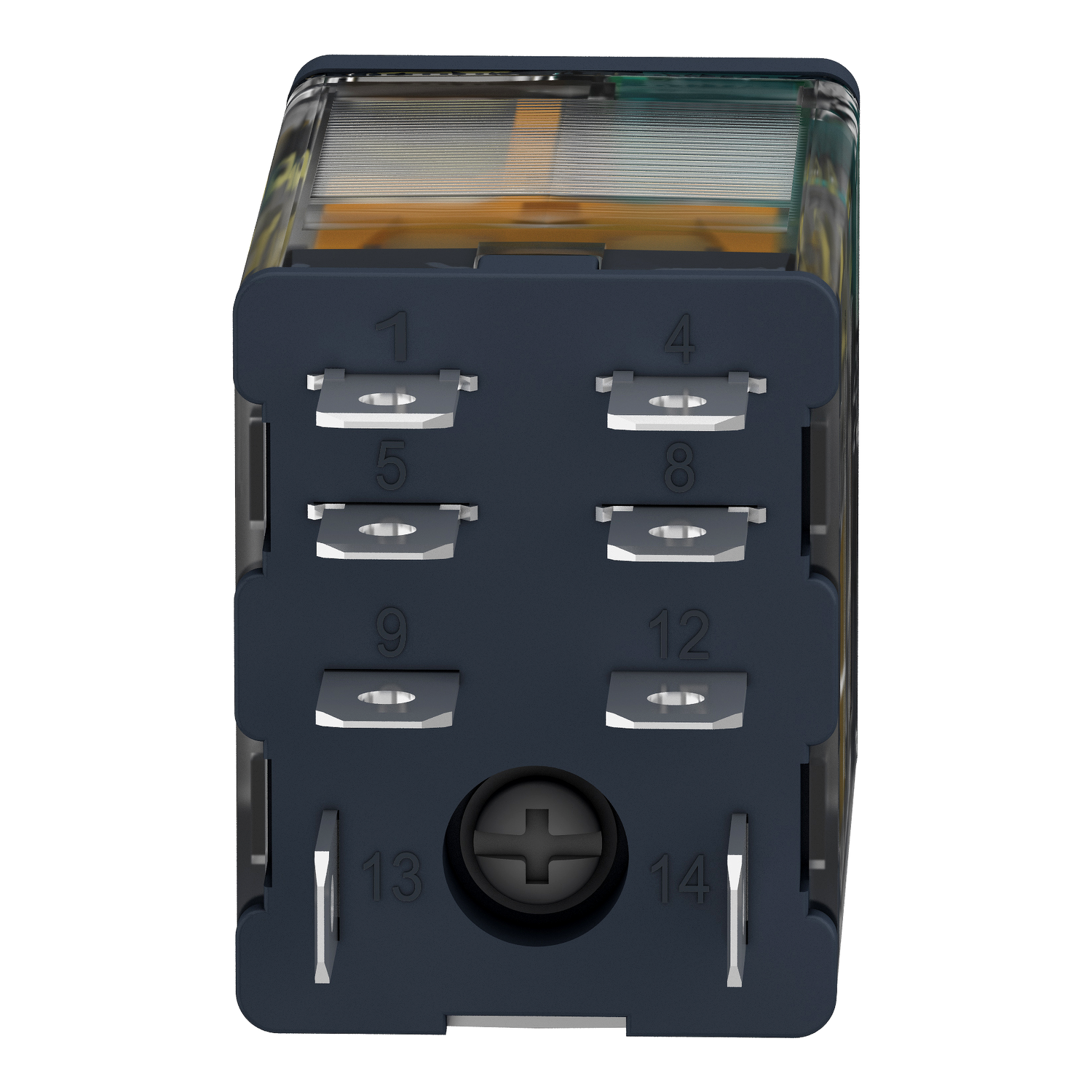

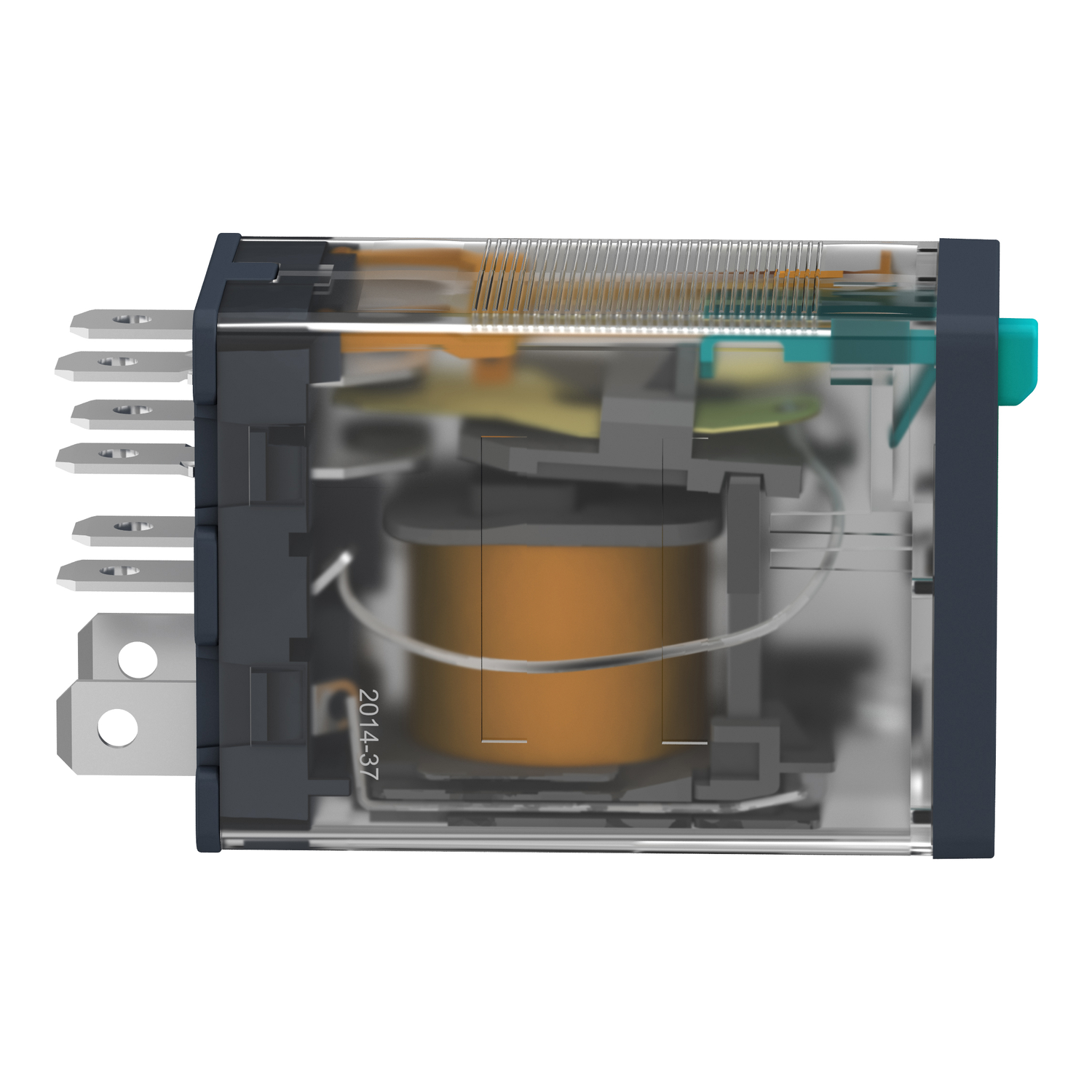

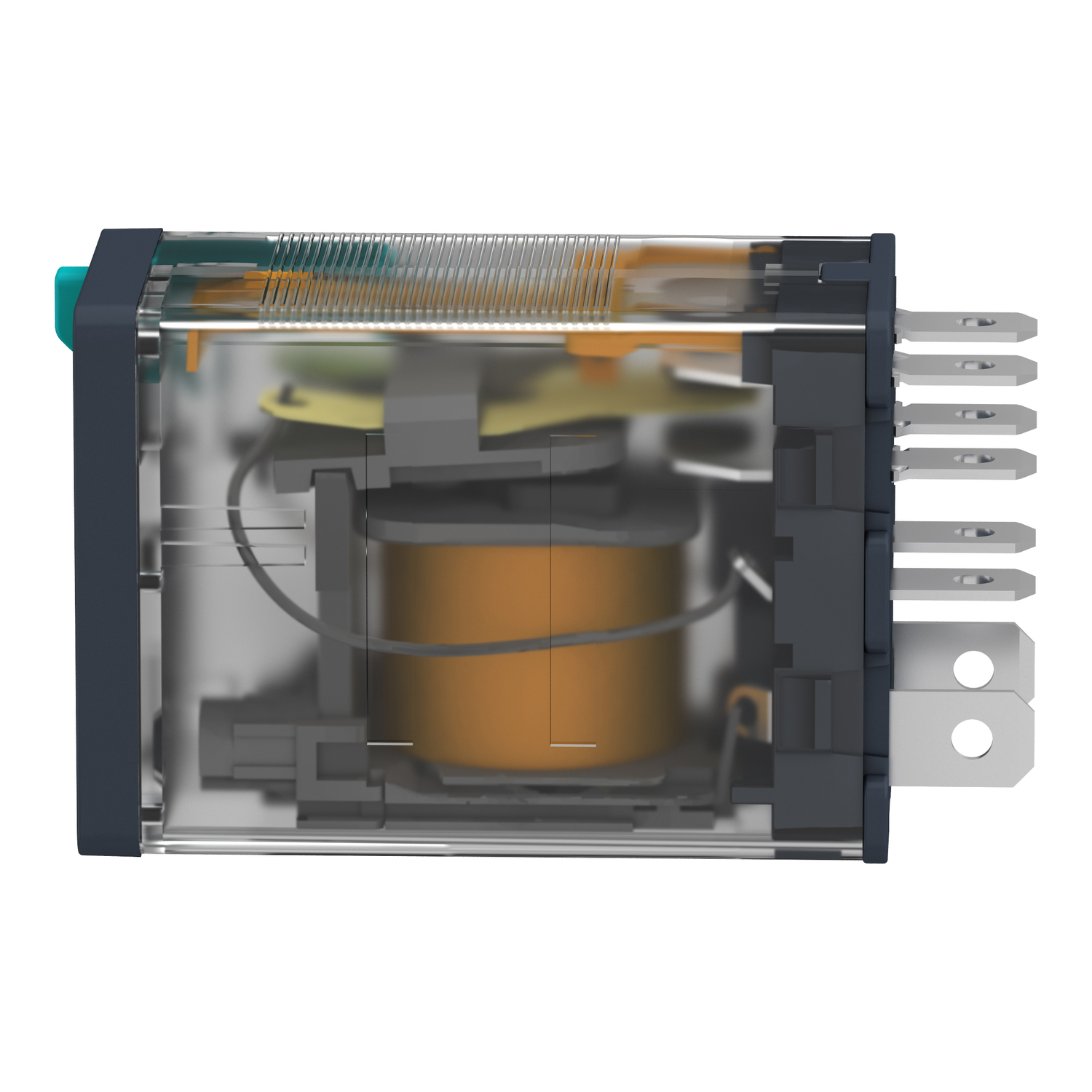

Power plug-in relay, 15 A, 2 CO, 24 V DC
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
Product identifiers
SKU: RPM21BD
EAN: 3389119401814
GTIN: 3389119401814
MPN: RPM21BD
Loyalty points:
5
Price range: £ 11.35 - £ 11.46 Excl. VAT
Categories
Features
|
Depth
|
53 mm
|
|
Width
|
21 mm
|
|
Height
|
27 mm
|
|
Nominal current
|
15 A
|
|
Material contact
|
Other
|
|
Drive, polarization
|
Polarity free
|
|
With LED indication
|
no
|
|
Complete with socket
|
no
|
|
Operating voltage DC
|
|
|
Max. starting current
|
-
|
|
Type of switch contact
|
Double contact
|
|
With detachable clamps
|
yes
|
|
Degree of protection (IP)
|
IP40
|
|
Drive, switching attitude
|
Mono stable
|
|
Material of contact insert
|
Other
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Voltage type for actuating
|
DC
|
|
Material of contact surface
|
Other
|
|
Type of electric connection
|
Plug-in connection
|
|
With forced-guided contacts
|
yes
|
|
Rated control supply voltage DC
|
|
|
Voltage type (operating voltage)
|
-
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Number of contacts as change-over contact
|
2
|
|
Number of contacts as normally open contact
|
0
|
|
Number of contacts as normally closed contact
|
0
|
|
Relay technology category according to IEC 61810-7
|
RT I
|
