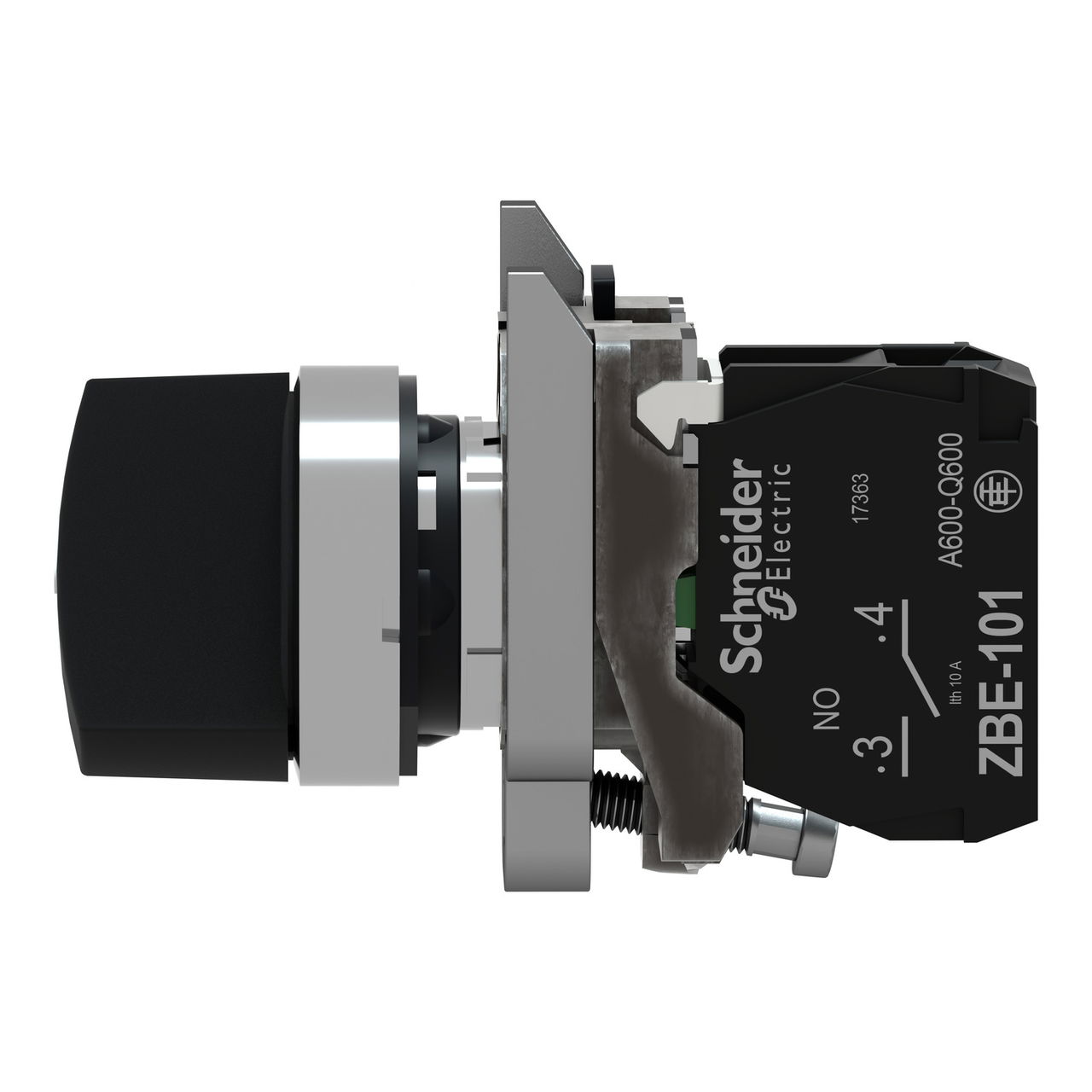

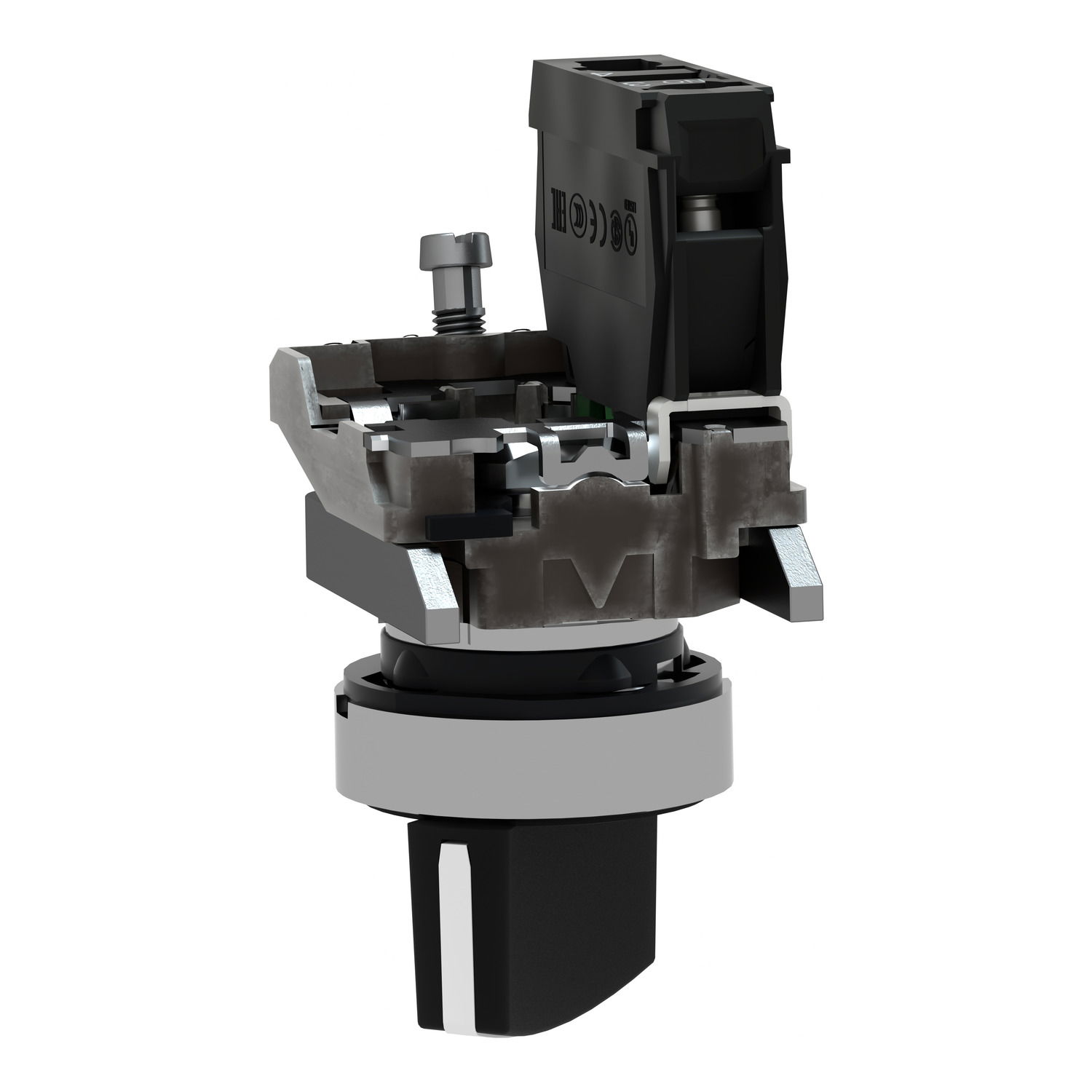

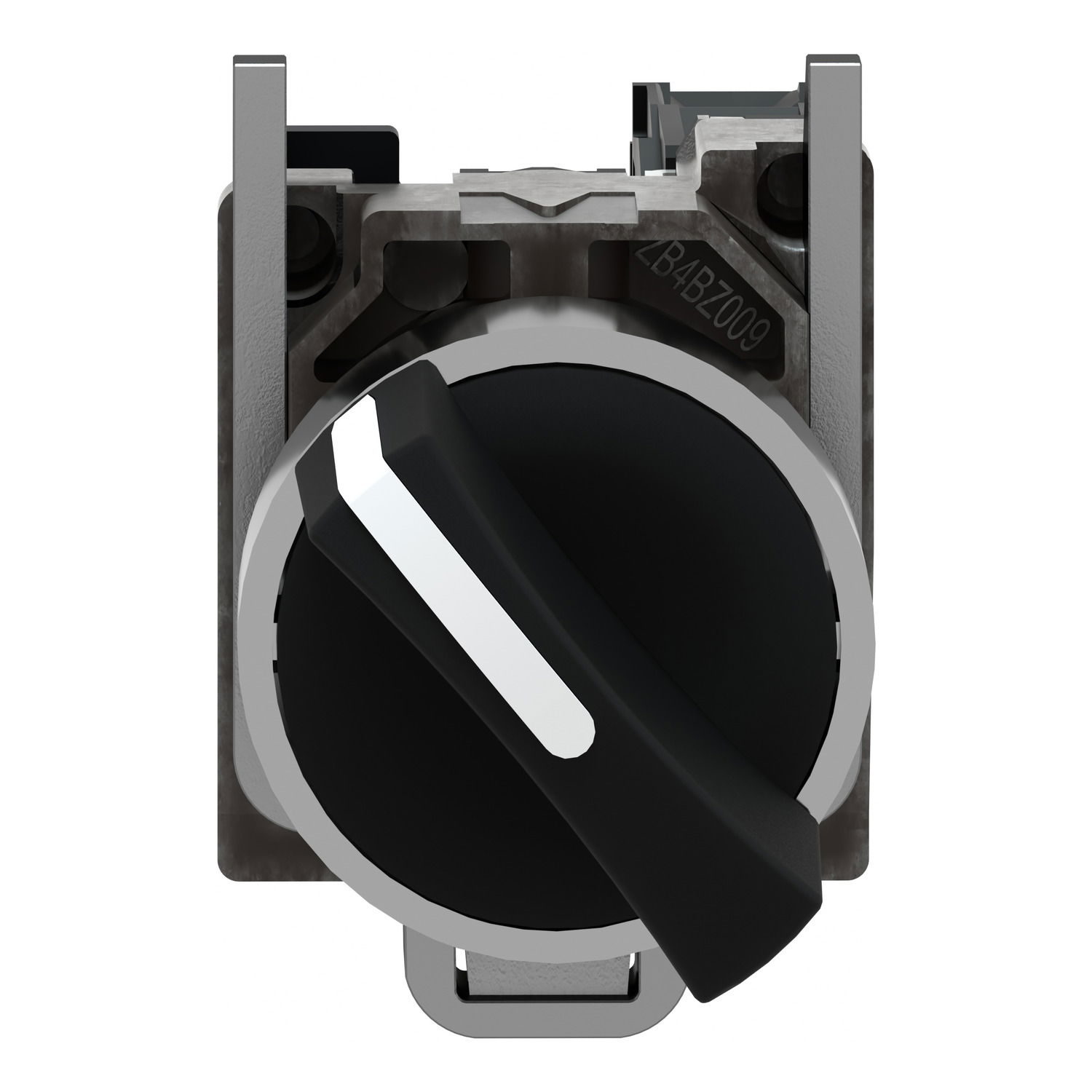

Selector switch, metal, black, Ø22, 3 positions, spring spring return, 1 NO

Selector switch, metal, black, Ø22, 3 positions, spring spring return, 1 NO

This Harmony XB4 modular black selector switch has 2 positions, operates with a spring-return-to-left mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Product identifiers

SKU: XB4BD41
EAN: 3389118124714
GTIN: 3389118124714
MPN: XB4BD41

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 20.02 - £ 20.52 Excl. VAT

Videos

Promotional video

Specifications

Power loss -
Colour button Black
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Supply voltage
With front ring yes
With light source no
Suitable for lighting no
Degree of protection (IP) IP67
Degree of protection (NEMA) Other
Type of electric connection Screw connection
Number of contacts as normally open contact 1
