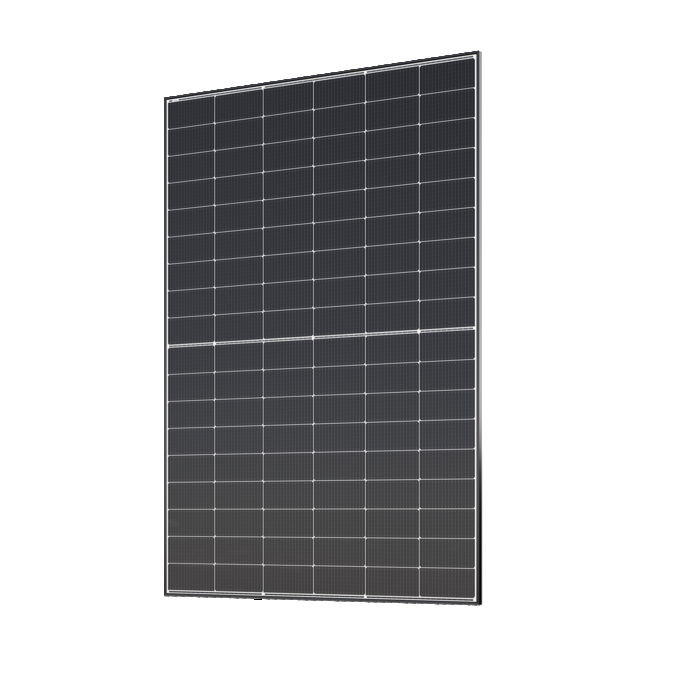

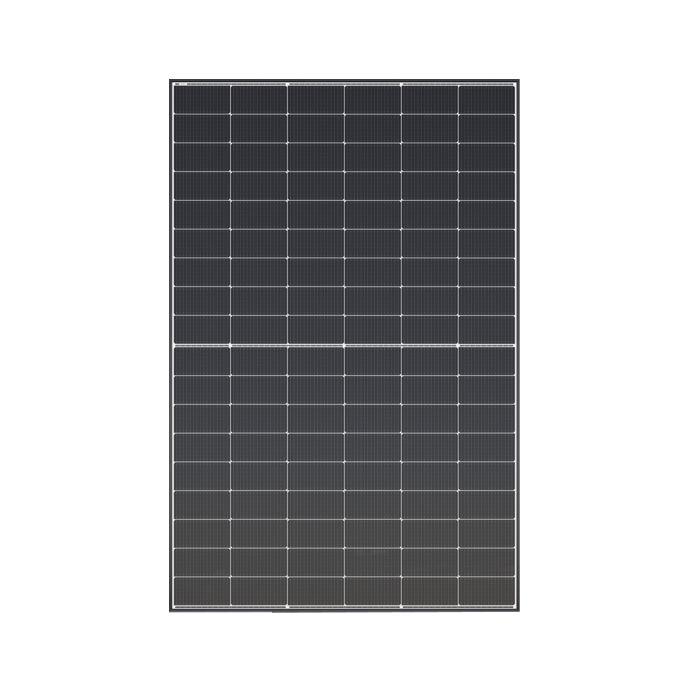

M 465 N 48 RB -BF

Link copied
SKU
EAN
GTIN
MPN
Product benefits
  • TopCon technology provides higher efficiency due to better sunlight conversion than standard panels
  • Glass-glass modules offer improved protection against moisture, mechanical loads and fire protection
  • 25-years of product guarantee, 30-years of linear power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
Areas of application
  • Commercial and industrial installations
  • Residential installations
Product features

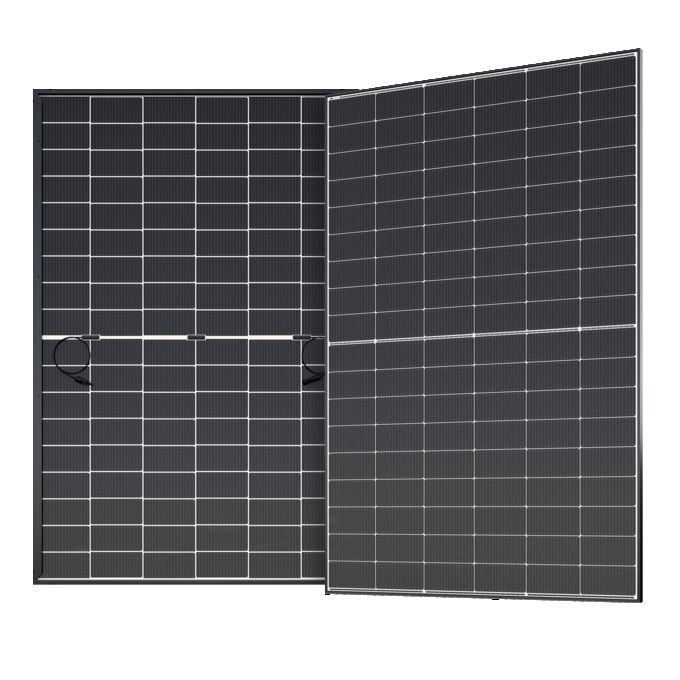

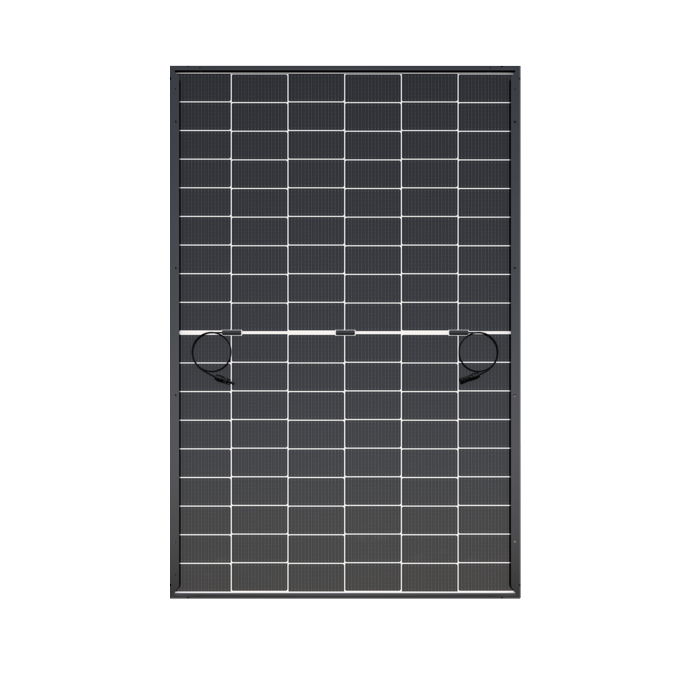

  • Bifacial - both sides of the panel are absorbing the light
  • Original Stäubli MC4 EVO 2 connectors
  • Available in a long cable version
  • Frame made of anodized aluminum alloy
  • Multi-bus bar (MBB) technology
  • Maximum static load up to 5400 Pa
Equipment / Accessories
  • Product is delivered as a whole, no assembly required from customer
  • MC4 EVO 2 connectors are fitted to the panel
  • 3 bypass diodes are already installed in the panel
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links

Specifications

ELECTRICAL DATA STC

Maximum Power Pmax (STC) 465 W
Maximum Power Current Imp (STC) 15.2 A
Short Circuit Current Isc (STC) 16.20 A
Maximum Power Voltage Vmp (STC) 30.62 V
Open Circuit Voltage Voc (STC) 35.57 V
Module efficiency factor (STC) 23,27 %

ELECTRICAL DATA NMOT

Maximum Power Pmax (NMOT) 355 W
Maximum Power Current Imp (NMOT) 12.23 A
Maximum Power Voltage Vmp (NMOT) 29.11 V
