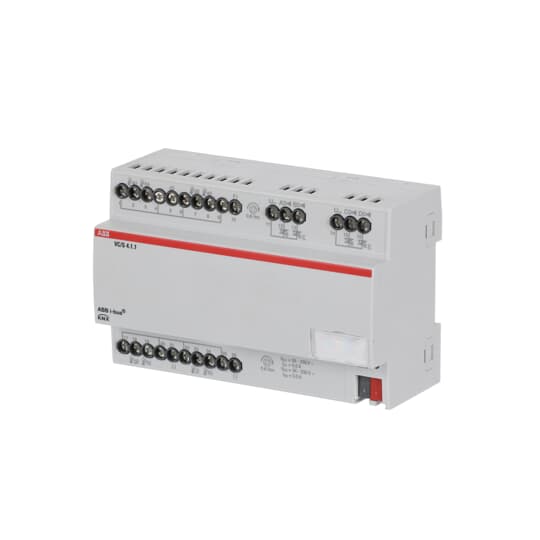

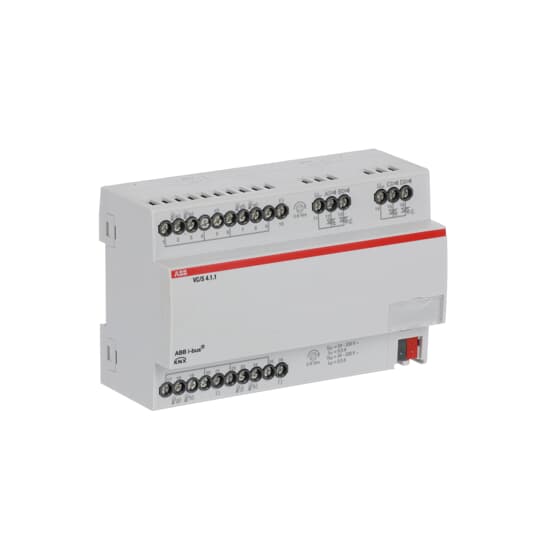

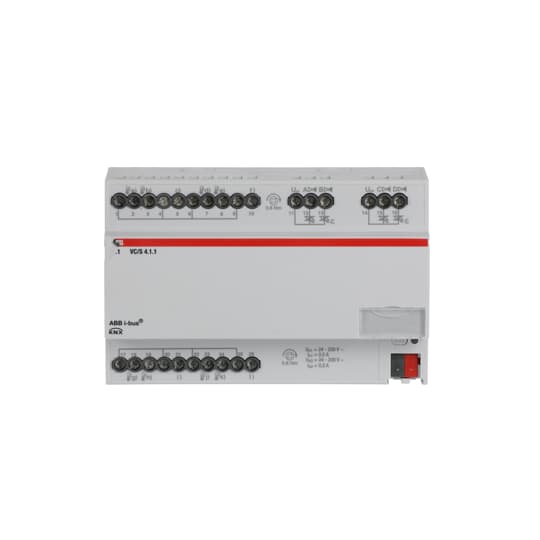

VC/S4.1.1 Valve Drive Controller, 4-fold, MDRC

Link copied
SKU
EAN
GTIN
MPN
For the control of heating and cooling applications in the room, such as radiator, floor heating or cooling ceiling. The device has 4 channels each for the independent control of a heating or cooling application. Each channel has an electronic valve output for the control of a thermoelectric valve drive, as well as 3 inputs to detect and monitor the room status (use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of each channel. Each channel has its own integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.

Voltimum+ Loyalty Programme Loyalty points: 156

Price: £ 321.65 Excl. VAT

Specifications

Manual switch no
Bus system KNX yes
Bus system LON no
Mounting method Other
Number of outputs 4
Other bus systems None
Switching voltage
Bus system Powernet no
With bus connection yes
Number of digital inputs 12
Valve protection function yes
Correcting variable switching yes
Correcting variable consistent yes
Width in number of modular spacings 8
Min. depth of built-in installation box -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Dimensioned drawing

8_TE_MB_XX_V1-0_2CDC072027F0017_Rev_A.pdf

Open

Instructions for use

VCS 4.X.1_MBA_XX_V1-1_2CDG941186P0002.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

VCS_411_CE-ROHS_xx_V1-0_2CDK508250D2701.pdf

Open
