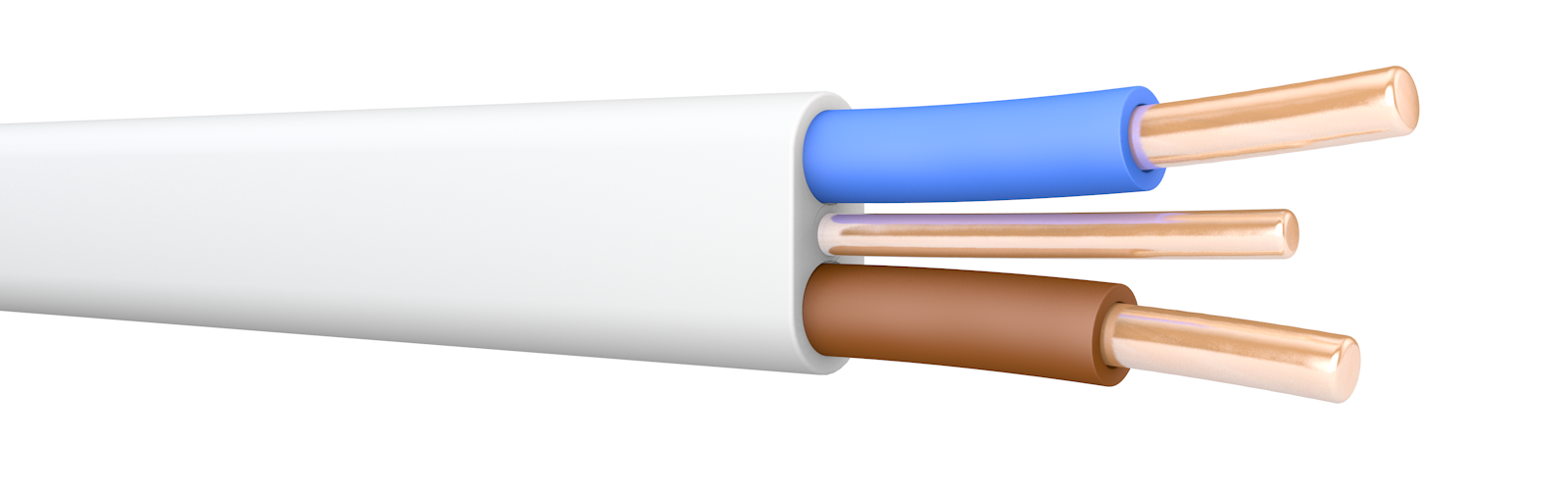

6242B 2x16 100m Reel White LSOH® Flat Wiring Cable with Bare CPC. BS 7211. 300/500 V

6242B 2x16 100m Reel White LSOH® Flat Wiring Cable with Bare CPC. BS 7211. 300/500 V by Prysmian is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £10.07 excl. VAT.

Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls Two cores with bare CPC

Product identifiers

SKU: 20147214
EAN: 5019325317729
GTIN: 5019325317729

Price: £ 10.07 Excl. VAT

Categories

Electrical Cables & Wiring Building Wire & Power Cables

Specifications

Screen no
Weight 465
Drain wire yes
Core colour Several
Lead sheath no
Cable geometry Flat
Number of cores 2
Conductor surface Bare
Conductor category Class 2 = stranded
Nominal voltage U0 300
Shape of conductor Round
Colour outer sheath White
Cable height approx. 9.6
With rodent protection no
With protective conductor yes
Specification core insulation Crosslinked polyethylene (XLPE)
Nominal cross section conductor 16
Certified for shipboard application no
Low smoke according to EN IEC 61034-2 yes
Core identification according to HD 308 S2 yes
Low temperature resistant according to EN 60811-504+505+506 no

Documents

Datasheet for 6242B

6242B.pdf

Open
