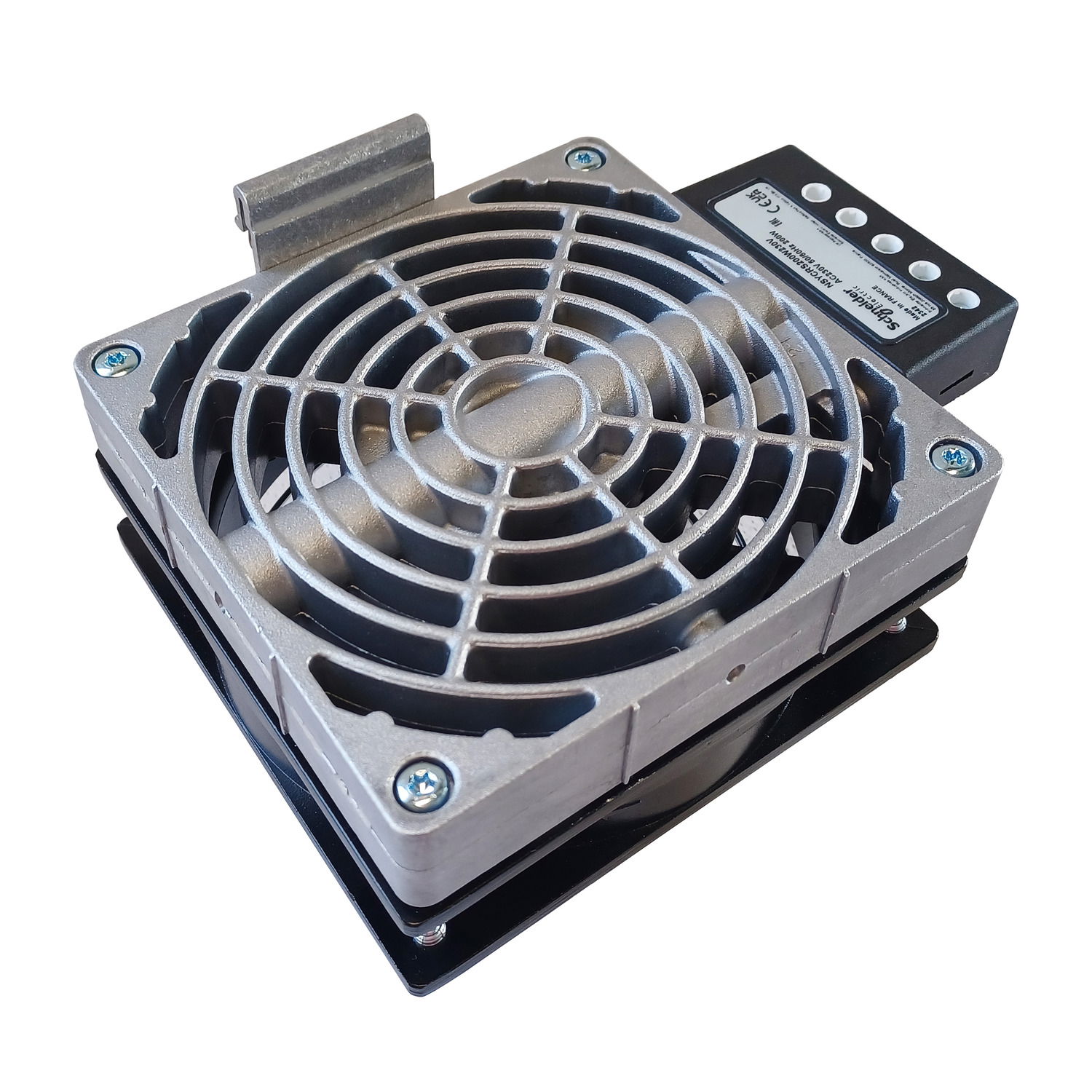

ClimaSys heating resistance 200W, 230V aluminium slim

Link copied
SKU
EAN
GTIN
MPN

ClimaSys heating resistance 200W, 230V aluminium slim by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £347.50 to £350.98 excl. VAT. Voltimum+ members earn 43 points per unit.

"Resistance heater with fan 200W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body" "Fixing by clips in vertical operating position" The product width is 80mm, height is 140mm and depth is 20mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification "This product is qualified as a green premium, with minimal use of hazardous substances"

Voltimum+ Loyalty Programme Loyalty points: 43

Price range: £ 347.50 - £ 350.98 Excl. VAT

Specifications

Depth 20 mm
Width 80 mm
Height 140 mm
With fan yes
Rated power 200 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no

Documents

Declaration of Conformity (Sustainability)

NSYCRS200W230V REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSULATED HEATERS INSTRUCTIONS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYCRS200W230V EU RoHS Directive

Open

Declaration of conformity

DoC_UE_Climasys_Heaters

Open

Environmental Disclosure

ClimaSys Resistance heater

Open
