| With recipes |
- |
| Built-in depth |
53.9 mm |
| Colour display |
yes |
| IO link master |
no |
| Screen diagonal |
4 inch |
| Type of display |
TFT |
| Touch technology |
Resistive touch |
| Power consumption |
7.8 W |
| Supply voltage DC |
|
| Radio standard GSM |
no |

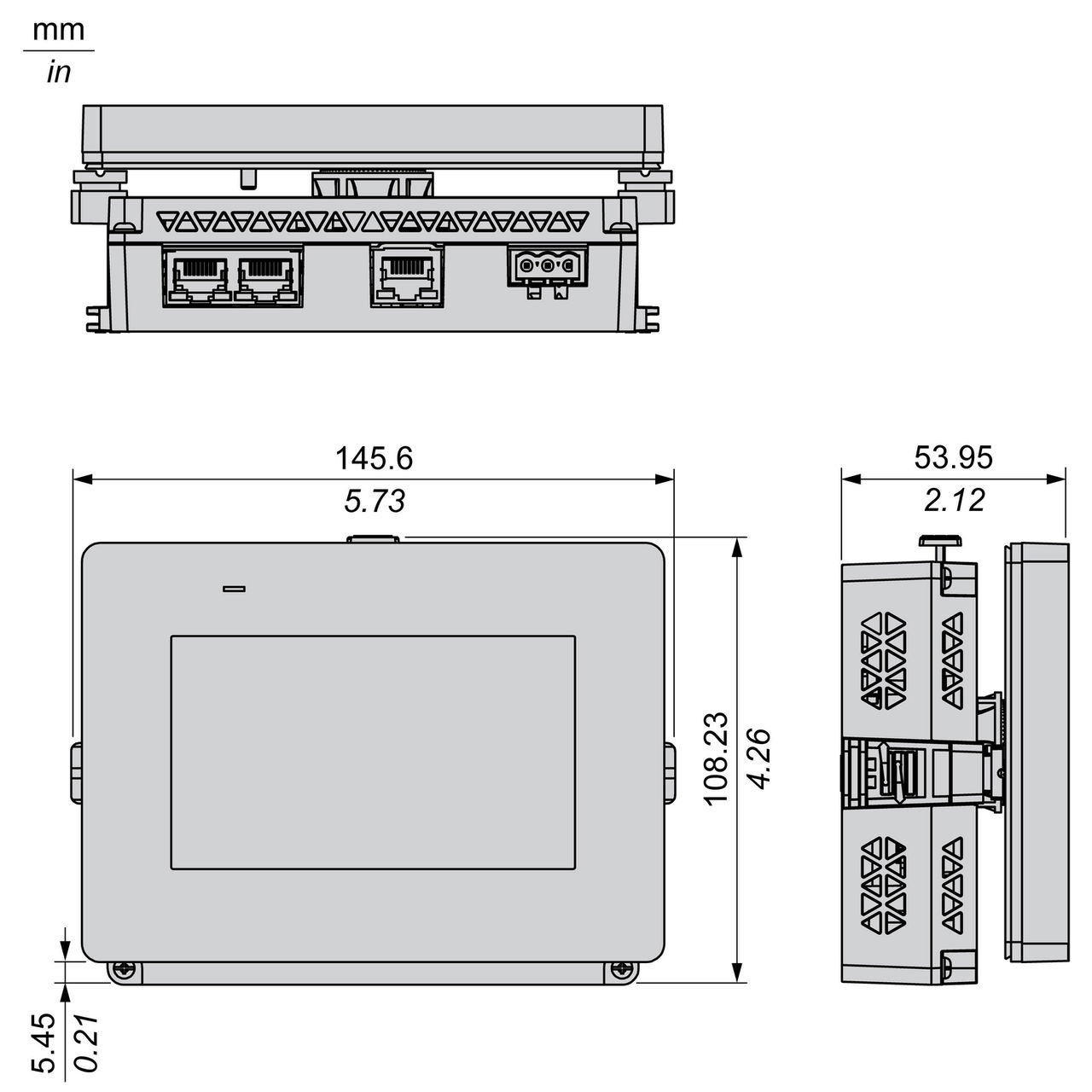

| Width of the front |
145.6 mm |
| With SW interfaces |
yes |
| Height of the front |
108.2 mm |
| Radio standard GPRS |
no |
| Radio standard UMTS |
no |
| With printer output |
- |
| Operating temperature |
|
| With numeric keyboard |
no |
| Supply voltage AC 50 Hz |
|
| Supply voltage AC 60 Hz |
|
| With message indication |
- |
| Number of system buttons |
0 |
| Radio standard Bluetooth |
no |
| Number of password levels |
- |
| Number of buttons with LED |
0 |
| Number of online languages |
- |
| Number of pixels, vertical |
272 |
| Radio standard WLAN 802.11 |
no |
| Suitable for rail mounting |
no |
| Number of HW-interfaces USB |
2 |
| Supporting protocol for ASI |
no |
| Supporting protocol for CAN |
no |
| Supporting protocol for KNX |
no |
| Supporting protocol for LON |
no |
| With alpha numeric keyboard |
no |
| Number of pixels, horizontal |
480 |
| Number of HW-interfaces other |
0 |
| Number of interfaces PROFINET |
0 |
| Suitable for safety functions |
no |
| Voltage type (supply voltage) |
DC |
| Wall mounting/direct mounting |
no |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Supporting protocol for Modbus |
yes |
| Supporting protocol for SERCOS |
no |
| Supporting protocol for TCP/IP |
no |
| Supporting protocol for SUCONET |
no |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces wireless |
0 |
| Number of colours of the display |
16000000 |
| Supporting protocol for EtherCAT |
no |
| Supporting protocol for INTERBUS |
no |
| Supporting protocol for PROFIBUS |
no |
| Supporting protocol for DeviceNet |
no |
| Supporting protocol for PROFIsafe |
no |
| Useful project memory/user memory |
1000 kByte |
| Number of HW-interfaces serial TTY |
0 |
| Supporting protocol for EtherNet/IP |
yes |
| Supporting protocol for PROFINET IO |
no |
| Supporting protocol for SafetyBUS p |
no |
| Supporting protocol for Data-Highway |
no |
| Supporting protocol for PROFINET CBA |
no |
| Degree of protection (IP), front side |
IP67 |
| Process default value (input) possible |
- |
| Degree of protection (NEMA), front side |
- |
| Supporting protocol for INTERBUS-Safety |
no |
| Additional software components, loadable |
- |
| Number of function buttons, programmable |
0 |
| Supporting protocol for DeviceNet Safety |
no |
| Supporting protocol for other bus systems |
no |
| Certified for UL hazardous location class I |
no |
| Number of HW-interfaces industrial Ethernet |
0 |
| Supporting protocol for Foundation Fieldbus |
no |
| Certified for UL hazardous location class II |
no |
| Number of grey-scales/blue-scales of display |
- |
| Certified for UL hazardous location class III |
no |
| Certified for UL hazardous location division 1 |
no |
| Certified for UL hazardous location division 2 |
no |
| Process value representation (output) possible |
- |
| Supporting protocol for AS-Interface Safety at Work |
no |
| With message system (incl. buffer and confirmation) |
no |
| Certified for UL hazardous location group D (propane) |
no |
| Certified for UL hazardous location group B (hydrogen) |
no |
| Certified for UL hazardous location group C (ethylene) |
no |
| Certified for UL hazardous location group A (acetylene) |
no |
| Certified for UL hazardous location group E (metal dusts) |
no |
| Certified for UL hazardous location group F (carbonaceous dusts) |
no |
| Certified for UL hazardous location group G (non-conductive dusts) |
no |
