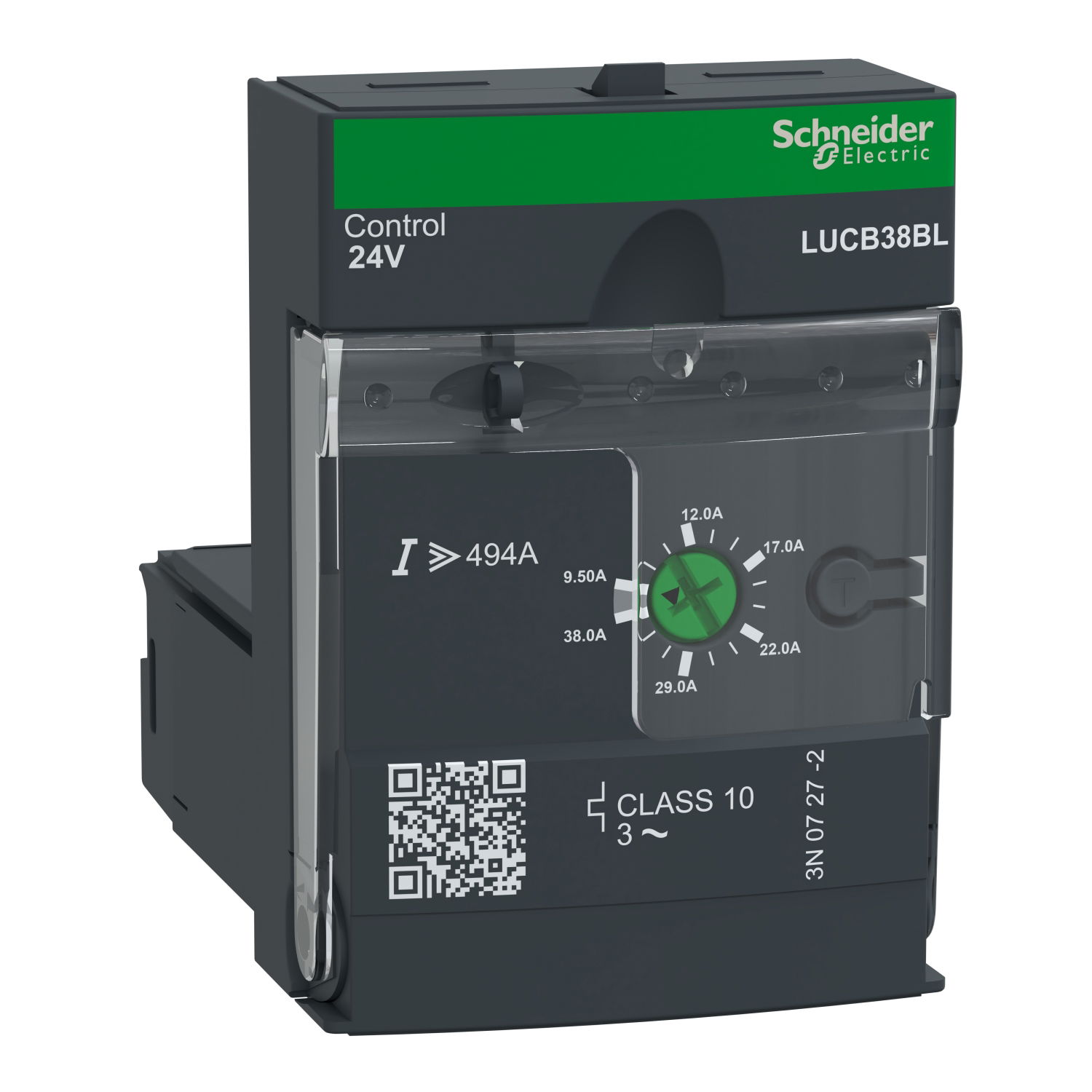

Advanced control unit, TeSys U, 9.5-38A, 3P motors, protection & diagnostic, class 10, coil 24V DC

Advanced control unit, TeSys U, 9.5-38A, 3P motors, protection & diagnostic, class 10, coil 24V DC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including BPX Electro Mechanical Co. Ltd, and currently in stock. Trade price £130.28 excl. VAT. Voltimum+ members earn 26 points per unit.

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides full protection to motors with a rated current Ir 9.5-38A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCB38BL
EAN: 3606481493729
GTIN: 3606481493729
MPN: LUCB38BL

Voltimum+ Loyalty Programme Loyalty points: 26

Price: £ 130.28 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM group

Low-voltage industrial components

Specifications

Depth 60 mm
Width 45 mm
Height 66 mm
Number of poles 3
Supply voltage DC
Operating voltage DC
Rated switch current -
Supply voltage AC 50 Hz
Type of motor protection Electronic release
Operating voltage AC 60 Hz
Voltage type (supply voltage) DC
Short-circuit release function Undelayed
Voltage type (operating voltage) AC
Current setting delayed short-circuit release
Number of auxiliary contacts as change-over contact -
Number of auxiliary contacts as normally closed contact -

Documents

Declaration of Conformity (Sustainability)

LUCB38BL REACh Regulation

Open

Instruction sheet

TeSys Ultra - LUB Power Base + LUCA/LUCB/LUCC/LUCD Control Units - Instruction Sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LUCB38BL EU RoHS Directive

Open

Declaration of conformity

PP_EUdec__EU1007946-1-TeSysU-LUB

Open

Environmental Disclosure

TeSys Ultra Non reversing power base + Control unit - Product Environmental Profile

Open

Circularity Profile

TeSys Ultra Non reversing power base + Control unit - End of Life Instructions

Open
