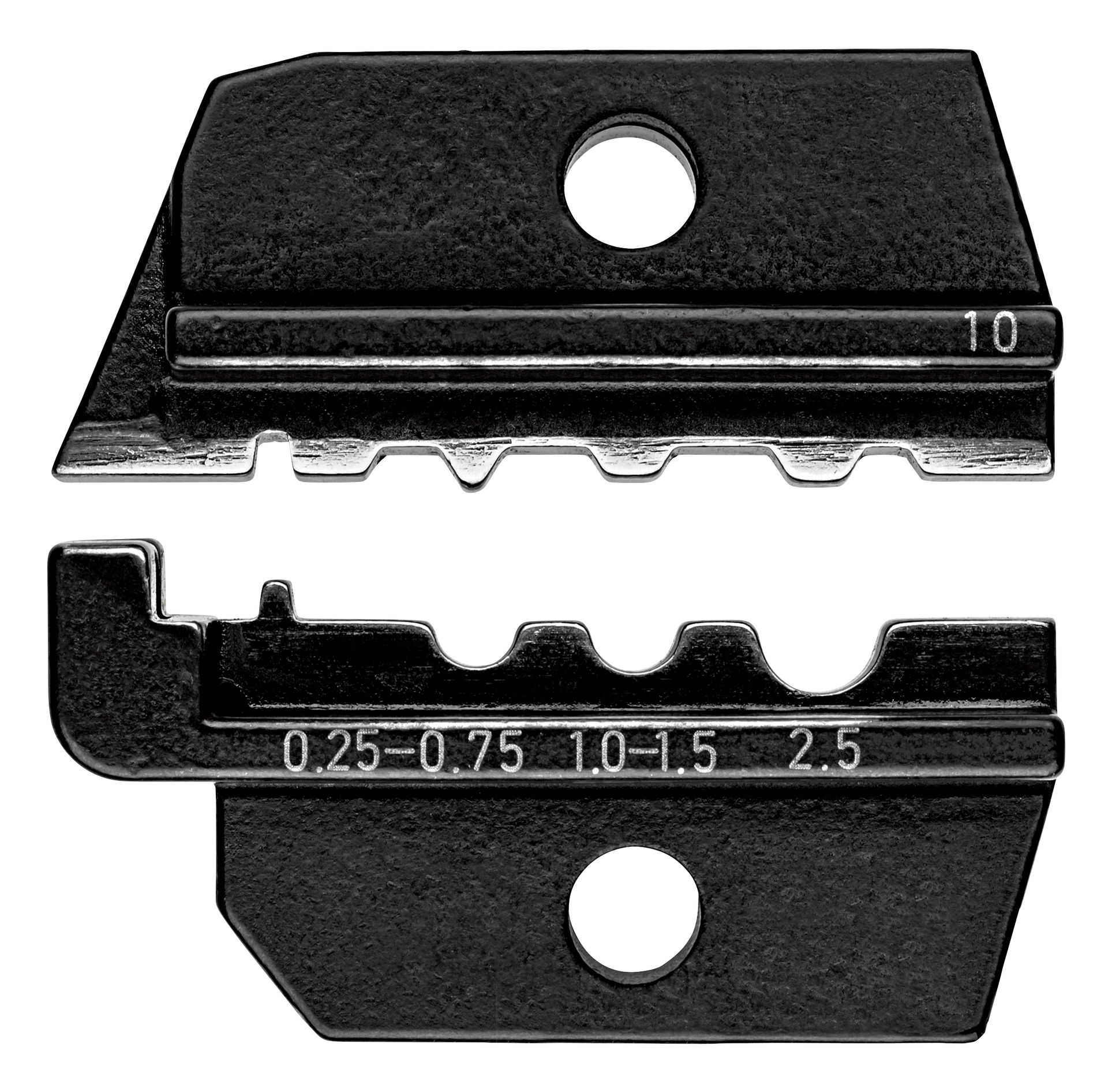

KNIPEX 97 49 10 Crimping die for non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341
KNIPEX 97 49 10 Crimping die for non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341
KNIPEX 97 49 10 Crimping die for non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341 by KNIPEX is listed by 1 electrical wholesaler on Voltimum UK, including Farnell, and currently in stock. Trade price £72.29 excl. VAT.
97 49 10 Crimping die Application: non-insulated tubular cable lugs and crimp terminals in accordance with DIN 46237 and non-insulated butt and crimp connectors in accordance with DIN 46341 0.75 / 1.5 / 2.5 mm². - Application: for non-insulated cable connectors- Capacity in square millimetres: 0.25 — 2.5mm²- AWG: 24 — 14
Product identifiers
SKU: 97 49 10
EAN: 4003773076896
GTIN: 4003773076896
Price: £ 72.29 Excl. VAT
Specifications
| AWG | 24 - 14 |
| RoHs | not applicable |
| Reach | does not contain SVHC |
| Width | 12 mm |
| Height | 32 mm |
| Length | 32 mm |
| Weight | 37 g |
| Profile | Mandrel-Crimp |
